e3s AC Charger (LiPo 2-3S - 20W)
More info

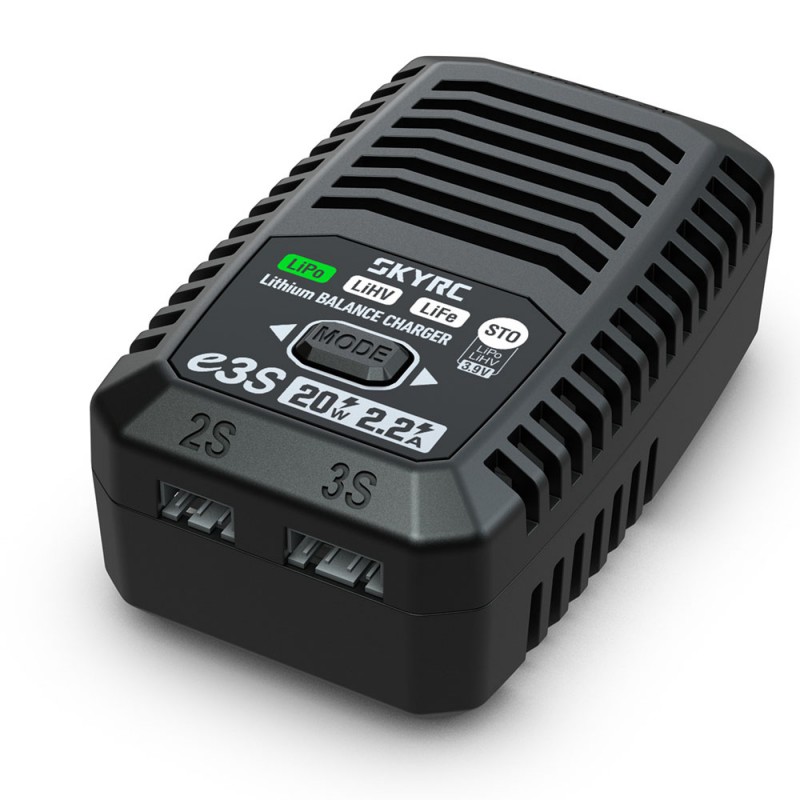

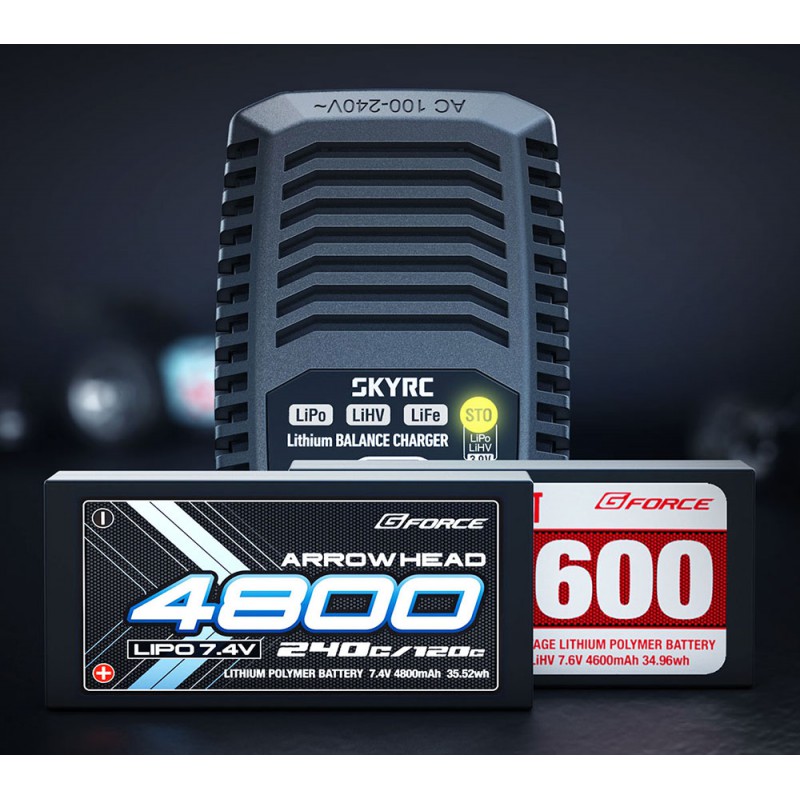

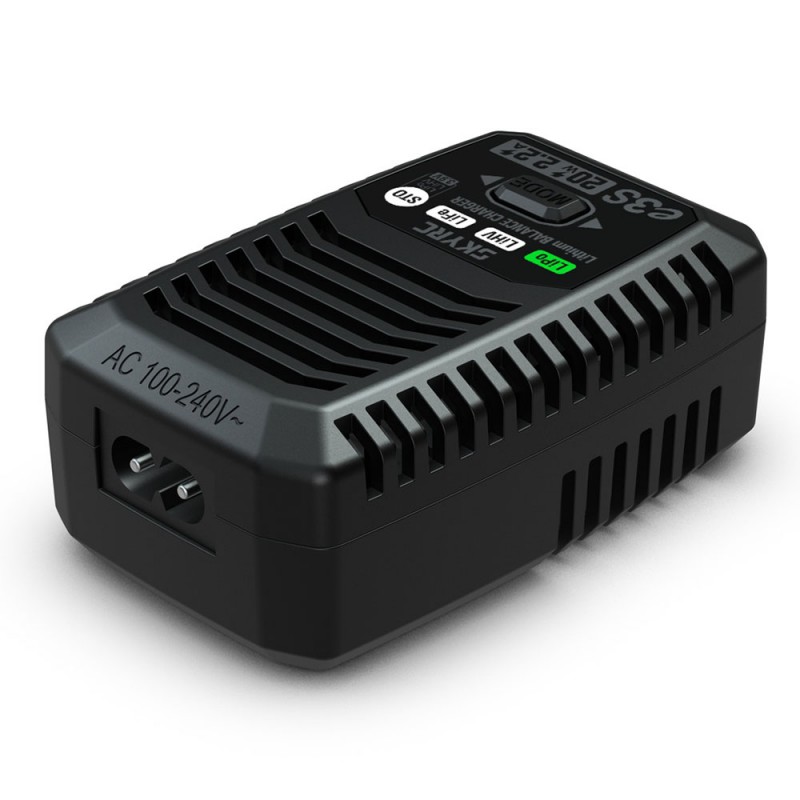

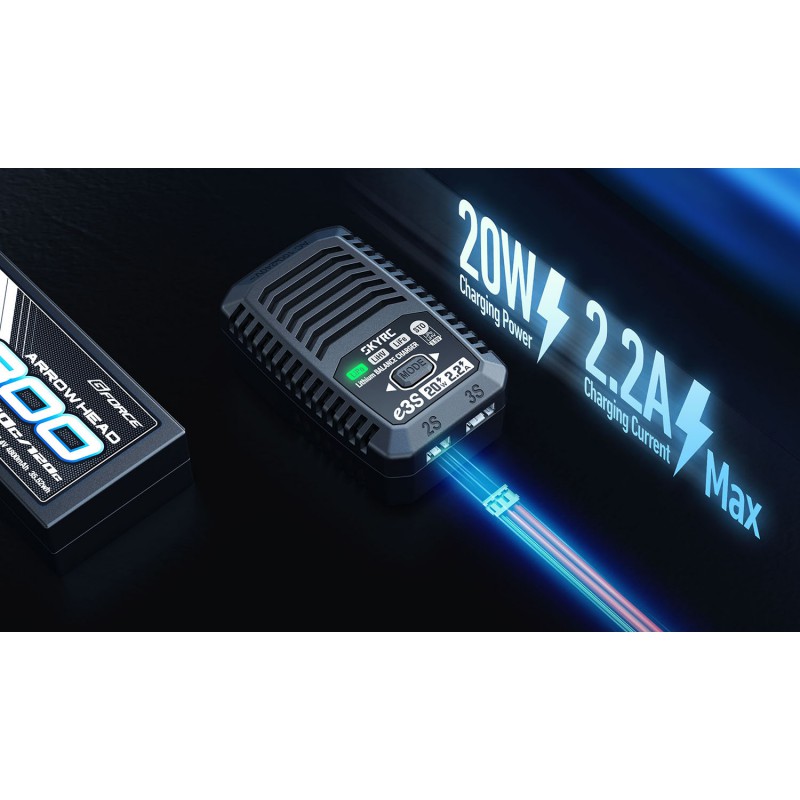

The e3S is an easy-to-operate charger specifically designed for 2-3S lithium batteries.
Caution : DO NOT connect both 2-cell and 3-cell batteries at the same time, as it may damage the charger.
The ED indicate the charge status : :
| Status | Charging Status |
| Red and Green Alternating Flashing | Standby |
| Pulsing Green | Charging |
| Green Solid Light | Charging Complété |
| Pulsing Yellow | Storage Mode in Progress |
| Yellow Solid Light | Storage Complété |
The e3S charger is only suitable for lithium-ion battery packs. Do not attempt to charge any battery types not
listed in this manual, to prevent the risk of fire.
| Input | AC 100V-240V 50/60HZ |
| Input Power | 25W ±10% |
| Battery Type | LiPo / LiHV / LiFe |
| Cells | 2S, 3S |
| Charging Power | 20W ±2W |
| Charging Current | 2S: 2.20A±10% (non-adjustable) |
| 3S: 1.60A±10% (non-adjustable) | |
| Storage Mode | LiPo / LiHV |
| Balancing Current | 300mA MAX |
| Discharge Power | 2W |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 5% to 75% RH (non-condensing) |
| Storage Temperature | -10°C to 70°C |
| Storage Humidity | 5% to 75% RH (non-condensing) |
| Dimensions | 92 x 58 x 36 mm |
| Weight | Approx. 104g |
- Manufacturer : SkyRC
