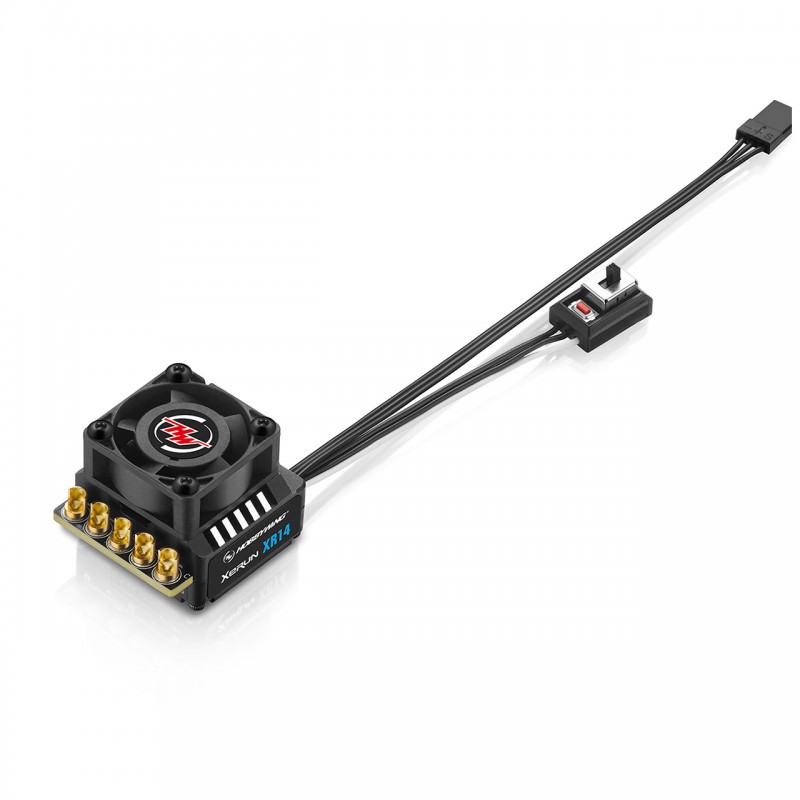

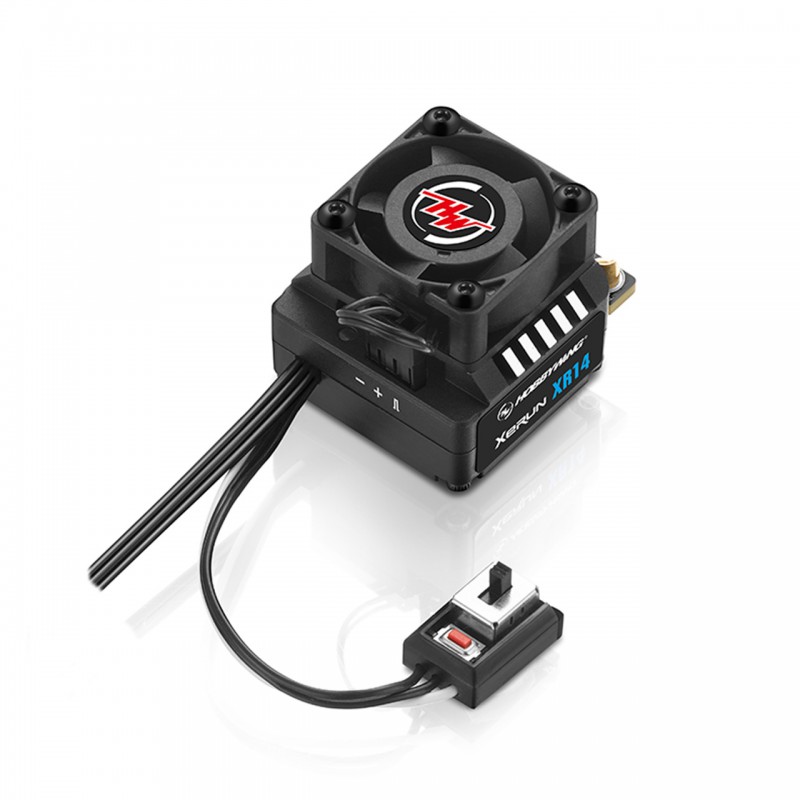

XeRun XR14


Built for Competition
An all-round competition-grade ESC, meticulously designed with advanced software to deliver peak performance for both 1/14th on-road and off-road vehicles.
High power output, excellent cooling
  • The maximum continuous output current of the ESC is  as high as 70A
  • The full-metal heat sink top ensures efficient heat dissipation, keeping the  ESC within safe operating  temperature, even during intense use.
Built-in reverse polarity protection circuit
Built-in reverse polarity protection prevents damage from incorrect battery connection, safeguarding your ESC from potential issues caused by reverse battery polarity.
Note: The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
High-Voltage Servo Support with Built-in BEC
  • Equipped with a built-in switch mode BEC.
  • A maximum continuous current of 4A
  • A peak of 8A
  • Switchable output voltages of 6V/7.4V
  • This ensures ample power supply to high-torque, high-voltage servos.

Data Logging for  Performance Monitoring

  • The ESC features a built-in data logging function that tracks  critical data such as minimum voltage, maximum current,  RPM, ESC temperature, and motor temperature.
  • By connecting the ESC to the OTA Bluetooth module and the HW Link mobile app, users can monitor real-time data including throttle position, voltage, current, temperature, and RPM. The built-in memory in the OTA module allows data storage for post-race analysis through the app, enabling fine-tuning and detailed insights.
Note: Bluetooth effective range is approximately 5 meters.
Extensive Parameter  Adjustments
The ESC offers 26 adjustable parameters, including PWM frequency, softening, initial throttle response, and Boost/Turbo timing. This provides precise control over power delivery, enhancing the driving experience with fine-tuned customization.
Dual  application modes
Designed with two pre-set modes, 1/14th On-Road and 1/14th Off-Road, this ESC is ready to race out of the box.
Versatile Compatibility
While optimized for 1/14th Blinky and Boost racing, this ESC  is also compatible with 1/10th Blinky competitions, offering flexibility across different racing formatsWhile optimized for 1/14th Blinky and Boost racing, this ESC  is also compatible with 1/10th Blinky competitions, offering flexibility across different racing formats

Specifications
Product Name XERUN XR14
Product Number 30112622
Type Scale 1/14th、1/12th、 1/10th
Brushed/Brushless Brushless
Sensored/Sensorless Sensored
Waterproof NO
Specifications Cont./Peak Current 70A/300A
Input Voltage 2S Lipo
BEC BEC Output Switch Mode 6V/7.4V @4A
Wires & Connectors Input Wires Black-10AWG-200mm*1 Black-14AWG-175mm*2
Output Wires Black-14AWG-175mm*3
Input Connectors No
Output Connectors No
ESC Programing via SET Button on ESC Not Supported
LED Program Box Not Supported
LCD G2 Program Box Supported
LCD PRO Supported
OTA Programmer Supported
Program Port Shared with Fan port
Data Recording Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware Firmware Upgrade Supported
Size & Weight Size 35.2*31.3*28.5mm
Weight 66g (Included wires)
Applications Motors Sensored/Sensorless Brushless Motors
Vehicles 1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing(blinky) mode
KV Rating/T Count XERUN 2848
Data sheet
  • Manufacturer : Hobbywing
