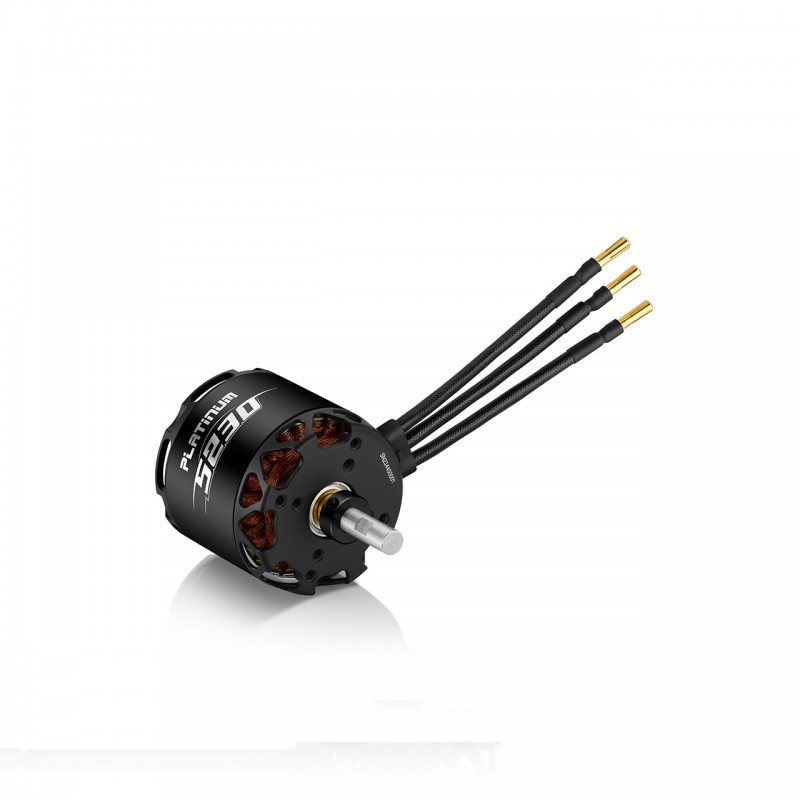

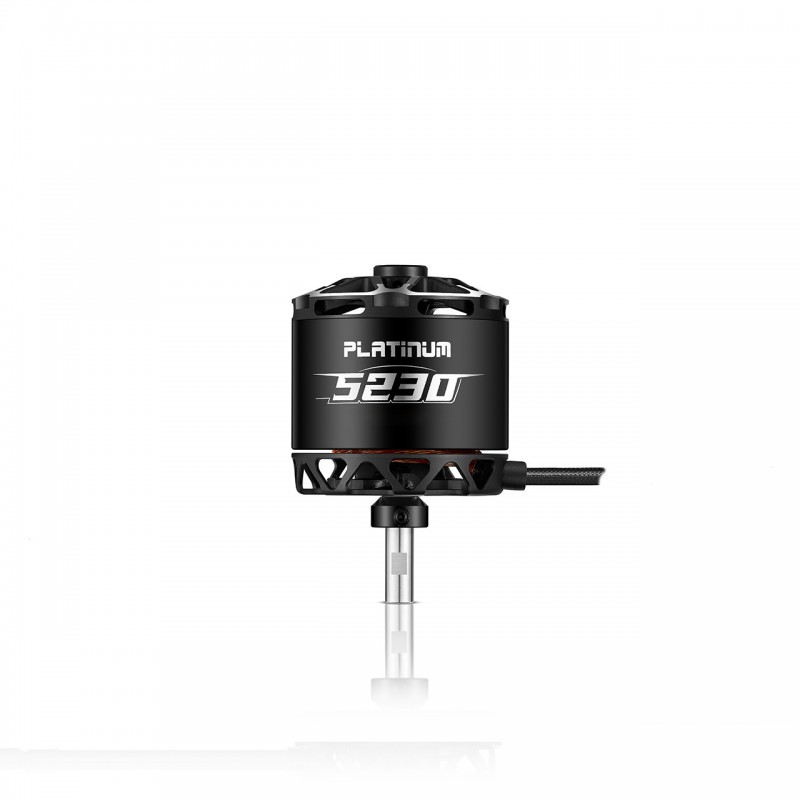

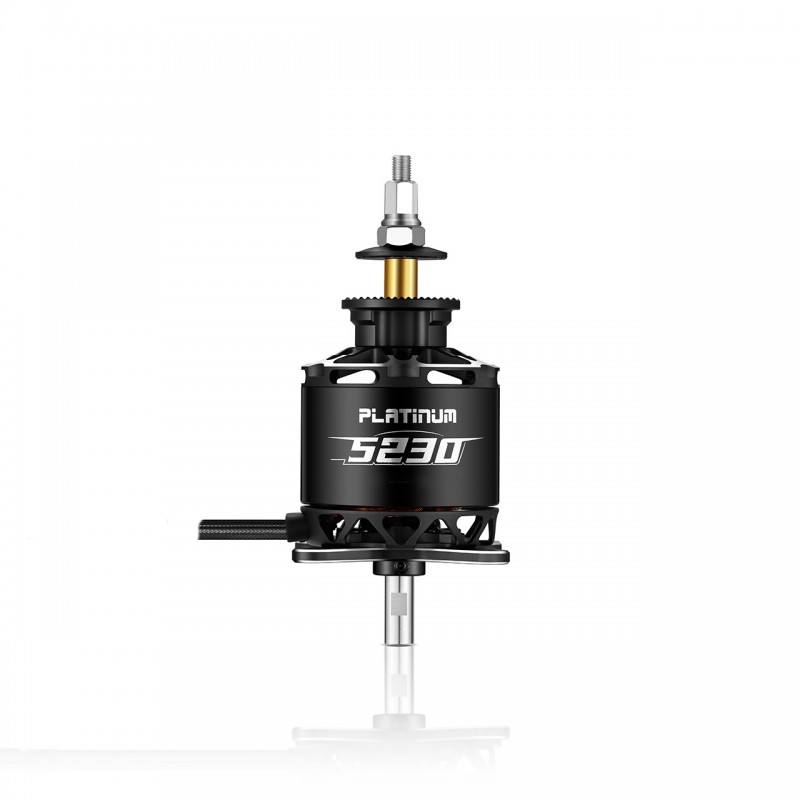

Platinum Motor 60x94 8mm 5230SL 220kV 10-12s Lipo
On order & available within +/- 9 days
More info
Hobbywing 52 Series brushless motor for fixed wing aircraft
| Model | Platinum 5230SL 220KV | |||
| Specifications | Product Number | 30416201 | ||
| Motor Size | Φ60.2 *93.5mm | |||
| Stator Size | Φ51.7*t30 | |||
| Stator process | High standard silicon steel sheet, 180℃ high temperature resistance paint-coat | |||
| Enamelled wire | 200℃ | |||
| Fiber Screw Thread | Φ22mm-3*M4 | |||
| Screw Diameter/Thread | Φ30mm-4*M4;Φ44mm-4*M4 | |||
| Slot& Pole | 24N28P | |||
| Dynamic balance | ≤10mg | |||
| Bearing | 1560ZZ，698ZZ | |||
| Motor axle diameter | 8mm | |||
| Isolation test | 500V AC high voltage resistance test | |||
| KV | 220 | |||
| Battery(LiPo) | LiPo-10~12S | |||
| No-load current | 3.7A/44.4V | |||
| Maximum current (Non-hermetic Ambient Temperature ≤ 25℃） | 122.3A/45s | |||
| Max power | 5423W/45s | |||
| Max thrust | 14.34kg | |||
| Resistance | 17.2mΩ | |||
| Wire Size | Enamelled Wire Output | |||
| Wire length | 100mm | |||
| Weight（With wire） | 579g | |||
| Recommended Props/ESCs | Recommended ESC | PLATINUM 130A V4 PLATINUM 180A V5 | ||
| Propeller | 10S：20x10E，22x10E 12S：18x10E，19x10E，20x10E | |||
- Manufacturer : Hobbywing
