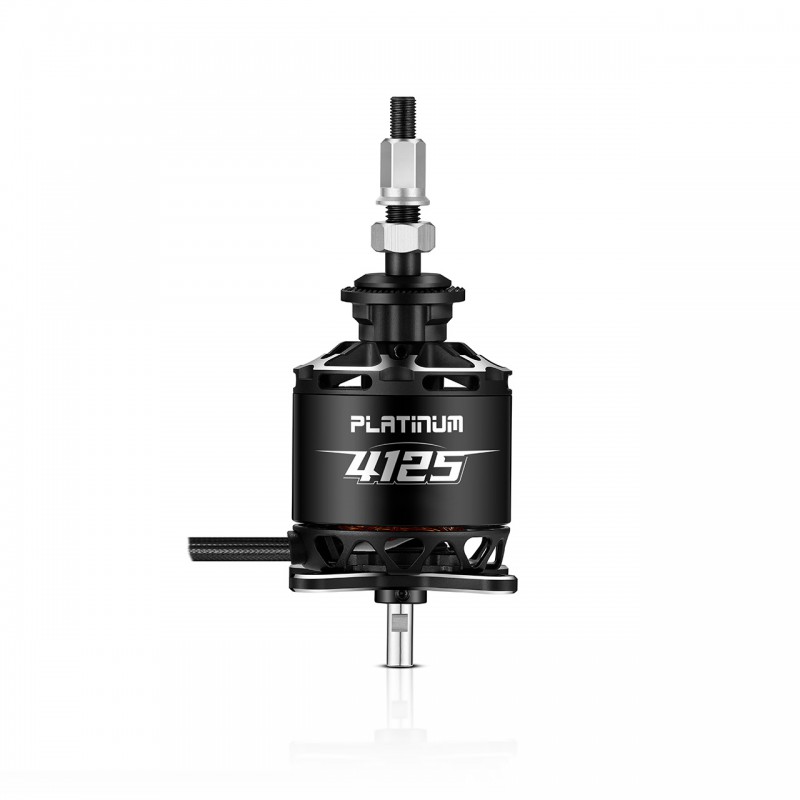

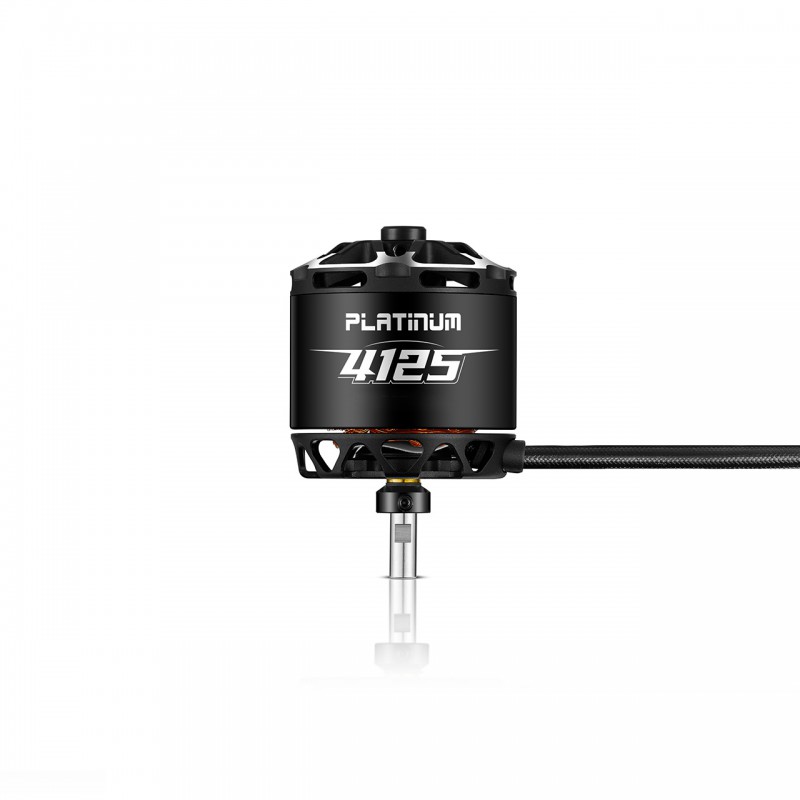

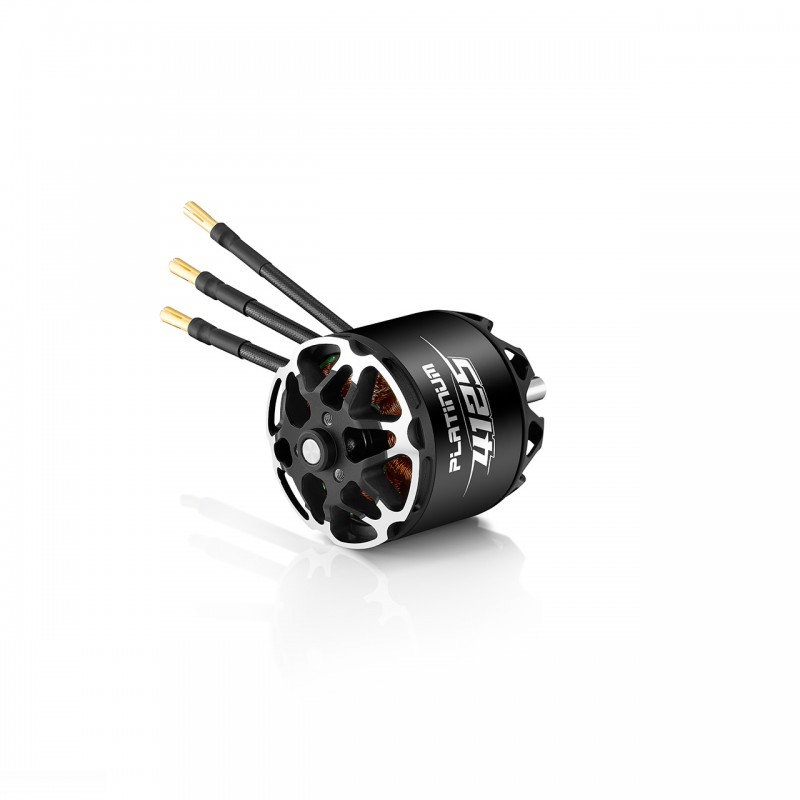

Platinum Motor 50x52 6mm 4125SL 250kV 12s Lipo
This product is not in stock. Addition to the backorder possible.
More info
Hobbywing 41 Series brushless motor for fixed wing aircraft
| Model | - | Platinum 4125SL 250KV |
| Specifications | Product Number | 30416050 |
| Motor Size | Φ49.5 *77.3mm | |
| Stator Size | Φ40.6*25mm | |
| Stator process | High standard silicon steel sheet,180℃ high temperature resistance paint-coat | |
| Enamelled wire | 200℃ | |
| Props mounting dimensions | Φ15mm-3*M3 | |
| Motor mounting dimensions | Φ30mm-4*M4 | |
| Slot& Pole | 12N14P | |
| Dynamic balance | ≤10mg | |
| Bearing | 696ZZ | |
| Motor axle diameter | Φ6mm | |
| Isolation test | 500V AC high voltage resistance test | |
| Specification | KV | 250 |
| Battery(LiPo) | LiPo-12S | |
| No-load current | 1.5A/44.4V | |
| Maximum current (Non-hermetic Ambient Temperature ≤ 25℃） | 60.4A/49s | |
| Max power | 2681W/49s | |
| Max thrust | 8.25kg | |
| Resistance | 47mΩ | |
| Wire Size | Enamelled Wire Output | |
| Wire length | 90mm | |
| Weight（With wire） | 363g | |
| Recommended Props/ESCs | Recommended ESC | PLATINUM 130A V4 |
| PLATINUM 180A V5 | ||
| Propeller | 12S：15X6E，15X8E | |
| 16X6E，16X8E |
- Manufacturer : Hobbywing
