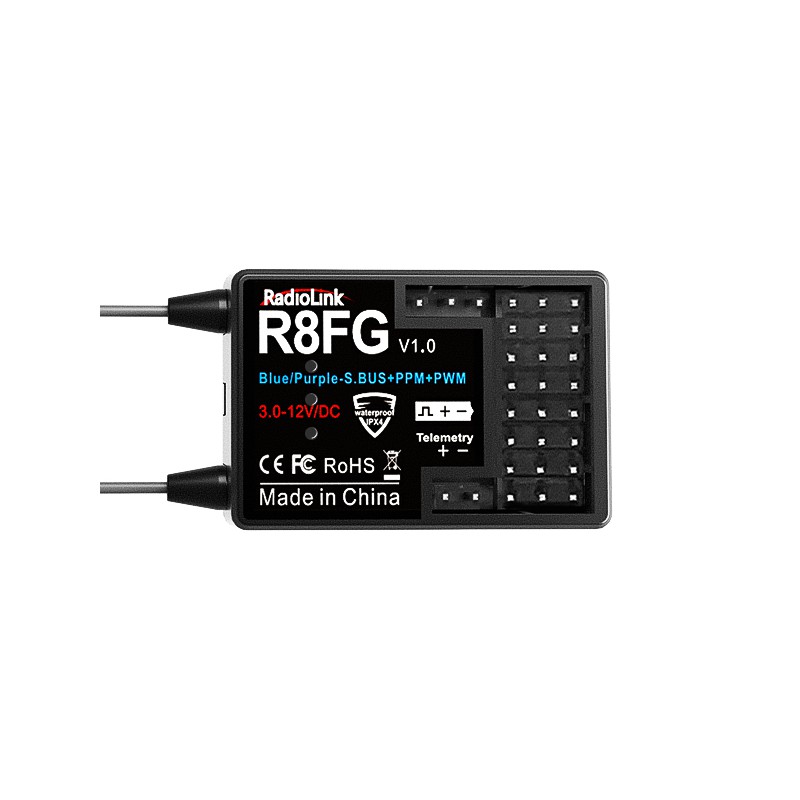

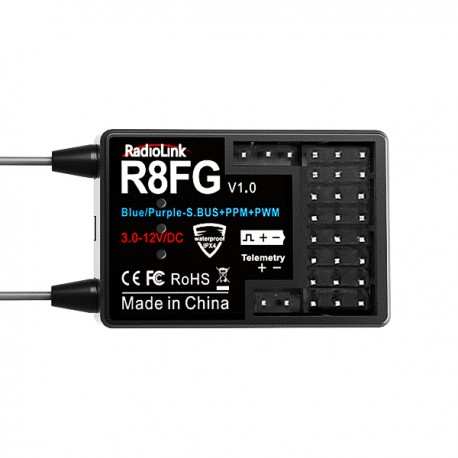

> R8FG 2.4Ghz 8Ch gyro integrated Receiver for RC8X, RC4GS, RC6GS, etc
R8FG 2.4Ghz 8Ch gyro integrated Receiver for RC8X, RC4GS, RC6GS, etc View larger

R8FG 2.4Ghz 8Ch gyro integrated Receiver for RC8X, RC4GS, RC6GS, etc

RADR8FG

Radiolink

8 channel dual antenna receiver

More details

Out of stock This product is not in stock. Addition to the backorder possible.

Ordered from supplier, delivery time unknown.

29,89 €


More info

can be set in a multiplicity of vehicle

Subsidiary ID

rescue, Towing, parent-child entertainment and friend teaching in one control

Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boat

PWM, SBUS and PPM signal supported

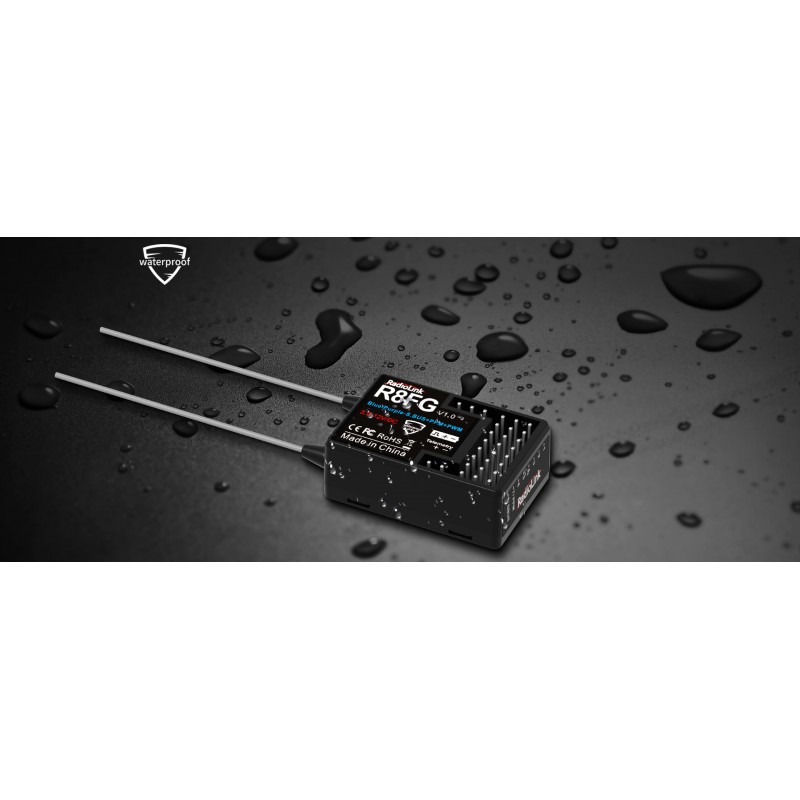

The PCB board and pins of R8FG have the same waterproof tratment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4

The integrate high-performance gyro adopts the software filter and PID algorithm, timely and precisely corrects the sensitivity and improves the stability.

Wide transmitters compatible

Specifications

Dimensions:

L*W*H =35*20*13mm (1.38” *0.79” *0.51”)

Antenna length:

205mm (8.07”)

Weight:

10.5g(0.37oz)

Operating voltage:

3-12V

Operating current:

35mA(5V)

Channel:

8 channels

Signals:

SBUS&PPM&PWM

Telemetry:

Real-time built-in telemetry of model battery voltage, RSSI, and receiver voltage

Gyro:

Receiver with gyro integrated, customizable gyro sensitivity

Water splash proof:

The waterproof grade is IPX4

Applicable model type:

Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot

Frequencies band:

2.4GHz ISM band (2400MHz~2483.5MHz)

Spread spectrum mode:

FHSS, 67 channels pseudo random frequency hopping

Control distance:

600 meters

Compatible transmitter:

RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version), RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8FB(OTG)/T8S(BT)/T8S(OTG)
Data sheet
  • Manufacturer : Radiolink
