> Servo T75 Brushless HV CNC aluminium case 60.0kg/0.14sec @7,4V

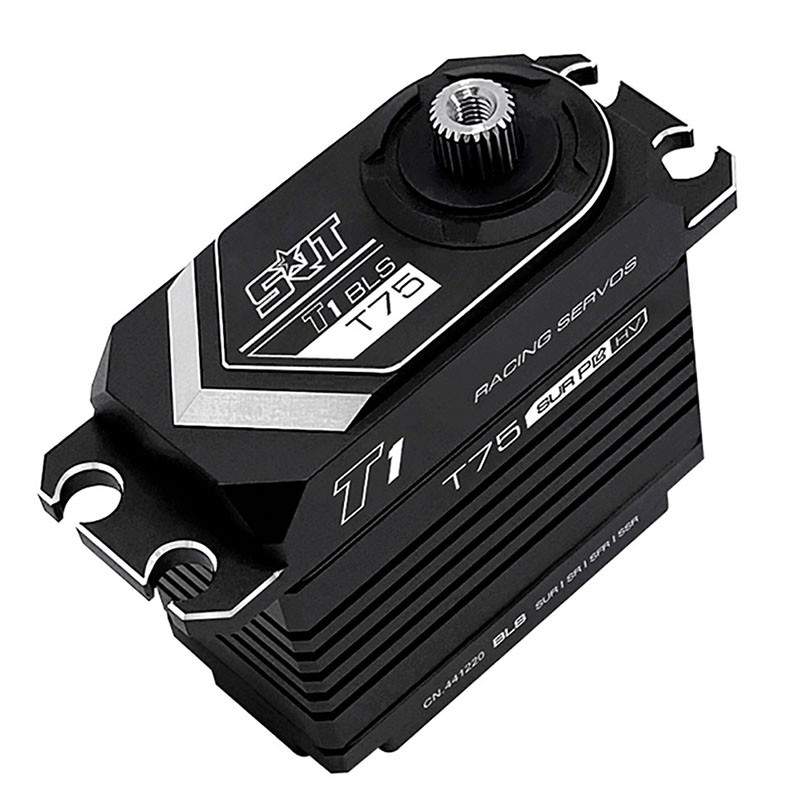

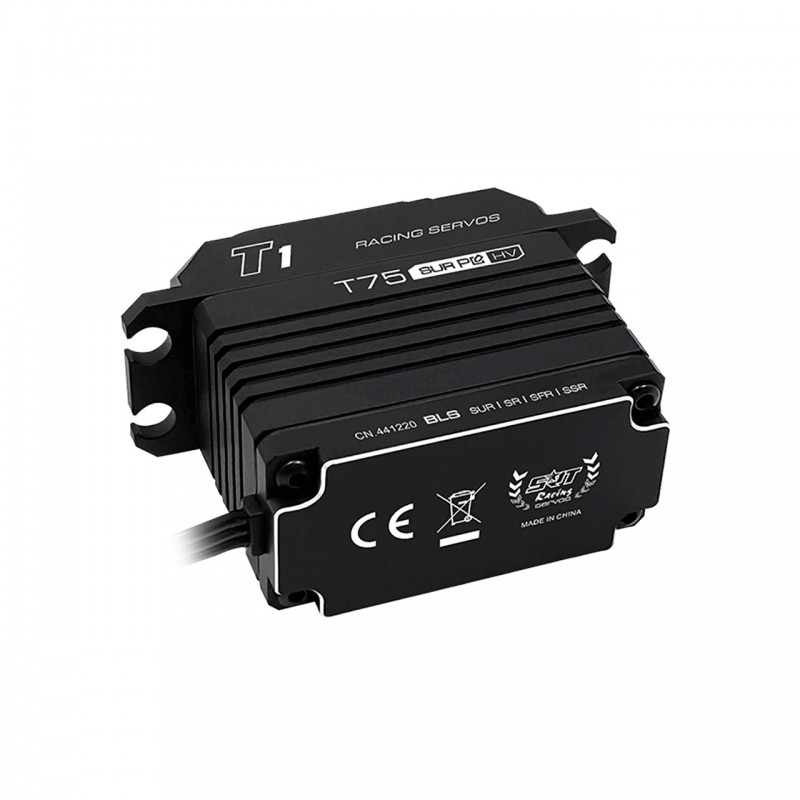

Servo T75 Brushless HV CNC aluminium case 60.0kg/0.14sec @7,4V View larger

Servo T75 Brushless HV CNC aluminium case 60.0kg/0.14sec @7,4V

SRTT75

SRT

SRT T75 servo - HV - 60 kg.cm

More details

In stock This product is in stock

122,99 €


More info

Usage : 1/10 Crawler, 1/8 Crawler

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.


All of SRT servos  are available to be customized for easy installation by OEM order.

Key features
  • Superior Holding Torque
  • Incredible efficiency and low power consumption
  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • Programmable High torque Brushless servo
  • Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
  • 25T output shaft
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications
  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.16 sec/60 degrees at no load
  • operating speed (7.4v): 0.14 sec/60 degrees at no load
  • operating speed (8.4v): 0.12 sec/60 degrees at no load
  • stall torque (6.0v): 55.0kg.cm (763.8 oz/in)
  • stall torque (7.4v): 60.0kg.cm (833.2 oz/in)
  • stall torque (8.4v): 70.0kg.cm (972.1 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
  • weight: 83.0g (2.93 oz)
  • connector wire length: jr 300 mm

Data sheet
  • Manufacturer : SRT
