> Servo Drift D1S Low Profile CNC aluminium case 18.5kg/0.08se

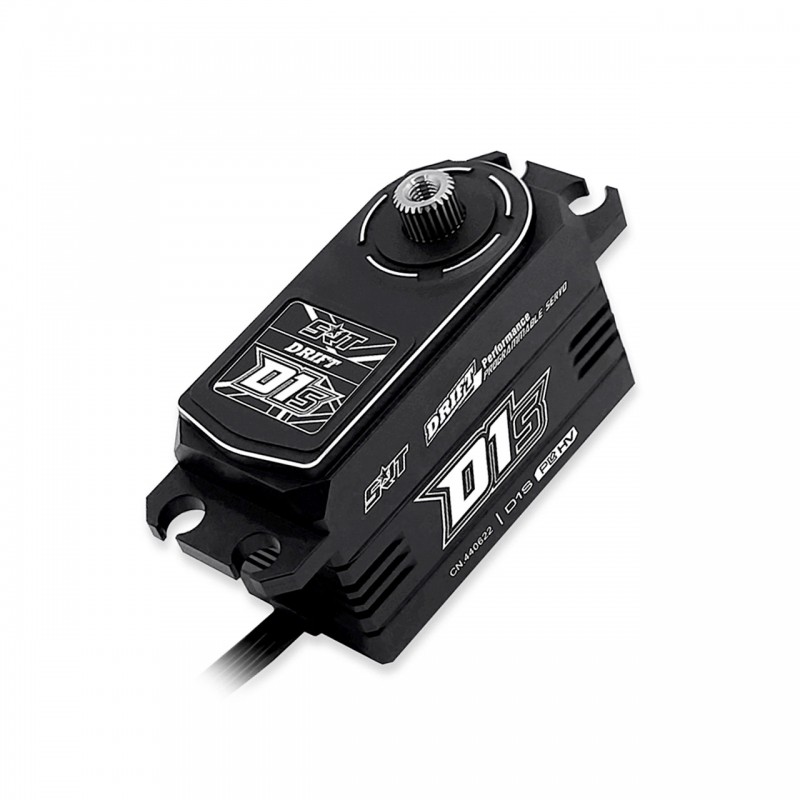

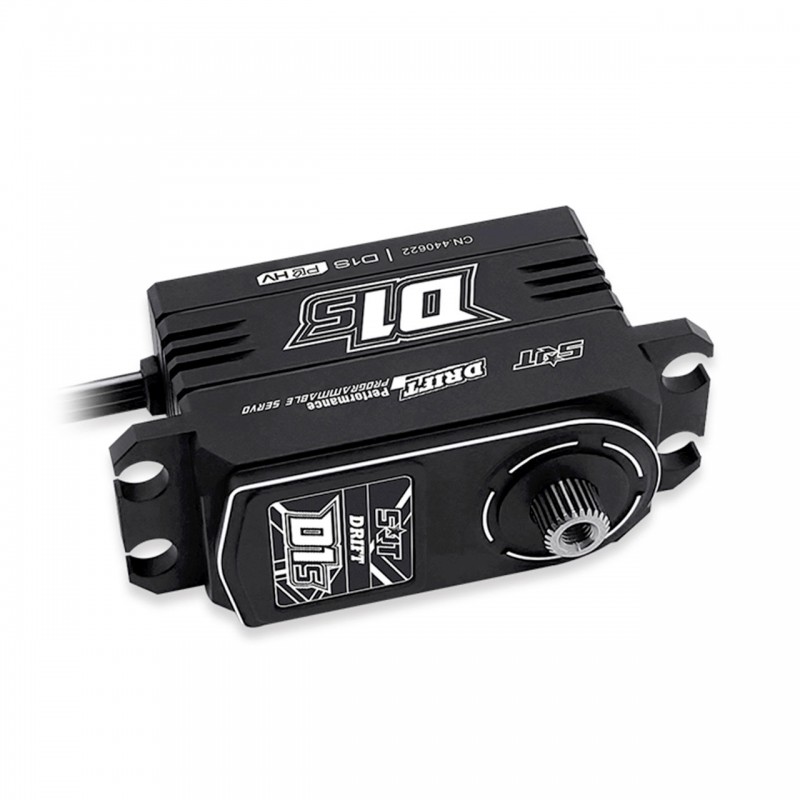

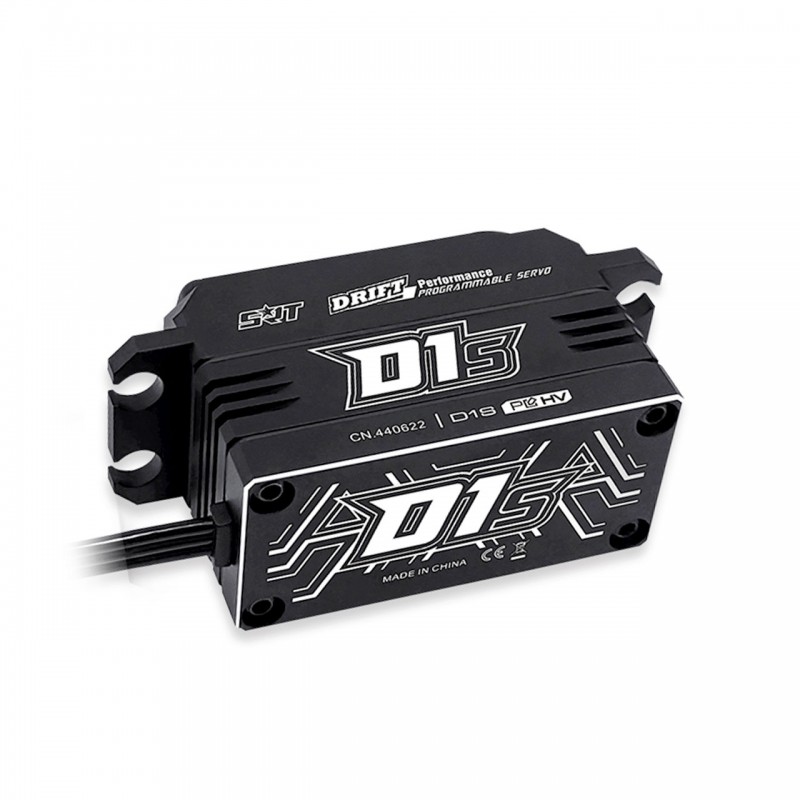

Servo Drift D1S Low Profile CNC aluminium case 18.5kg/0.08se View larger

Servo Drift D1S Low Profile CNC aluminium case 18.5kg/0.08se

SRTD1S

SRT

SRT D1S servo - Low Profile - Special Drift

More details

In stock This product is in stock

82,99 €


More info

Usage : Drift 1/10

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.


All of SRT servos  are available to be customized for easy installation by OEM order.

Key features
  • Ideal for 1/10 drift car applications
  • incredible efficiency and low power consumption
  • Titanium & Steel gears for precision and durability
  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • SSR mode compatible
  • 2 μsec Dead Band
  • Superior Holding Torque
  • 1-Year Limited Warranty
Specifications

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.10 sec/60 degrees at no load
  • operating speed (7.4v): 0.095 sec/60 degrees at no load
  • operating speed (8.4v): 0.08 sec/60 degrees at no load
  • stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
  • stall torque (7.4v): 16.5kg.cm (229.1 oz/in)
  • stall torque (8.4v): 18.5kg.cm (256.9 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 41.0x20.0x27.3 mm /1.61x0.79x1.07 in
  • weight: 58.0g (2.05 oz)
  • connector wire length: jr 80 mm
Data sheet
  • Manufacturer : SRT
