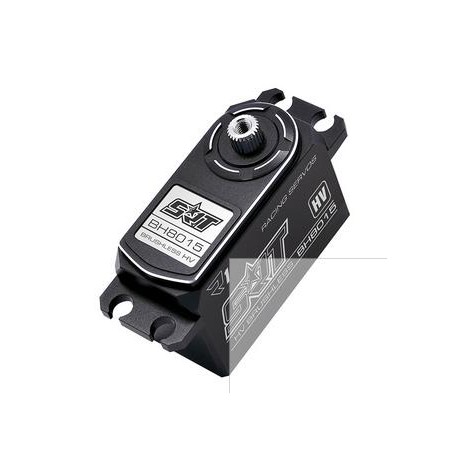

> Servo BH8015 Low Profile Brushless 13.0kg/0.05sec @7.4V
Servo BH8015 Low Profile Brushless 13.0kg/0.05sec @7.4V View larger

Servo BH8015 Low Profile Brushless 13.0kg/0.05sec @7.4V

SRTBH8015

SRT

SRT Servo BH8015 Low Profile Brushless 13.0kg

Out of stock This product is not in stock. Addition to the backorder possible.

99,99 €


More info

Specifications

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless

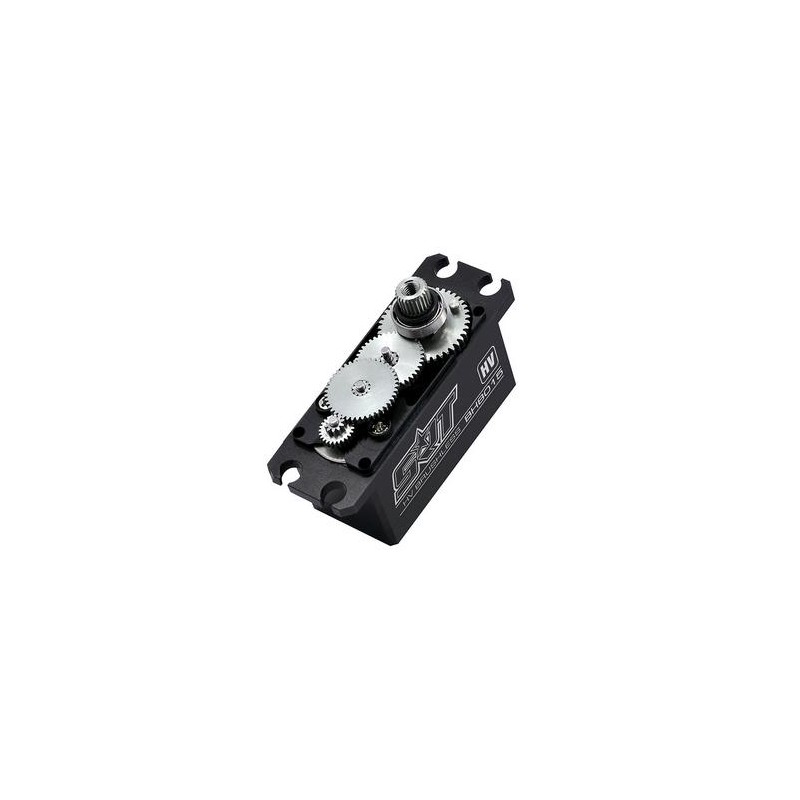

  • Gear Type: Metal
  • Gear Material: Titanium & Alu
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.065 sec/60 degrees at no load
  • operating speed (7.4v): 0.055 sec/60 degrees at no load
  • operating speed (8.4v): 0.050 sec/60 degrees at no load
  • stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
  • stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
  • stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
  • weight: 52.0g (1.83 oz)
  • connector wire length: jr 180 mm

Data sheet
  • Manufacturer : SRT
