DISC.. e4Q Quattro DC charger (LiPo 2-4S up to 5A- 4x50w)

SKY100140

SkyRC

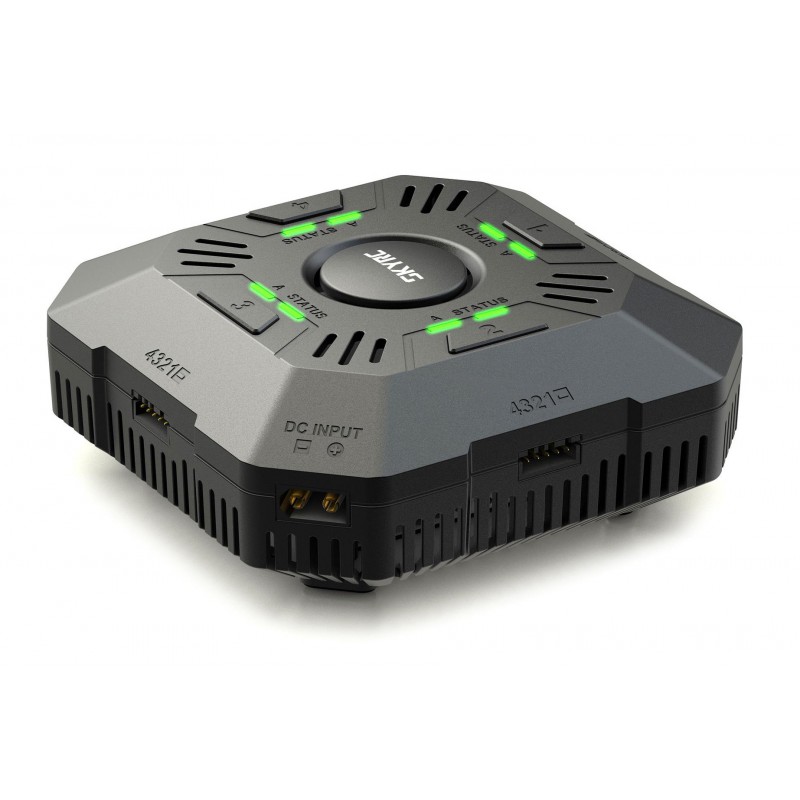

SKYRC e4Q Multi Charger employs the circuit that features four totally independent but identical
power outputs which are powered 50W each. It is designed for charging 2-4 cells LiPo battery.

More details

In stock This product is in stock

80,99 €


More info

SKYRC e4Q Multi Charger employs the circuit that features four totally independent but identical
power outputs which are powered 50W each. It is designed for charging 2-4 cells LiPo battery. Insert
the battery lead to the right connector in each port, the charger will charge 4 batteries at the same
time. And the charging current can be adjusted from 2A/3A/5A by push button, the charging capacity
and charging current can be displayed in the LED Indicators by color variation.

Key features
  • Four independent ports can be used at the same time
  • Adjustable charging current 2A/3A/5A
  • LED and audible sound indicate charging status
  • LED displays charging current and battery capacity by color variation
  • DC power input
  • Efficient ventilation and compact size
  • Maximum protection: short circuit protection; over c urrent protection; battery reverse polarity protection and DC input voltage protection;

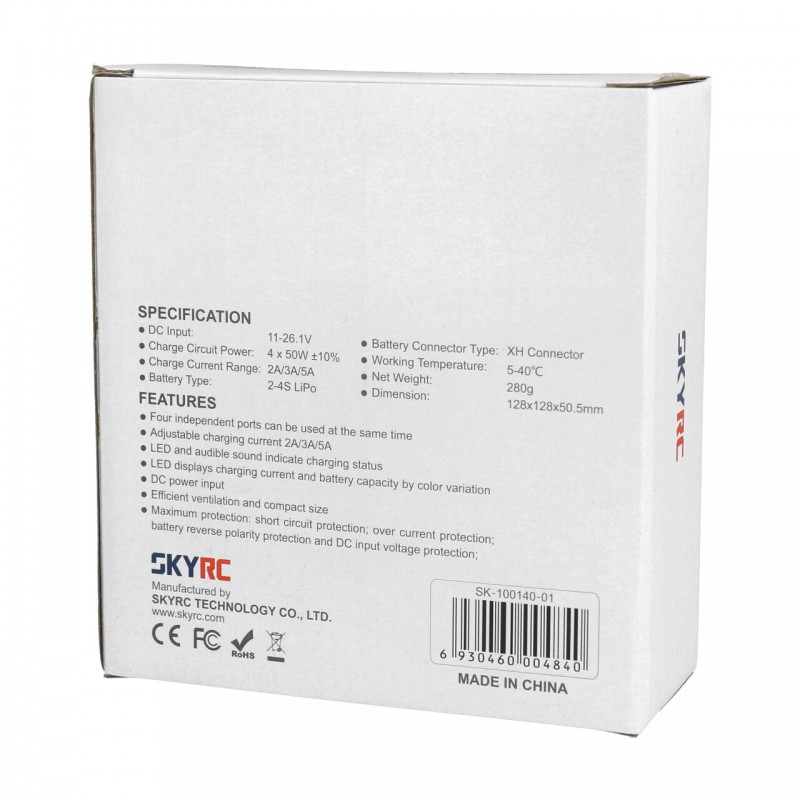

Specifications
  • DC Input : 11-26.1 V
  • Charge circuit power : 4x50W +/- 10%
  • Charge current rate : 2A/3A/5A
  • Battery type : 2-4S LiPo
  • Battery connector type : XH connector
  • Working temperature : 5-40°C
  • Net weight : 280 g
  • Dimensions : 128 x 128 x 50.5 mm
Data sheet
Download
