PC1080 AC Charger (6S LiPo/LiHV - 2x 540w)

Model: SKY100124

Manufacturer: SkyRC

SkyRC PC1080 AC Charger for 6S LiPo/LiHV - 2 x 540 W

More details

Availability: This product is not in stock. Addition to the backorder possible.

Expected availability date: 11/12/2025

305,99 €

(Recommended retail price tax incl.)

Find a Beez2b dealer near you.

More info

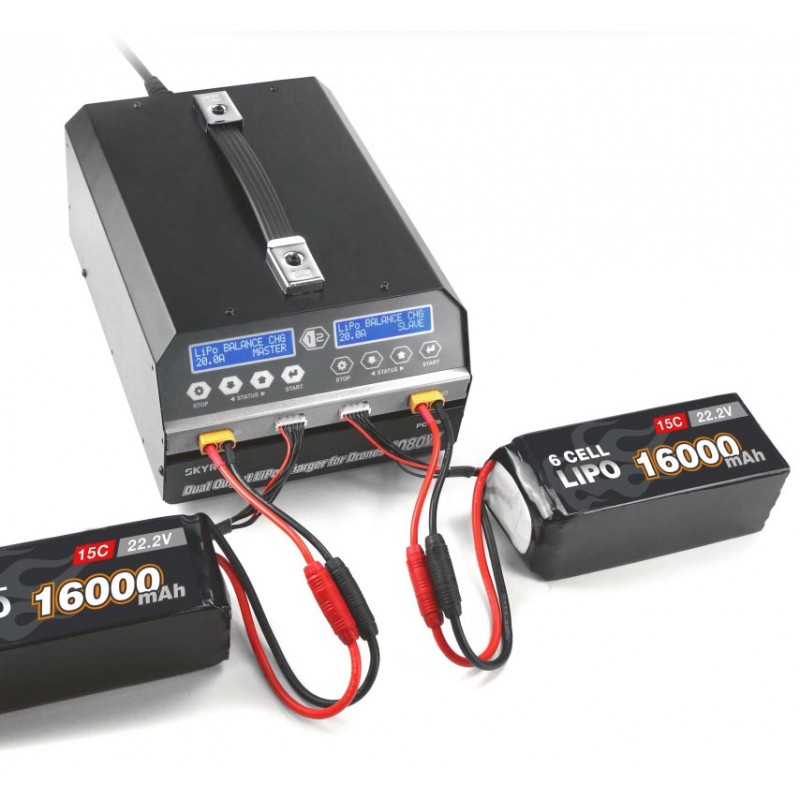

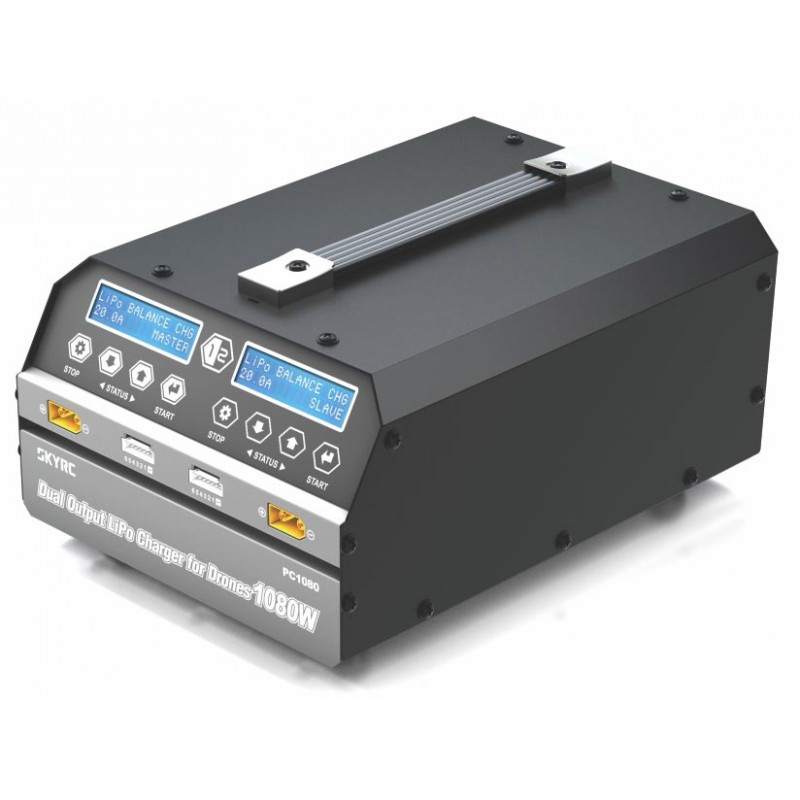

SkyRC PC1080 is a dual channel 6S LiPo charger for industrial application drones. It is reliable, safe and easy to operate while with comprehensive functionality, like battery voltage meter, internal resistance meter, LiHV charging mode, also the time saving synchronization mode.

Sophisticated industrial and mechanical design, optimizes the space.
Selecting components from well-known brands, guarantees stable quality and durability.

Using advanced 32bits high speed CPU from STMicroelectronics, processing capability improves 20 times.

High Frequency Capacitor

Using high spec large capacitor, ensures the charger can work properly for longer period of time.

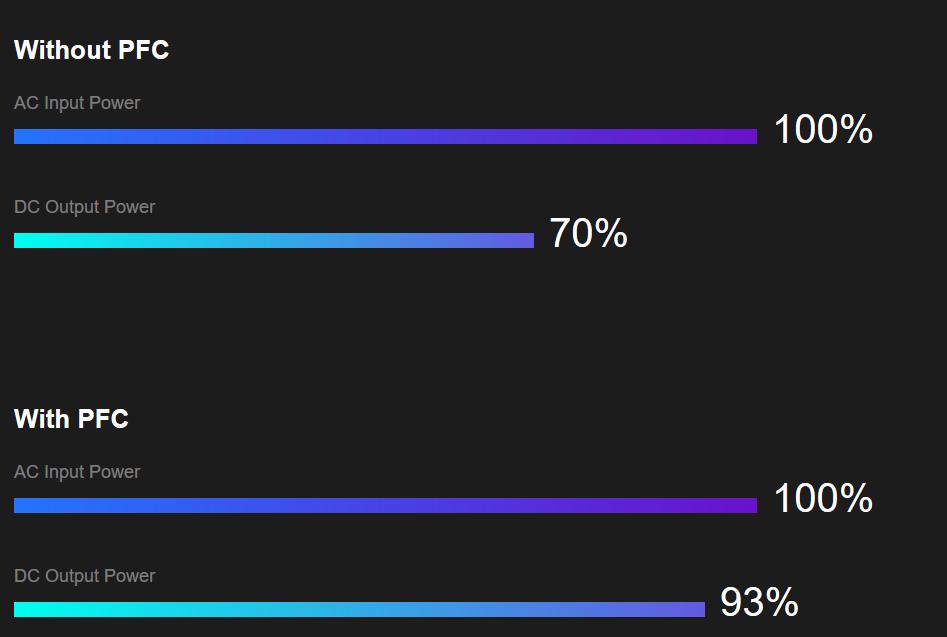

Active PFC

Active PFC uses a circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interferences to the power grid.

Switched-mode Power Supply

Accepts power from mains supplies throughout the world.

Conformal Coating

Conformal coating helps electronics withstanding harsh environments, and protects them against moisture, dust, chemicals, corrosive attack and temperature extremes etc.It also ensures PC1080 having stable performance in the field.

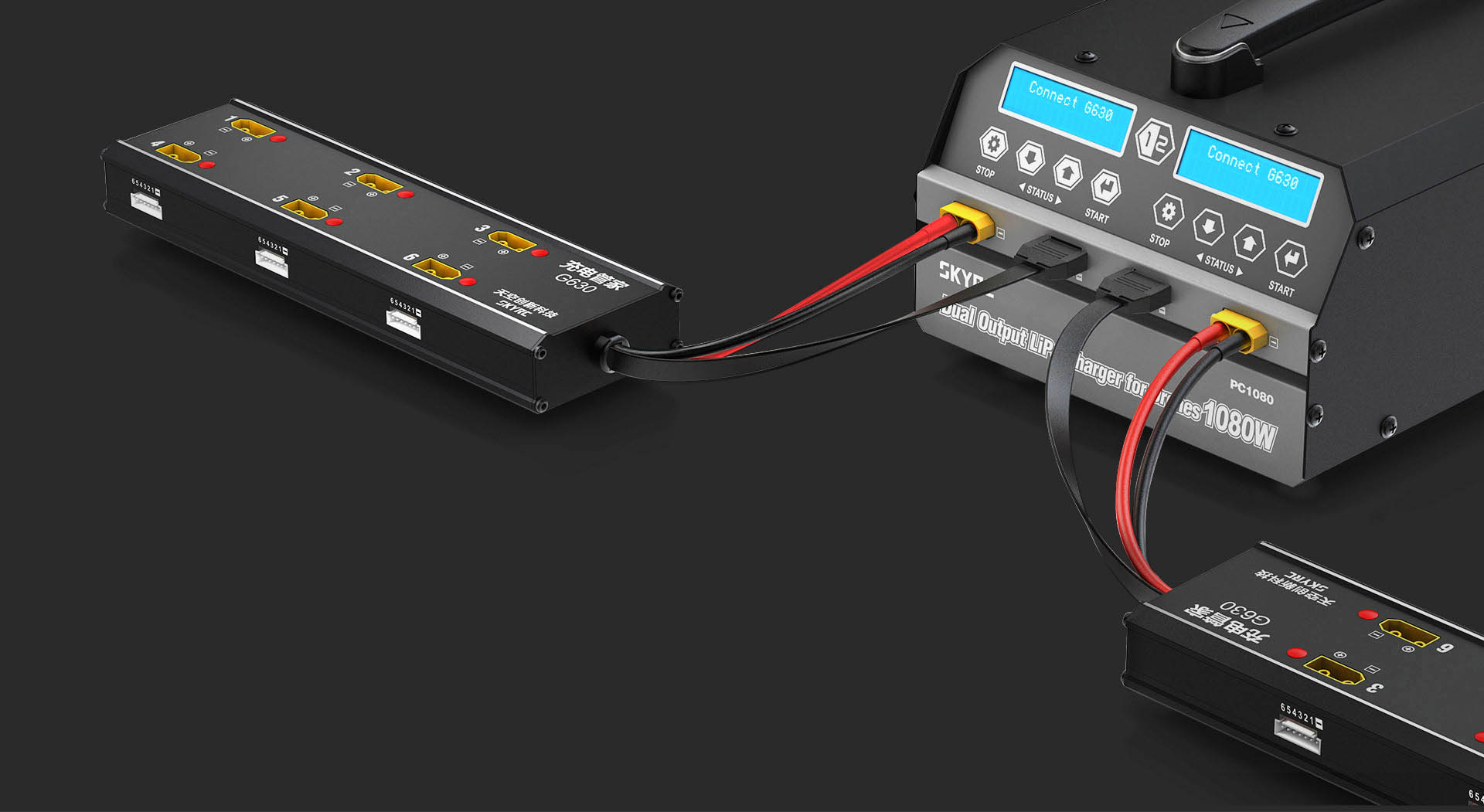

Automatically Charging 12 Packs of Batteries in Sequence

PC1080 pairing with G630 charging hubs, an automatic charging management system, can charge 12 packs of LiPo batteries in sequence, according to its remaining capacity (percentage), the one with highest capacity will be charged first (both channels applies the same rule).

Dual Ball Bearing High Speed Cooling Fans

Dual ball bearing high speed cooling fans with wing type blades design, provides good ventilation and a cool working condition.

High Density Fin-type Aluminum Heatsink

Fin-type design, large surface, greatly improving heat dissipation, ensures long time stable working performance.

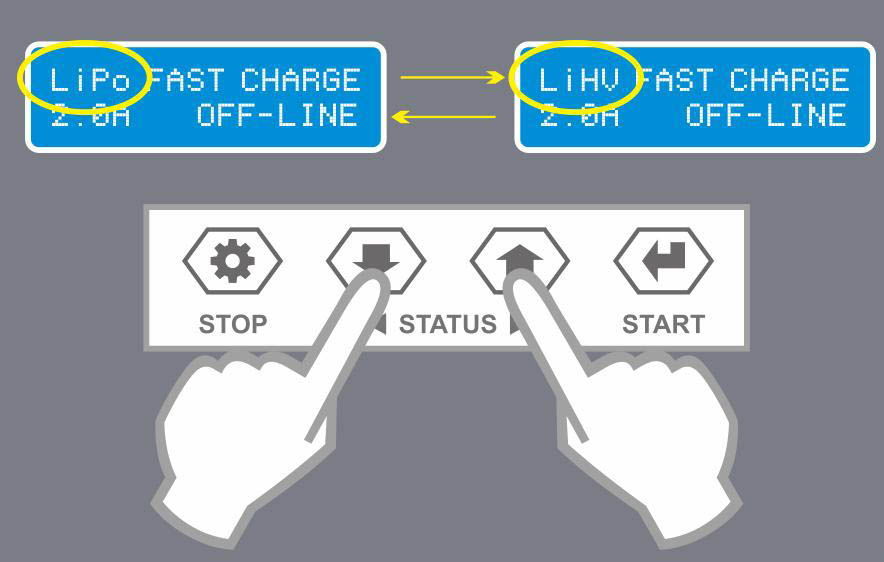

LiPo & LiHV Supported

It can fast charge, balance charge and storage both LiHV and LiPo batteries. Press “UP” and “DOWN” key together to switch battery type.

3 Working Modes

FAST CHARGE
- The science of the allocation of fast full time and balance time
BALANCE CHG
- High accuracy balance battery voltage, automatic regulation
STORAGE
- The maximum discharge power is 50W, automatic discharge

Experienced Engineering Support

Hardware and firmware experienced times of optimization, to make the performance of the charger more stable and reliable. And it supports firmware upgrade for adding new function and/or further optimization.

Maximized Safety Protection

It has short circuit protection, reverse polarity protection and over temperature protection. And it complies with required regulations of CE, RoHS, FCC, proving to be safe and reliable for the designed usage.

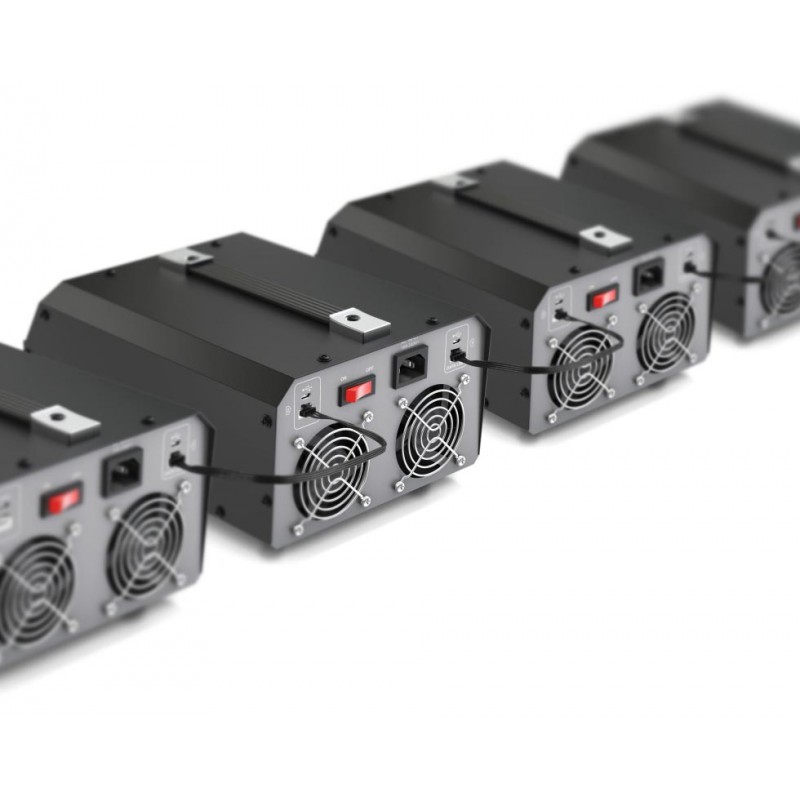

Multi-Charger Synchronization

This function enables user to control 2 or more PC1080 charger at the same time via datacable. All the SLAVE channel will follows the settings of MASTER channel, which saves much time while charging a bunch of similar batteries.

Battery Internal Resistance Meter

With this function, internalresistance of each cell will be displayed on the screen. Internal resistance is a key feature which reflects the health status of the battery, the lower internal resistance indicates the higher battery quality. Also this value can help you pair your batteries.

Specifications
