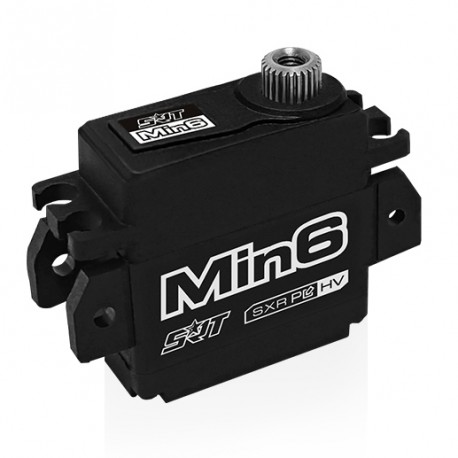

> Servo Coreless HV for 1/12 8.0kg/0.07sec @7.4V

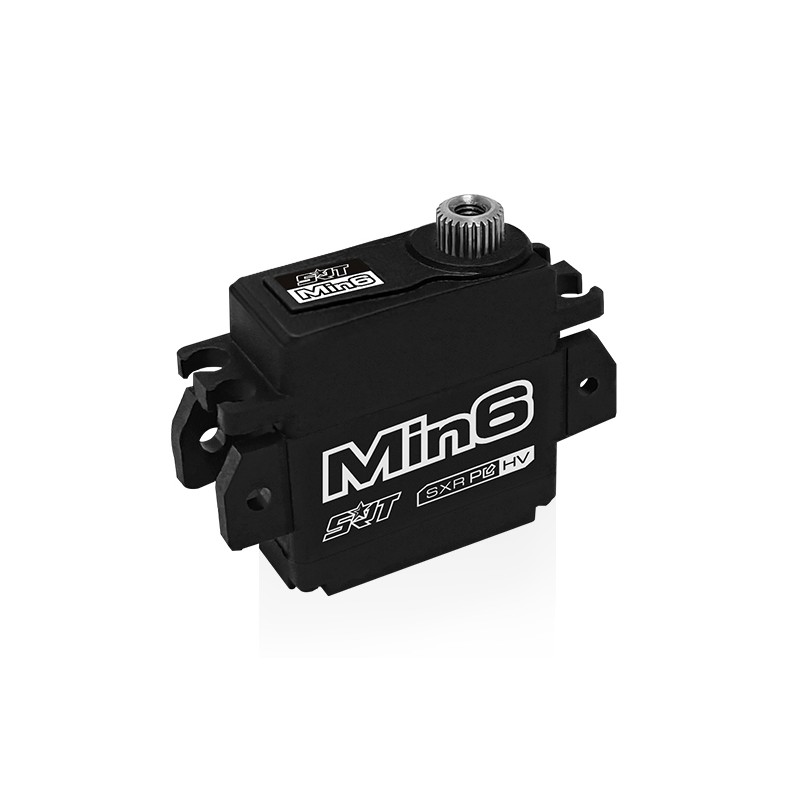

Servo Coreless HV for 1/12 8.0kg/0.07sec @7.4V View larger

Servo Coreless HV for 1/12 8.0kg/0.07sec @7.4V

SRTMIN6

SRT

SRT servo MIN6 for Pan Car 1/12 - Coreless - HV

More details

In stock, immediate delivery This product is in low stock

78,99 €


More info

Usage : 1/12 Pan Car

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.


All of SRT servos  are available to be customized for easy installation by OEM order.

Key features
  • Special 1/12 pancar servo
  • Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
  • Incredible efficiency and low power consumption
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: 7075 Aluminum
  • control system: pulse width control
  • working frequence: 1520μs / 333hz
  • operating voltage: dc4.8-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (4.8v): 0.100 sec/60 degrees at no load
  • operating speed (6.0v): 0.080 sec/60 degrees at no load
  • operating speed (7.4v): 0.070 sec/60 degrees at no load
  • operating speed (8.4v): 0.062 sec/60 degrees at no load
  • stall torque (4.8v): 5.0kg.cm (69.4 oz/in)
  • stall torque (6.0v): 6.8kg.cm (94.4 oz/in)
  • stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
  • stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 27.2x12.1x28.2 mm /1.07x0.48x1.11 in
  • weight: 18.0g (0.63 oz)
  • connector wire length: jr 170 mm
Data sheet
  • Manufacturer : SRT
