Platinum Motor 60x94 8mm 5230SL 190kV 10-12s Lipo

Model: HW30416200

Manufacturer: Hobbywing

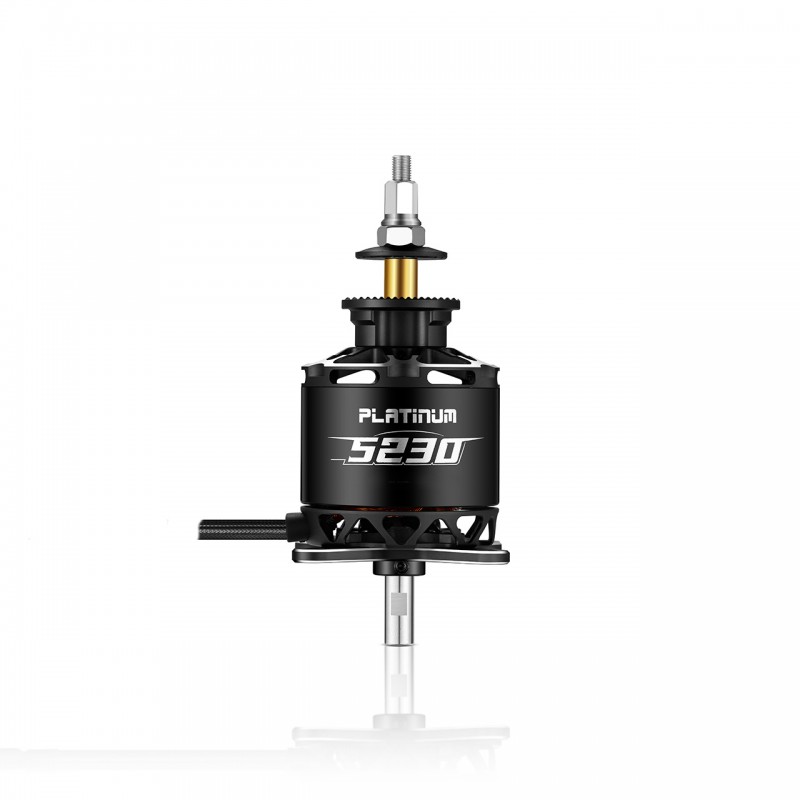

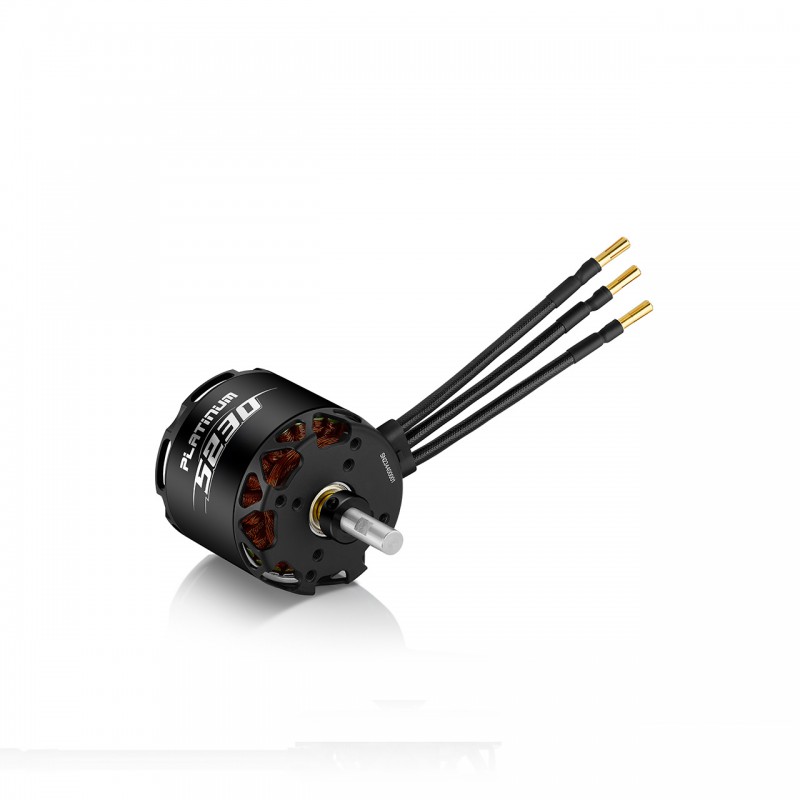

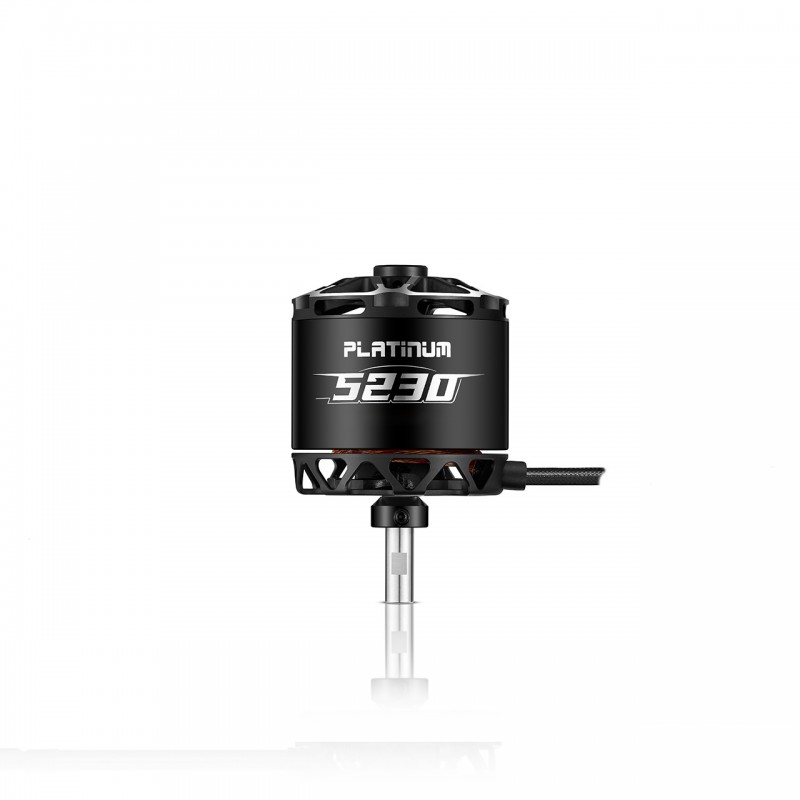

Hobbywing brushless Platinum Motor 60x94 8mm 5230SL 190kV 10-12s Lipo

Availability: This product is in stock

153,99 €

(Recommended retail price tax incl.)

Find a Beez2b dealer near you.

Hobbywing 52 Series brushless motor for fixed wing aircraft

Specifications

Model		Platinum 5230SL 190KV
Specifications	Product Number	30416200
	Motor Size	Φ60.2 *93.5mm
	Stator Size	Φ51.7*t30
	Stator process	High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
	Enamelled wire	200℃
	Fiber Screw Thread	Φ22mm-3*M4
	Screw Diameter/Thread	Φ30mm-4M4;Φ44mm-4M4
	Slot& Pole	24N28P
	Dynamic balance	≤10mg
	Bearing	1560ZZ，698ZZ
	Motor axle diameter	8mm
	Isolation test	500V AC high voltage resistance test
	KV	190
	Battery(LiPo)	LiPo-10~12S
	No-load current	3.0A/44.4V
	Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	112.5A/42s
	Max power	4985W/42s
	Max thrust	14.99kg
	Resistance	22mΩ
	Wire Size	Enamelled Wire Output
	Wire length	100mm
	Weight（With wire）	582g
Recommended Props/ESCs	Recommended ESC	PLATINUM 130A V4 PLATINUM 180A V5
	Recommended ESC	PLATINUM 130A V4 PLATINUM 180A V5	Propeller	10S：20x10E，22x10E，22x12E 12S： 20x8E， 20x10E，22x10E

Data sheet
