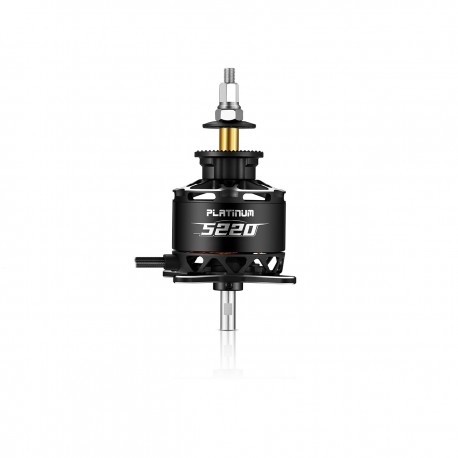

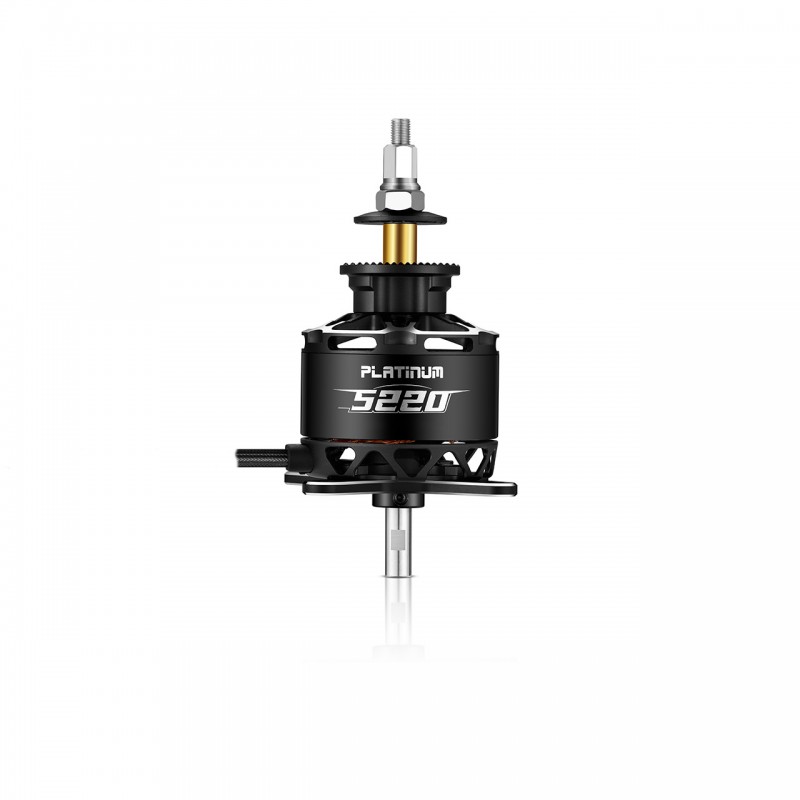

Platinum Motor 60x84 8mm 5220SL 220kV 10-12s Lipo
On order & available within +/- 9 days
More info
Hobbywing 52 Series brushless motor for fixed wing aircraft
| Model | Platinum 5220SL 220KV | |
| Specifications | Product Number | 30416150 |
| Motor Size | Φ60.2 *83.5mm | |
| Stator Size | Φ51.7*t20 | |
| Stator process | High standard silicon steel sheet, 180℃ high temperature resistance paint-coat | |
| Enamelled wire | 200℃ | |
| Fiber Screw Thread | Φ22mm-3*M4 | |
| Screw Diameter/Thread | Φ30mm-4*M4;Φ44mm-4*M4 | |
| Slot& Pole | 24N28P | |
| Dynamic balance | ≤10mg | |
| Bearing | 1560ZZ，698ZZ | |
| Motor axle diameter | 8mm | |
| Isolation test | 500V AC high voltage resistance test | |
| KV | 220 | |
| Battery(LiPo) | LiPo-10~12S | |
| No-load current | 3.5A/44.4V | |
| Maximum current (Non-hermetic Ambient Temperature ≤ 25℃） | 86A/44s | |
| Max power | 3828W/44s | |
| Max thrust | 10.05kg | |
| Resistance | 27.5mΩ | |
| Wire Size | Enamelled Wire Output | |
| Wire length | 100mm | |
| Weight（With wire） | 430g | |
| Recommended Props/ESCs | Recommended ESC | PLATINUM 130A V4 PLATINUM 180A V5 |
| Propeller | 10S：20x8E，20x10E 12S：17x8E，18x8E，18x10E |
- Manufacturer : Hobbywing
