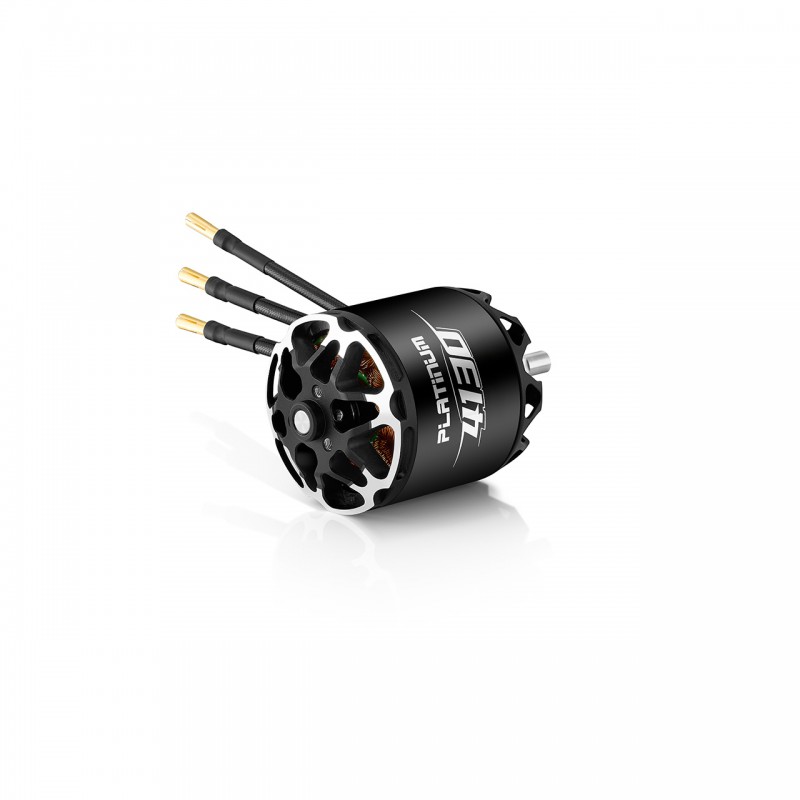

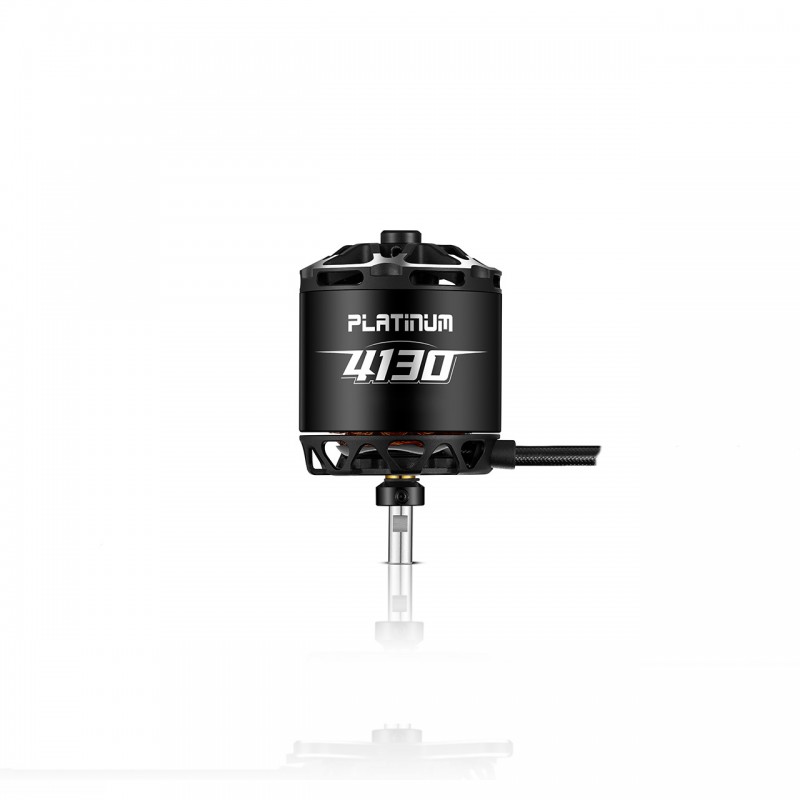

Platinum Motor 50x57 6mm 4130SL 420kV 6s Lipo
On order & available within +/- 9 days
More info
Hobbywing 41 Series brushless motor for fixed wing aircraft
| Model | - | Platinum 4130SL 420KV |
| Specifications | Product Number | 30416101 |
| Motor Size | Φ49.5 *82.3mm | |
| Stator Size | Φ40.6*30mm | |
| Stator process | High standard silicon steel sheet,180℃ high temperature resistance paint-coat | |
| Enamelled wire | 200℃ | |
| Props mounting dimensions | Φ15mm-3*M3 | |
| Motor mounting dimensions | Φ30mm-4*M4 | |
| Slot& Pole | 12N14P | |
| Dynamic balance | ≤10mg | |
| Bearing | 696ZZ | |
| Motor axle diameter | Φ6mm | |
| Isolation test | 500V AC high voltage resistance test | |
| Specification | KV | 420 |
| Battery(LiPo) | LiPo-6S | |
| No-load current | 2.4A/22.2V | |
| Maximum current (Non-hermetic Ambient Temperature ≤ 25℃） | 107.6A/1min4s | |
| Max power | 2384W/1min4s | |
| Max thrust | 8.73kg | |
| Resistance | 14mΩ | |
| Wire Size | Enamelled Wire Output | |
| Wire length | 90mm | |
| Weight（With wire） | 420g | |
| Recommended Props/ESCs | Recommended ESC | PLATINUM 120A V4 |
| PLATINUM 150A V5 | ||
| Propeller | 6S：16X8E，16X10E， | |
| 17X8E，18X8E， |
- Manufacturer : Hobbywing
