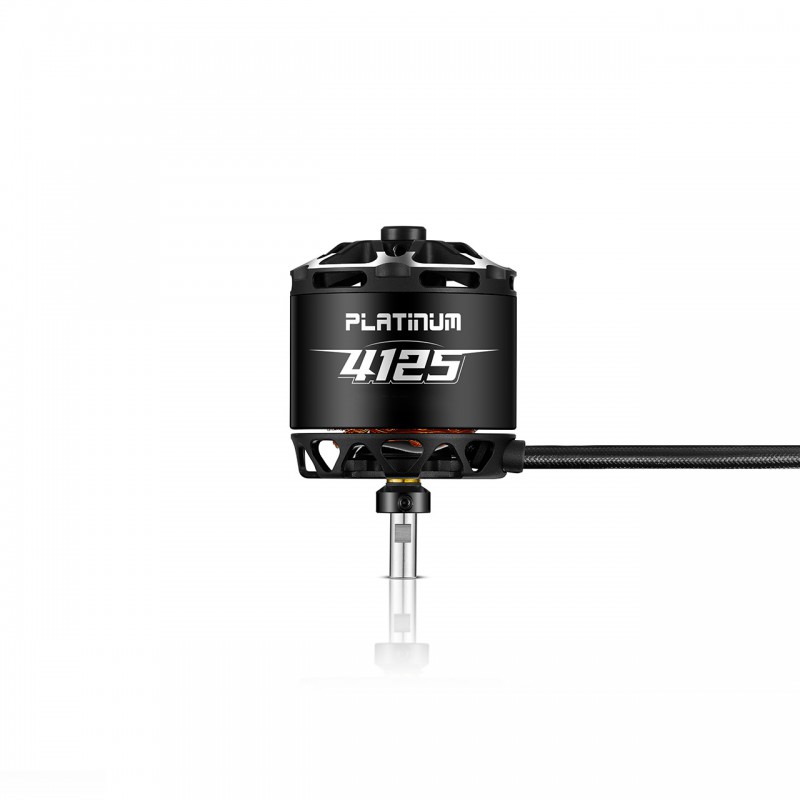

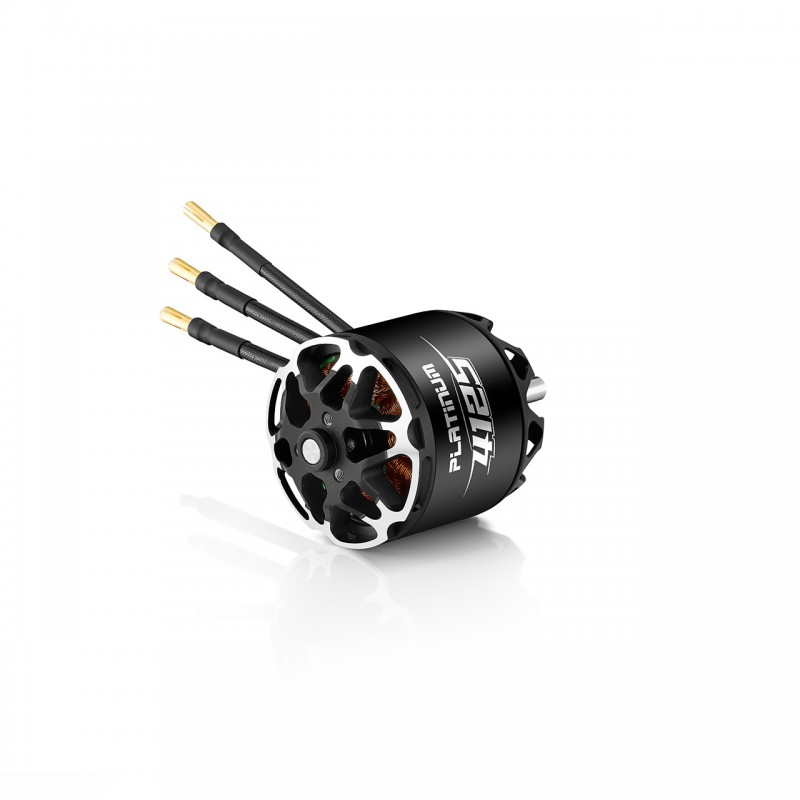

Platinum Motor 50x52 6mm 4125SL 580kV 5-6s Lipo

Model: HW30416052

Manufacturer: Hobbywing

Hobbywing brushless Platinum Motor 50x52 6mm 4125SL 580kV 5-6s Lipo

Availability: On order & available within +/- 9 days

102,99 €

(Recommended retail price tax incl.)

Find a Beez2b dealer near you.

Hobbywing 41 Series brushless motor for fixed wing aircraft

Specifications

Model	-	Platinum 4125SL 580KV
Specifications	Product Number	30416052
	Motor Size	Φ49.5 *77.3mm
	Stator Size	Φ40.6*25mm
	Stator process	High standard silicon steel sheet,180℃ high temperature resistance paint-coat
	Enamelled wire	200℃
	Props mounting dimensions	Φ15mm-3*M3
	Motor mounting dimensions	Φ30mm-4*M4
	Slot& Pole	12N14P
	Dynamic balance	≤10mg
	Bearing	696ZZ
	Motor axle diameter	Φ6mm
	Isolation test	500V AC high voltage resistance test
Specification	KV	580
	Battery(LiPo)	LiPo-6S
	No-load current	3.9A/22.2V
	Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	119.7A/1min17s
	Max power	2289W/1min17s
	Max thrust	7.35kg
	Resistance	9.5mΩ
	Wire Size	Enamelled Wire Output
	Wire length	90mm
	Weight（With wire）	370g
Recommended Props/ESCs	Recommended ESC	PLATINUM 120A V4
	Recommended ESC	PLATINUM 150A V5
	Propeller	5S：15x8E，16x8E，
	Propeller	6S：14x6E，14x7E，15x6E，

Data sheet
