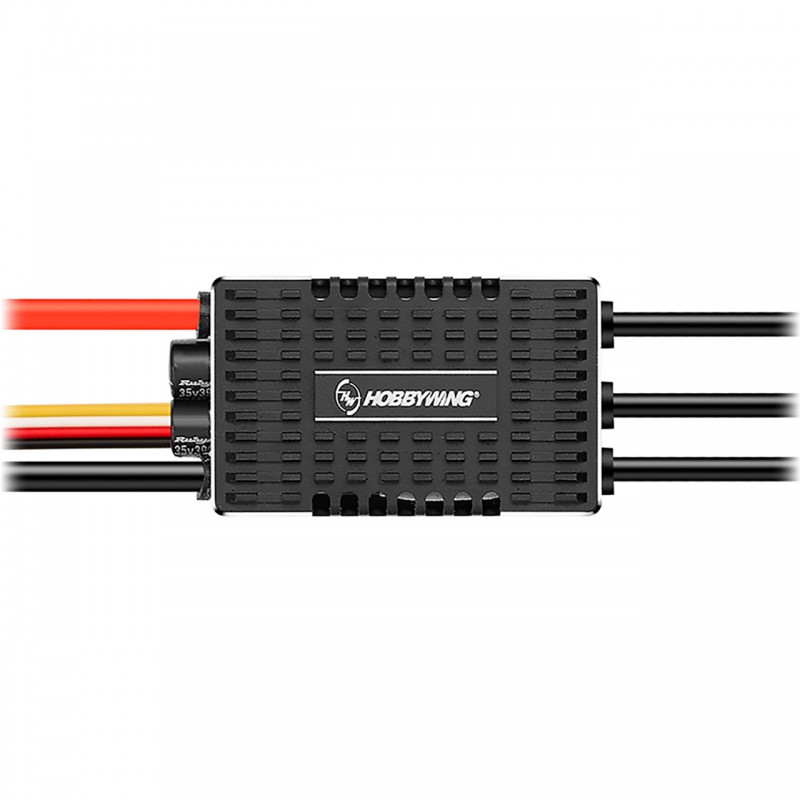

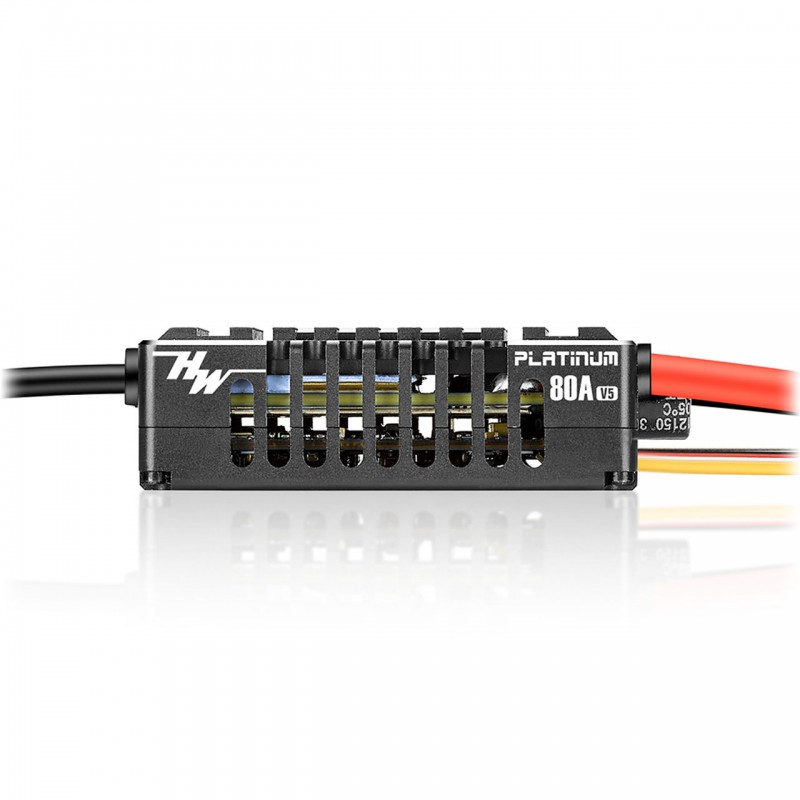

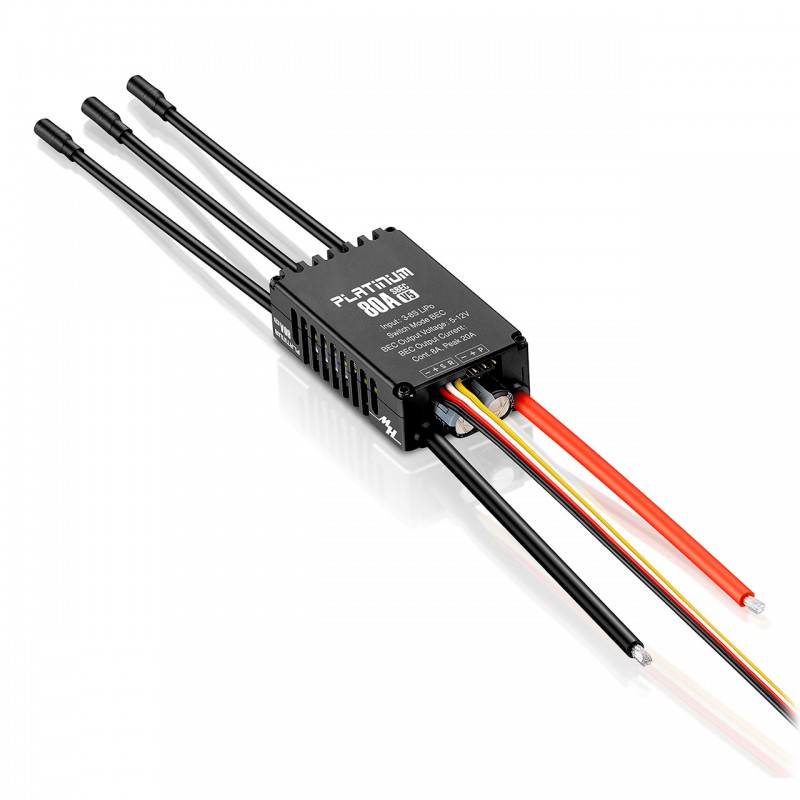

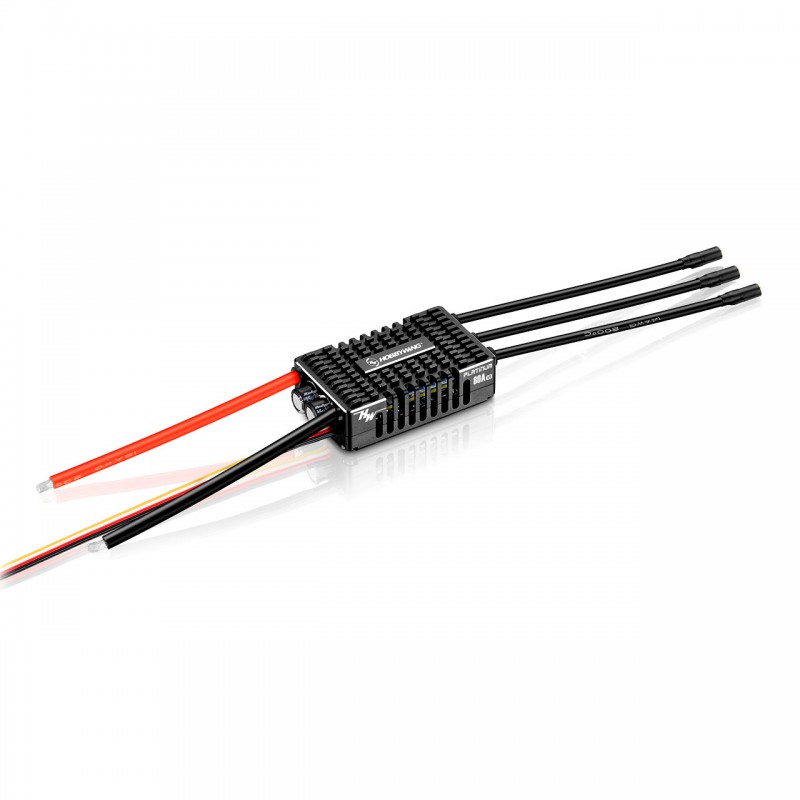

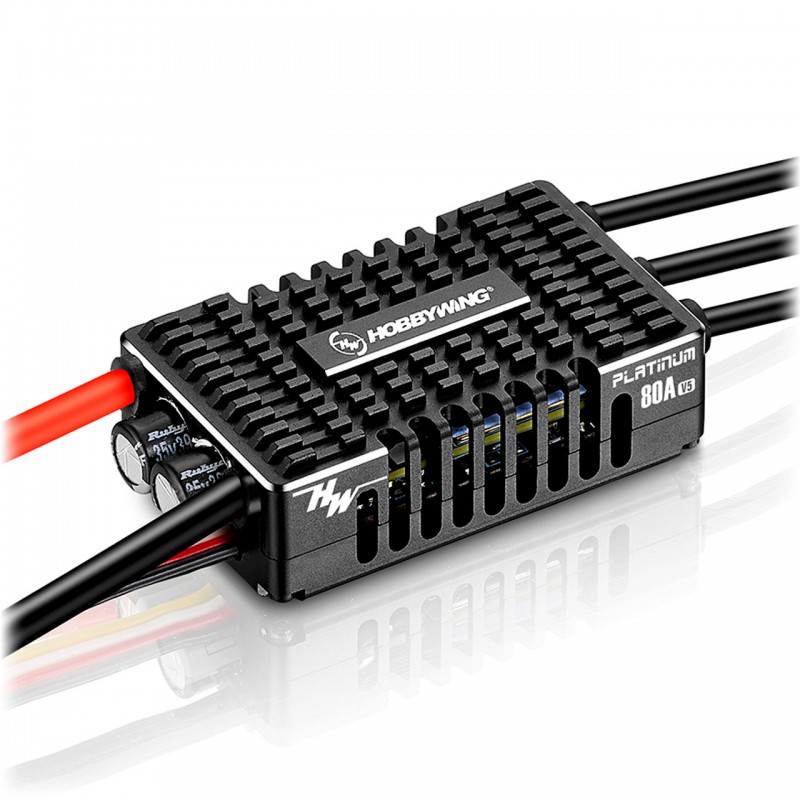

Platinum Pro 80A ESC V5 3-8s, 8A BEC

PLATINUM 80A V5

Compact size with efficient heat sink design
The Platinum V5 series features the newly designed heat sink, that will cool with the airflow generated by the movement of the craft.
This new design allows for external cooling of the ESC as well as internally.

Built-in 12V Switch BEC for greater output capability

• 1 - Built-in Programmable Switch BEC
• 2 - The maximum output voltage 12V (5-12V Adjustable)
• 3 - The maximum output current up to 25A

Constant speed performance upgrade, Ultimate flight experience
The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and more consistent.
Excellent speed control effects for lightweight, small-sized electric helicopters.

Support multiple protocols, versatile
SUPPORT :  Mikado VBar System，Futaba S.BUS2 and other devices' data return protocols.
Users are able to adjust parameters on the remote-control device (VBar protocol support) or check the working status of the ESC at any time.

Synchronous rectification technology, multiple advantages
The ESC has synchronous rectification driving efficiency optimization technology
DEO — DRIVING EFFICIENCY OPTIMIZATION
which brings multiple advantages:

• Faster throttle response, enhanced flight stability and flexibility
• Higher driving efficiency and longer battery life-span
• Lower ESC temperature rise, more reliable

Multiple protection, double security
It has multiple protection functions, to effectively prolonging the lifespan of the ESC.

• Start-up protection
• Current protection
• Temperature protection
• Overload protection
• Throttle signal loss protection
• Capacitor temperature protection
• Input voltage abnormality protection
