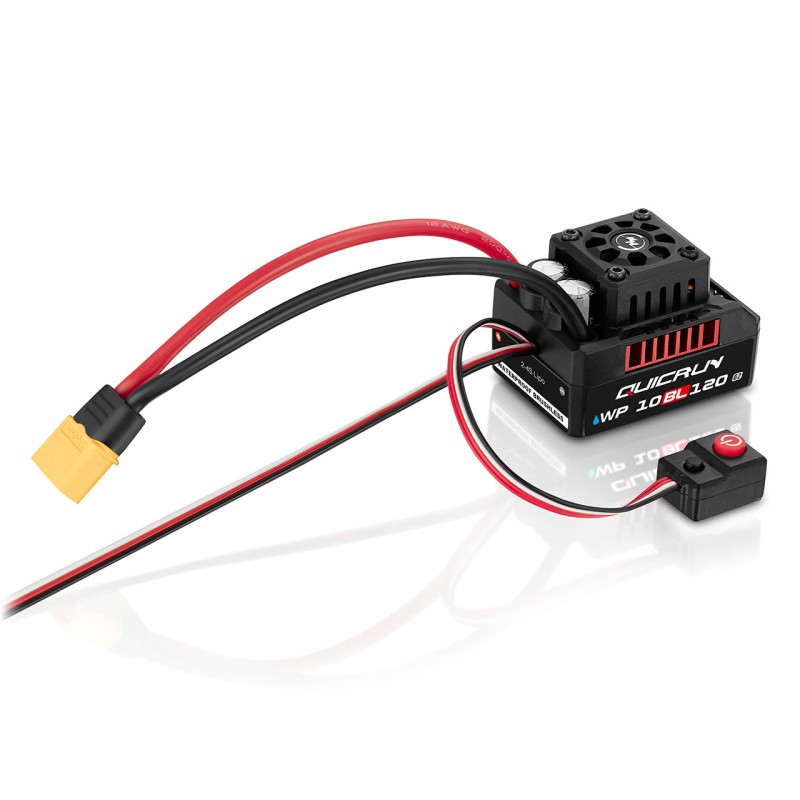

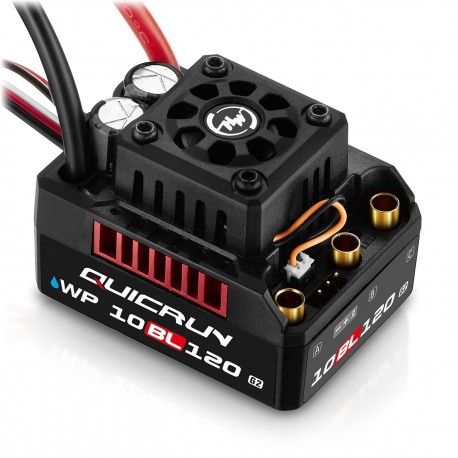

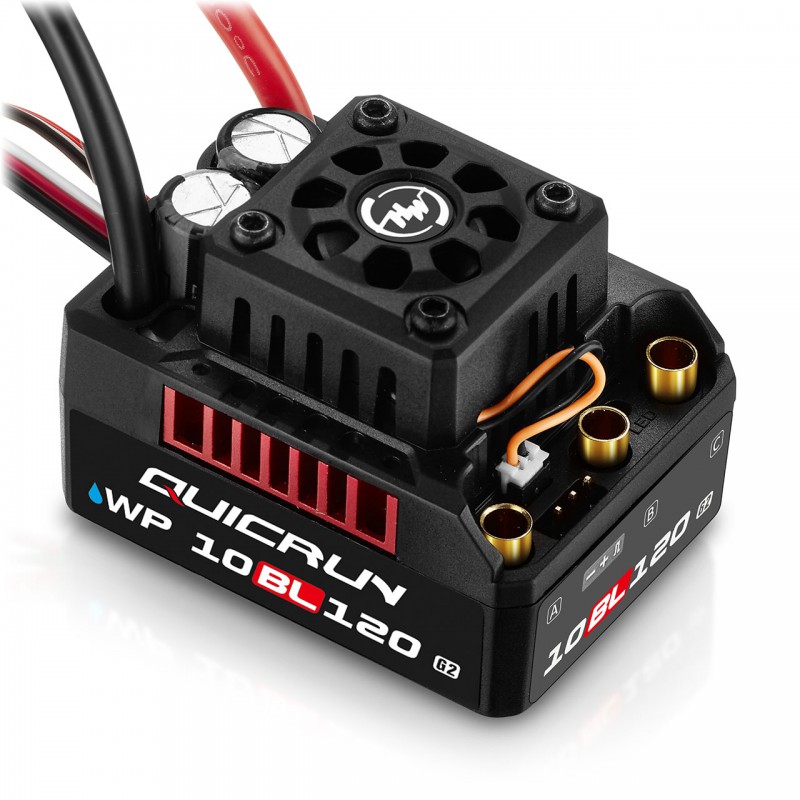

> QuicRun ESC WP10BL120 G2 Brushless 120A 2-4s
QuicRun ESC WP10BL120 G2 Brushless 120A 2-4s View larger

QuicRun ESC WP10BL120 G2 Brushless 120A 2-4s

HW30107200

Hobbywing

New from Hobbywing is the updated G2 version of the extremely popular QuicRun 10BL120 brushless speed control.

Out of stock This product is not in stock. Addition to the backorder possible.

Ordered from supplier, delivery time unknown.

58,99 €


More info

Key features
  • Intelligent freewheeling technology, greatly improved performance
  • Powerful built-in BEC
  • Efficient cooling system
  • Capacitor thermal protection
  • Built-in capacitor
  • High protection level, all weather operation

Specifications

Scale :

1 :10

Type :

Brushless / sensorless

Water resist :

Yes

Cont.peak current :

120A / 760A

Input voltage :

2-4 S LiPo

BEC output :

6v/7.4v@5A

Input wires :

Black 14 AWG-200mm*2

Output connectors :

4mm Gold (female)

Firmware upgrade :

Not supported

Size :

52.9x39.8x38.2mm

Weight :

119g
  • ESC programing via:
    • SET button on ESC: Not supported
    • LED program box: Supported
    • LCD G2 program box: Supported
    • OTA programmer: Supported
    • Program Port: Separate program port
  • Applications: Brushless motors sensorless or sensorless mode only
Data sheet
  • Manufacturer : Hobbywing
