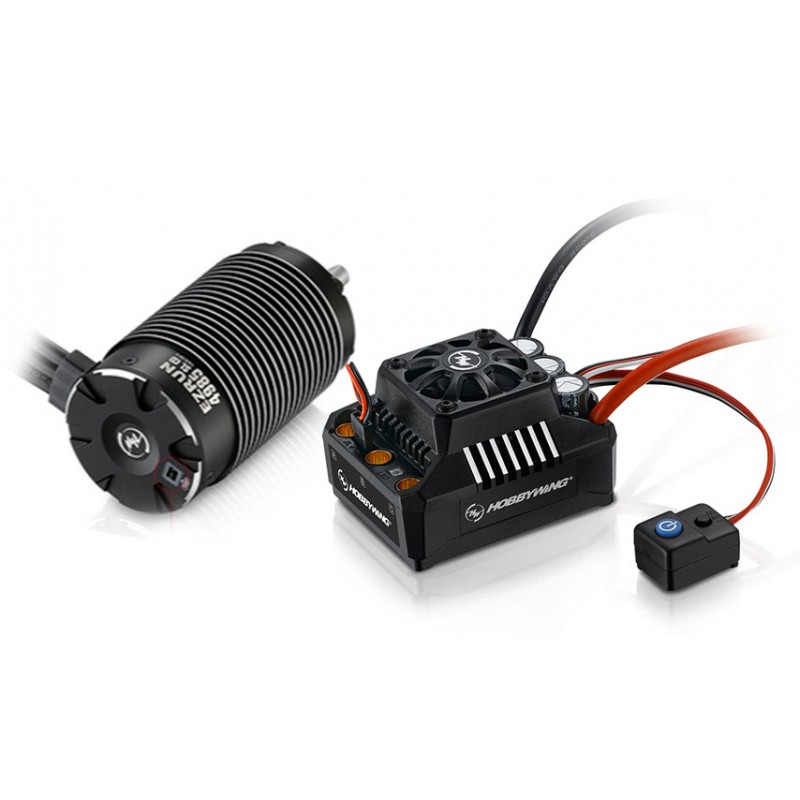

> Ezrun MAX6 Combo SL 4985 1650kV Sensorless
Ezrun MAX6 Combo SL 4985 1650kV Sensorless View larger

Ezrun MAX6 Combo SL 4985 1650kV Sensorless

HW38010801

Hobbywing

Hobbywing Ezrun MAX6 Combo SL 4985 1650kV Sensorless

More details

In stock This product is in stock

215,99 €


More info

This brushless controller and motor combo is suitable for 1/7 and 1/6 scale touring cars, buggies, truggies, and monster trucks with high-end configurations.

High reliability and durability

Equipped with the most robust and highest quality components, combined with the most modern firmware, the EZRUN MAX6 offers unmatched power and performance, even in the most demanding races. In addition, it is sensitive enough to protect itself from damage caused by overload or human error.

Specifications

EzRun Max6 brushless ESC

  • Système à douilles Moteur : 6,5mm contact or
  • Courant cont. / de pointe : 160A/1050A
  • Type de moteur : Sensorless Brushless
  • Limites du moteur Brushless :
  • 6S LiPo/18S NiMH : KV<=1500 (5892 taille)
  • 8S LiPo/24S NiMH : KV<=1200 (5892 taille)
  • Eléments LiPo/NiMH : 9-24 éléments NiMH / 3-8S LiPo
  • Sortie BEC : 6V/7.2V avec 6A (commutable)
  • Ventilateur : Oui (alimentation par BEC intégré)
  • Taille (LxlxH) : 70 x 56 x 46,5mm
  • Poids : 240g
  • Entrée de programmation : ventilateur / entrée PRG
  • Programmation ESC :
    • LCD Program Box
    • LED Program Box
    • Bouton Set-Up

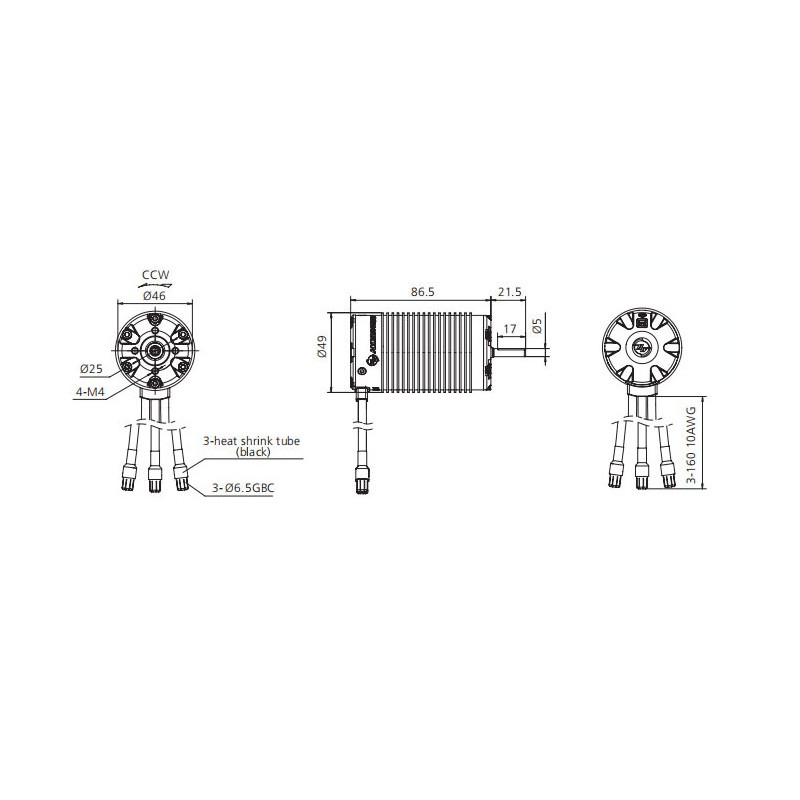

EzRun 4985-1650Kv brushless motor

  • Scale: 1/6
  • Sensor type: sensorless
  • Poles: 4
  • RPM/Volt: 1650 kv
  • Outer diameter: 49mm
  • Length: 85mm
  • Shaft diameter: 5mm
  • Application: 1/6 with 3-6s Lipo



Composition Kit
  • MAX6 brushless ESC
  • SL 4985 brushless motor
  • User manual
Data sheet
  • Manufacturer : Hobbywing
