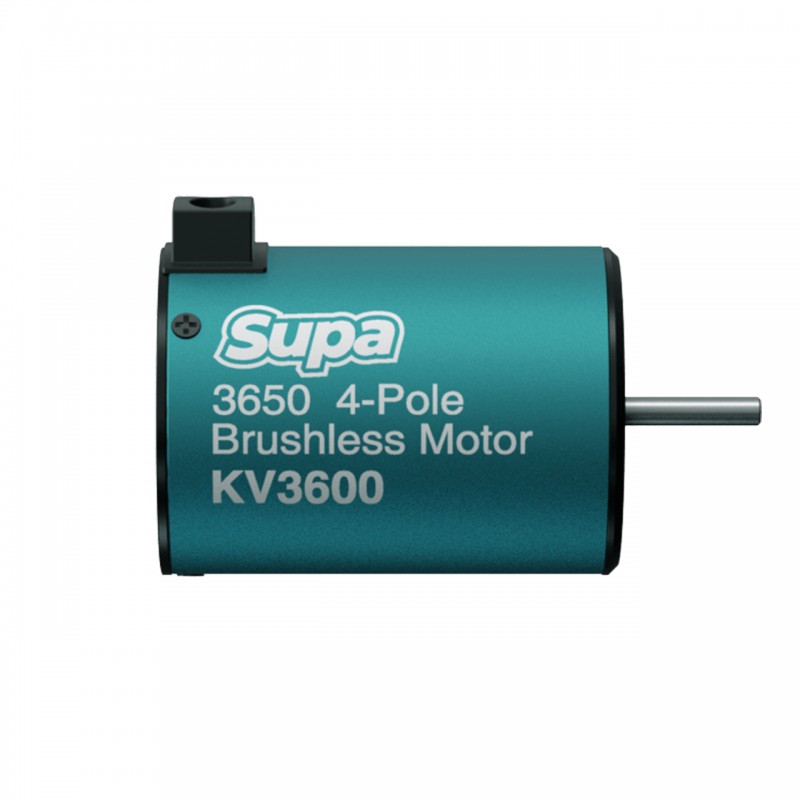

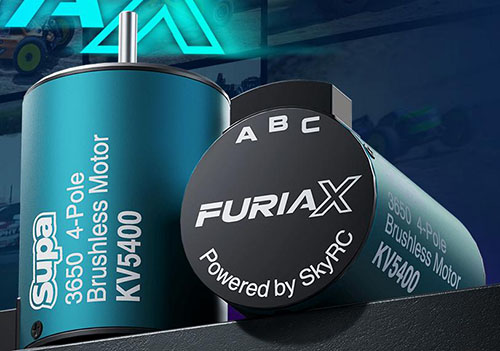

FuriaX Supa 3650 Brushless Motor 3600KV

SKY400035-03

SkyRC

SkyRC FuriaX Supa 3650 Brushless Motor 3600KV

More details

In stock This product is in stock

27,99 €


More info

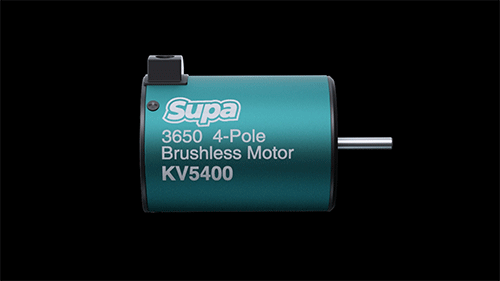

1/10 FuriaX Supa 3650 Brushless Motor

FuriaX · Born on the Track.

We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.

Because real performance isn’t proven in labs — it’s earned on the track.

FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.

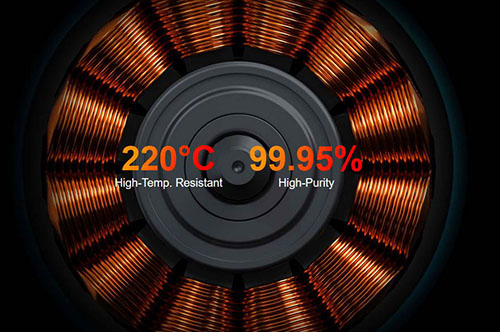

Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can

Strength in structure. Light in weight. Cool in heat.

Global-grade Bearings & Precision Shaft

Premium bearings combined with a high-precision shaft deliver ultra-smooth, accurate control—race after race.

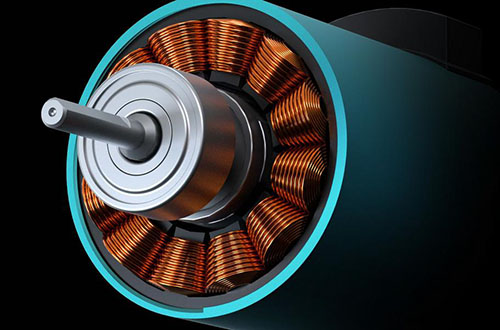

Precision-balanced Rotor

Perfectly balanced for high-speed stability, refined output, and total driving confidence.

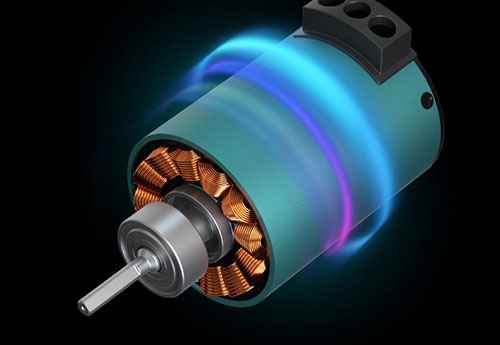

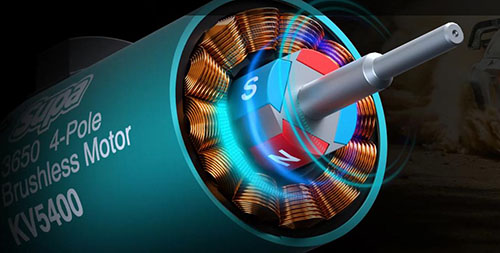

Four-Pole 12-Slot
Stronger Torque
Smoother Power

Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

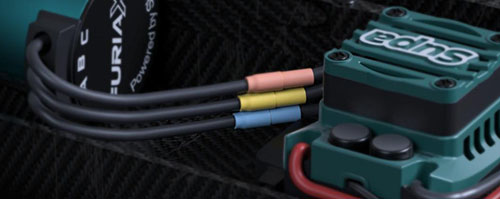

Effortless Wiring
Plug and Play

Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes
No Problem

Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit
Easy Maintenance

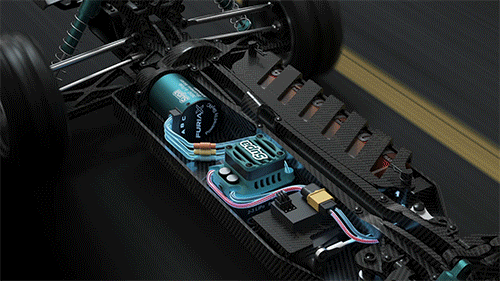

Part of the SkyRC ecosystem, perfectly matched with SUPA ESCs for maximum performance. Fully compatible with mainstream sensorless ESCs for stable output anywhere.
Simplifies maintenance, enables performance tuning and customization, and extends motor lifespan.

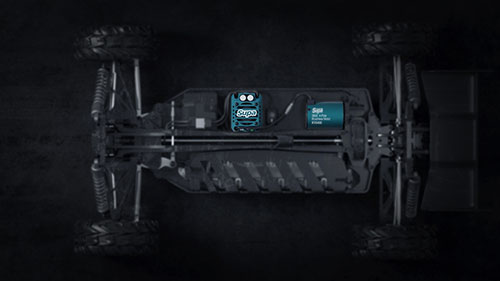

Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options

A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

From Supa, the Race Begins.
Supa. Simple. Stable.

Brushless power made for beginners: simple, reliable, and ready to run out of the box.
High-value performance that lasts, bringing worry-free enjoyment to every drive.


Specifications

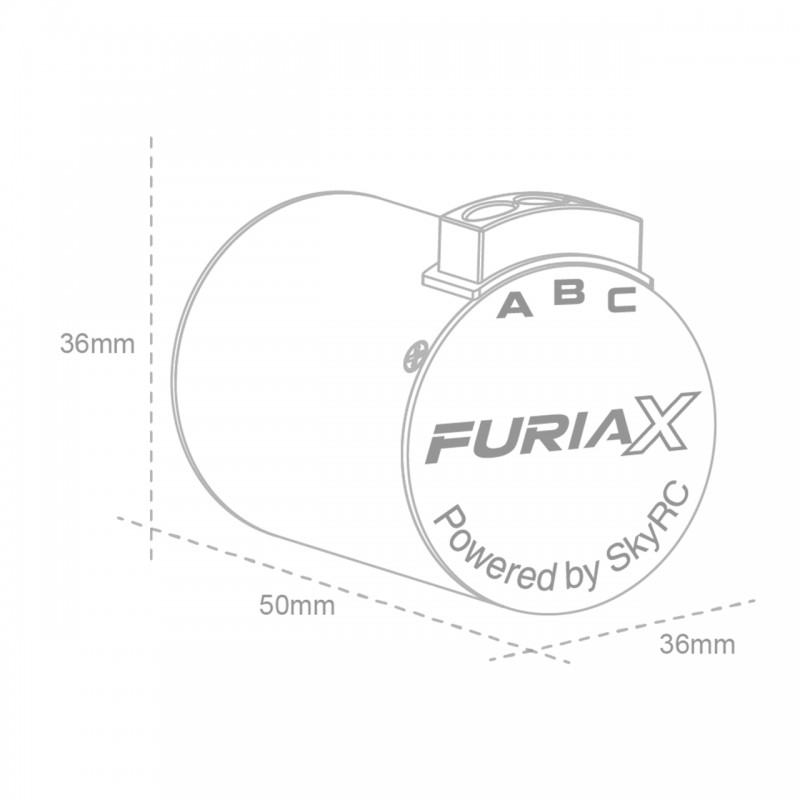

  • Size: 36x50mm
  • Weight:
    • 2300KV 3100KV: 180g±5g
    • 3600KV 4000KV 5400KV: 150g±5g
  • Operating temperature: -10°C-80°C
  • Operating humidity: 20%-90% (non-condensing)
  • Storage temperature: 0°C-50°C
  • Storage humidity: 30%-60% (non-condensing)
  • Voltage : < 13V
  • No-load Current : 1.7A
  • Load Current : 69A Max.
  • Power : 900W Max.
  • Rotor(mm) : Ø15*Ø5.00*16


Data sheet
  • Manufacturer : SkyRC
