> Servo BHMX2 Brushless HV i-BUS2 23.0kg/0.65sec @8,4V (180mm wire)
New Servo BHMX2 Brushless HV i-BUS2 23.0kg/0.65sec @8,4V (180mm wire) View larger

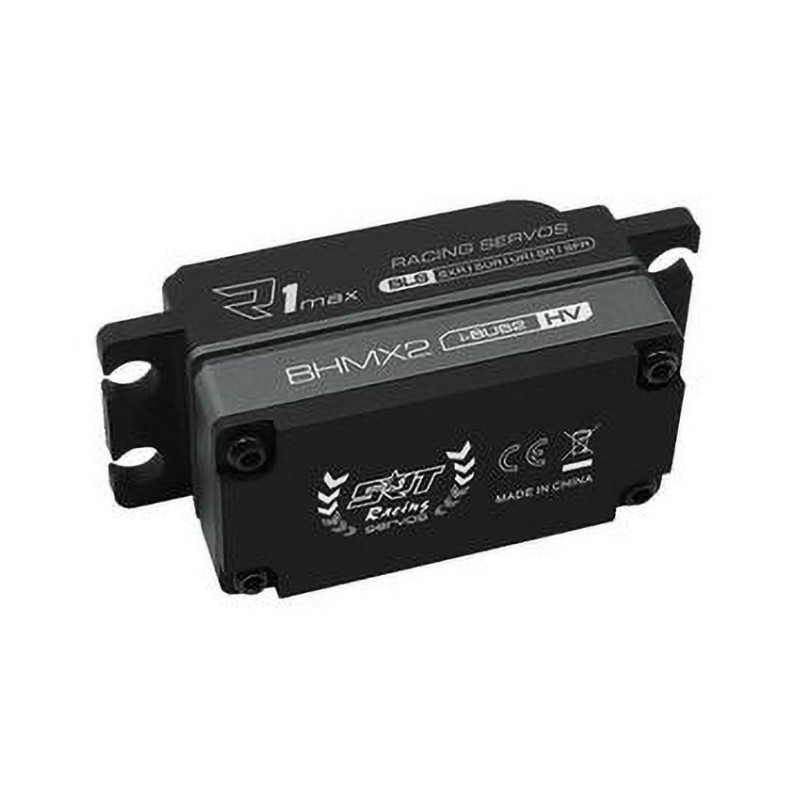

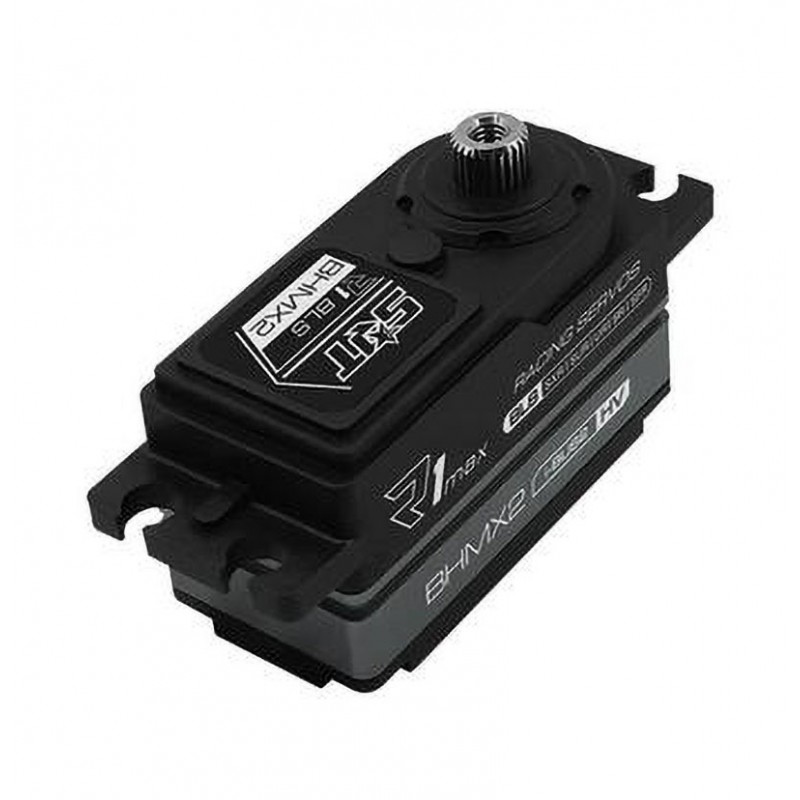

Servo BHMX2 Brushless HV i-BUS2 23.0kg/0.65sec @8,4V (180mm wire)

SRTBHMX2

SRT

SRT BHMX2 - Brushless servo - HV - iBUS2 - 23 kg.cm

More details

In stock This product is in stock

124,99 €


More info

Servo for :

  • 1/10 Electric Touring
  • 1/10 2WD Electric Buggy
  • 1/10 Nitro Touring
  • 1/8 Nitro Touring

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Key features

  • Ideal for 1/10 on road applications
  • Incredible efficiency and low power consumption
  • Extremely sensitive response speed
  • Aluminum case for good heat dissipation
  • NMB dual main bearings
  • Supporting SR, SSR, SFR, SUR, SXR multiple ultra high speed modes
  • 25T output shaft
  • 1-Year Limited Warrant

Specifications

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Titanium + 7075
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.080 sec/60 degrees at no load
  • operating speed (7.4v): 0.073 sec/60 degrees at no load
  • operating speed (8.4v): 0.065 sec/60 degrees at no load
  • stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
  • stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
  • stall torque (8.4v): 23.0kg.cm (319.4 oz/in)
  • potentiometer drive: direct drive

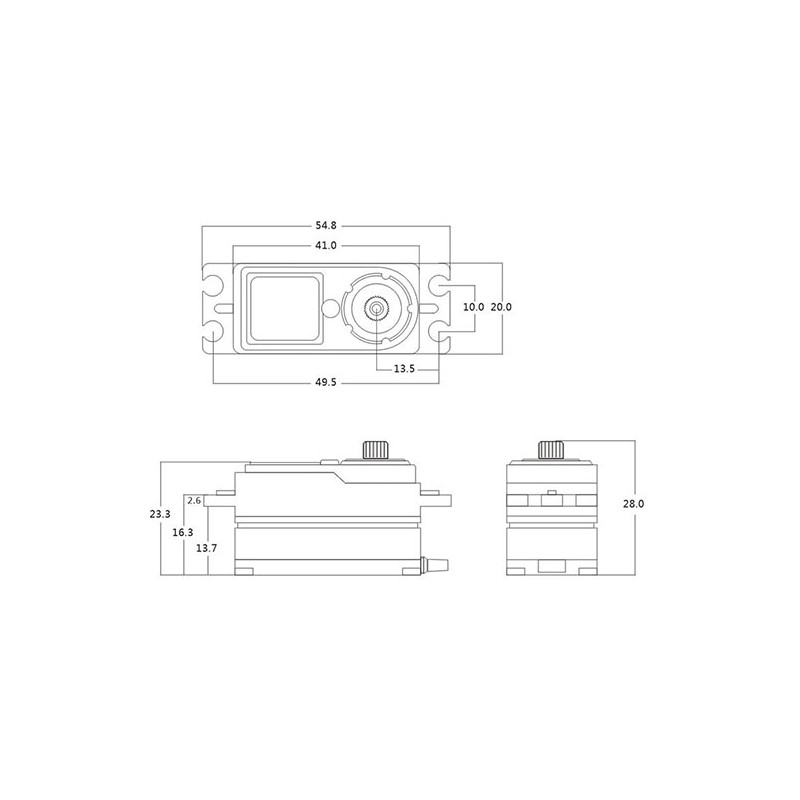

  • dimensions: 41.0x20.0x23.3 mm /1.61x0.79x0.92 in
  • weight: 42.0g (1.48 oz)
  • connector wire length: jr 180 mm（Specifically designed for nitro car steering）



Data sheet
  • Manufacturer : SRT
