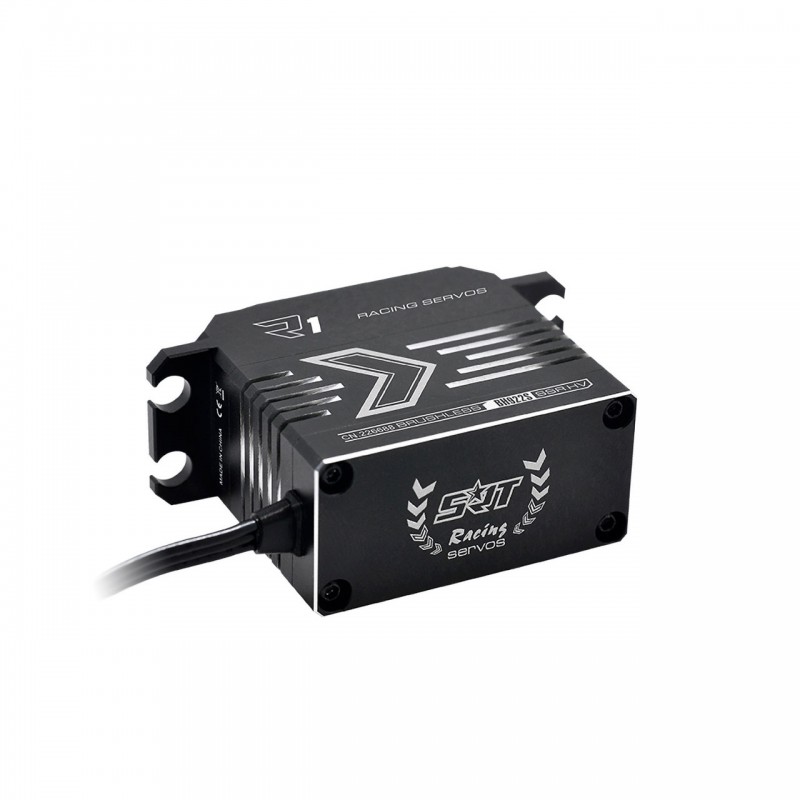

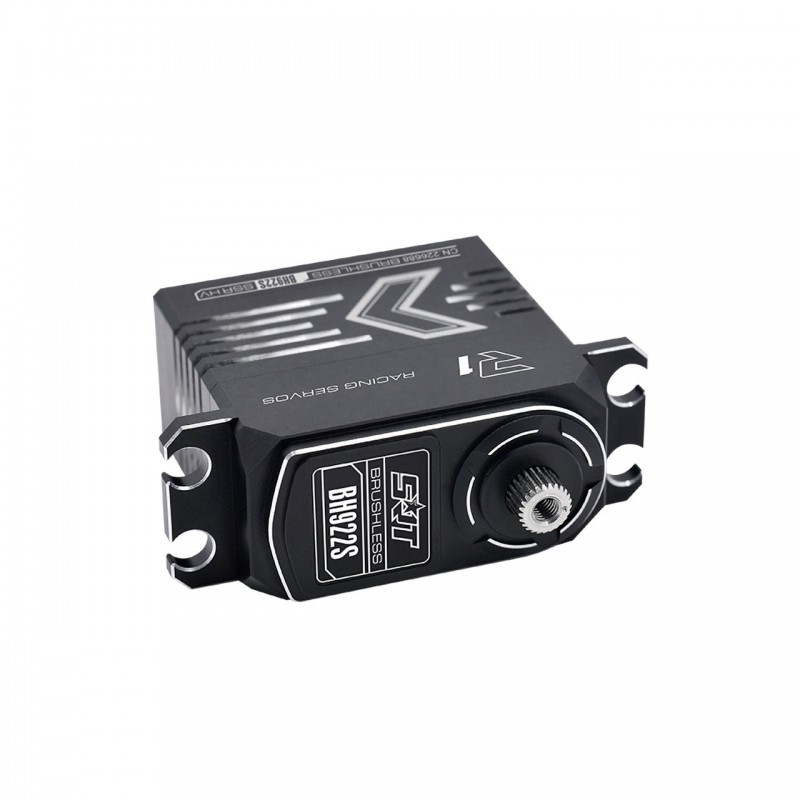

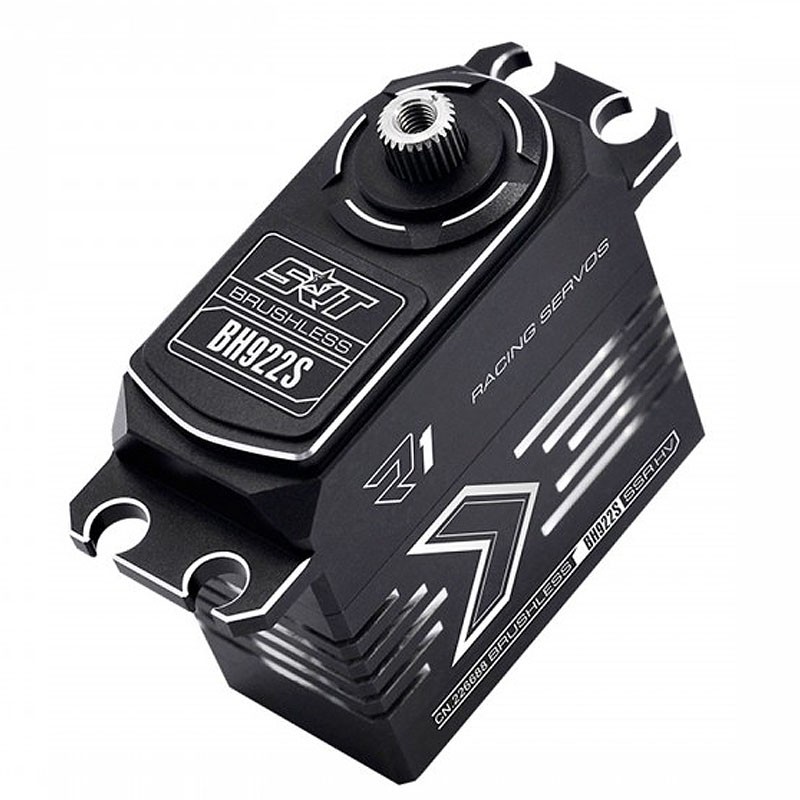

> Servo BH922S BL HV - High Speed 20.0kg/0.06sec @7.4V
Servo BH922S BL HV - High Speed 20.0kg/0.06sec @7.4V View larger

Servo BH922S BL HV - High Speed 20.0kg/0.06sec @7.4V

SRTBH922S

SRT

SRT BH922S BL HV servo - High Speed 20.0kg/0.06sec @7.4V

In stock This product is in stock

115,99 €


More info

Specifications
  • type: Digital
  • bearing: Dual
  • motor Type: Brushless
  • gear Type: Metal
  • gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc 6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.08 sec/60 degrees at no load
  • operating speed (7.4v): 0.06 sec/60 degrees at no load
  • operating speed (8.4v): 0.055 sec/60 degrees at no load
  • stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
  • stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
  • stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
  • weight: 70.0g (2.47 oz)
  • connector wire length: jr 250 mm
Data sheet
  • Manufacturer : SRT
