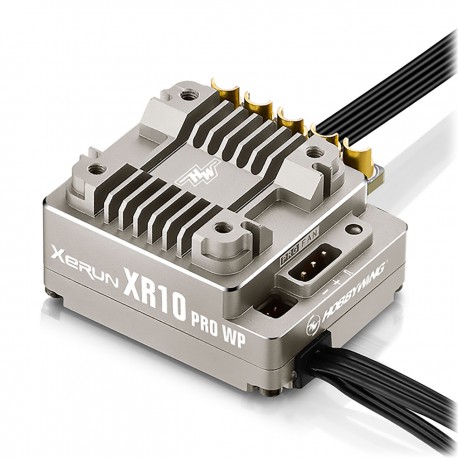

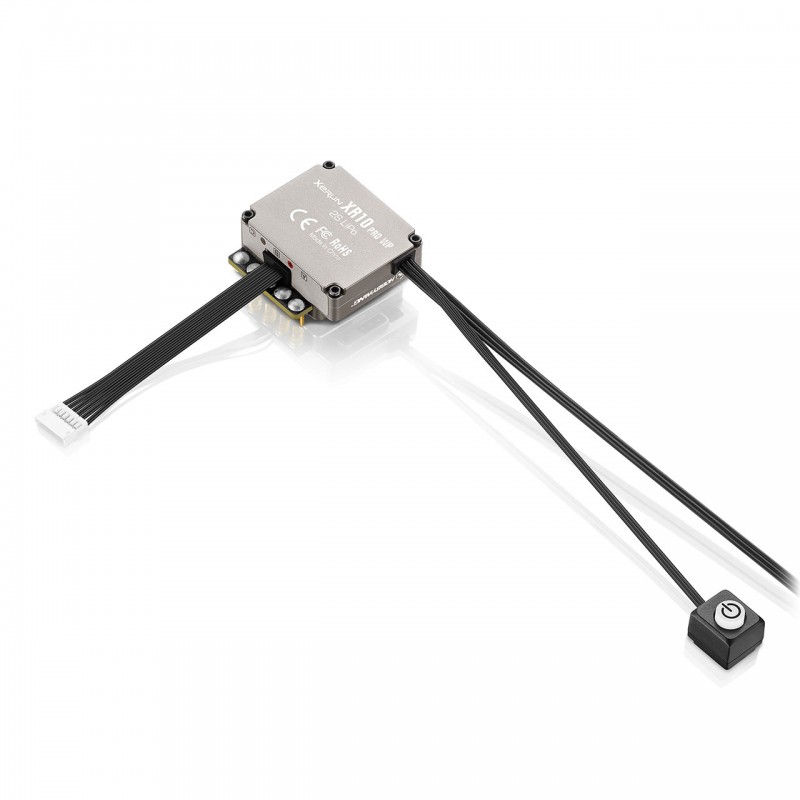

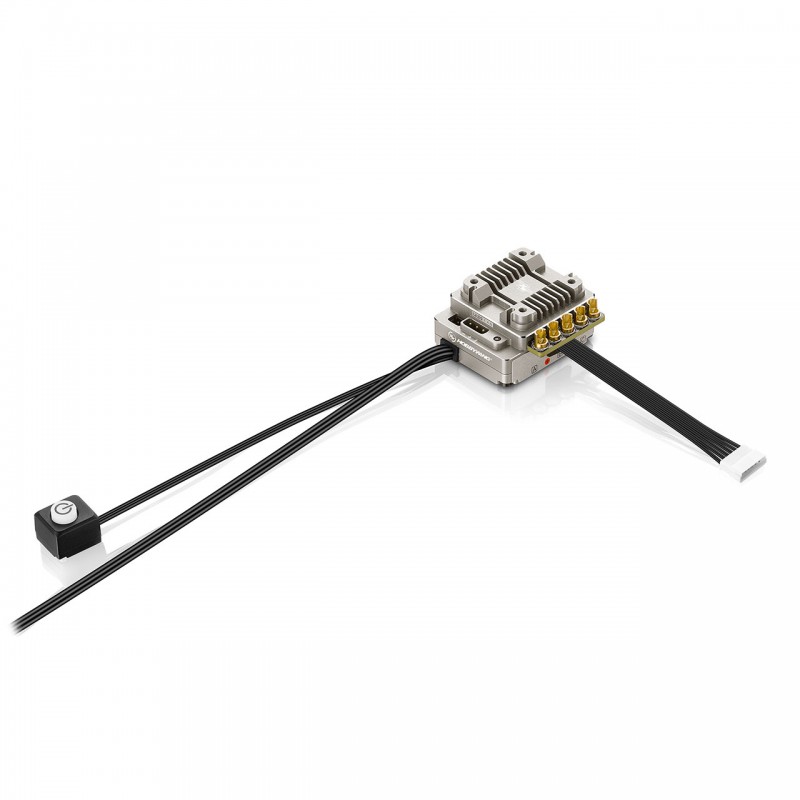

Xerun XR10 Pro WP Brushless ESC 160A, 2s LiPo
This product is in stock at our warehouse
Meer informatie
IP67 protection, all-weather operation
The new XR10 Pro-WP is able to easily handle conditions, from rain, dust, and sand with a proven waterproof and dust-proof design that is exceeds IP67 industrial standards.
Built-in reverse polarity protection circuit
The ESC has built in reverse voltage protection.
This ensures the ESC will be protected from accidental cross connection of the battery.
This ensures the ESC will be protected from accidental cross connection of the battery.
Note
The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection.
Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection.
Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
Smart Fan start & stop function
The fan does not run when the ESC temperature is low.
The fan automatically turns on when the ESC temperature reaches the preset value.
The smart fan start&stop function not only reduces noise, saves power, but also ensures that the ESC works in the optimal temperature range.
The fan does not run when the ESC temperature is low.
The fan automatically turns on when the ESC temperature reaches the preset value.
The smart fan start&stop function not only reduces noise, saves power, but also ensures that the ESC works in the optimal temperature range.
Equipped with powerful core processor
The 32-bit M4 processor greatly improves the data processing capabilities of the ESC.
It not only allows the ESC to respond faster but is able to perform complexity and precise data calculations
It lays the foundation for subsequent ESC function upgrades and optimization. Professional competition-grade hardware combined with powerful software makes it a weapon global competition.
The 32-bit M4 processor greatly improves the data processing capabilities of the ESC.
It not only allows the ESC to respond faster but is able to perform complexity and precise data calculations
It lays the foundation for subsequent ESC function upgrades and optimization. Professional competition-grade hardware combined with powerful software makes it a weapon global competition.
Adjstable Throttle curvature
New throttle curvature adjustments allow additional tuning of the throttle response.
With +10 curve, to -10 curve settings, and custom Curve allow drivers more options to get the perfect throttle feel.
With +10 curve, to -10 curve settings, and custom Curve allow drivers more options to get the perfect throttle feel.
Real-time data acquisition easy analysis
When connected to the OTA module, and using the HW Link V2 App, bench top live data can be monitored. You are able to view, Throttle, Voltage, Temperatures, and RPM in real time.
The ESC also supports additional data logs when operated with the OTA installed.
Data logs are saved to the OTA to be viewed after the run.
When connected to the OTA module, and using the HW Link V2 App, bench top live data can be monitored. You are able to view, Throttle, Voltage, Temperatures, and RPM in real time.
The ESC also supports additional data logs when operated with the OTA installed.
Data logs are saved to the OTA to be viewed after the run.
Use the OTA Module and your Phone/Tablet to Tune the ESC.
The OTA module allows you to connect to your ESC using the HW Link V2 app.
This allows ESC tuning and Firmware updates.
The OTA module allows you to connect to your ESC using the HW Link V2 app.
This allows ESC tuning and Firmware updates.
Built-in BEC supporting high-voltage servos
The ESC has a built in switch mode BEC rated up to 10 amps.
BEC voltage is adjustable from 5-7.4 volts. (0.1v steps)
The internal BEC is able to easily handle todays most power hungry servos.
The ESC has a built in switch mode BEC rated up to 10 amps.
BEC voltage is adjustable from 5-7.4 volts. (0.1v steps)
The internal BEC is able to easily handle todays most power hungry servos.
Max Brake Tuning - 101%-150%
Active brake provides stronger brake force and ensures Stock/Spec class racing setups have enough stopping power.
Developed for the ESC brakes to handle very tall spec racing gear ratios that are commonly used.
Active brake provides stronger brake force and ensures Stock/Spec class racing setups have enough stopping power.
Developed for the ESC brakes to handle very tall spec racing gear ratios that are commonly used.
Wide range of applications
Based on the flagship XR10 Pro series platform, it has strong output capability and is suitable for various Modify and Stock competitions in 1/10 on-road and 1/10 off-road.
Based on the flagship XR10 Pro series platform, it has strong output capability and is suitable for various Modify and Stock competitions in 1/10 on-road and 1/10 off-road.
| Type | Scale | 1/10th |
| Brushed/Brushless | BL | |
| Sensored/Sensorless | SD | |
| Waterproof | Waterproof | |
| Specifications | Cont./Peak Current | 160A/1200A |
| Input Voltage | 2S Lipo | |
| BEC BEC Output | Switch Mode 5V-7.4V @5A | |
| Wires & Connectors | Input Wires | Black-13AWG-200mm*2 |
| Output Wires | Black-13AWG-200mm*3 | |
| Input Connectors | No | |
| Output Connectors | No | |
| Fan | Size | 25*25*10mm |
| Voltage Range | 5-7.4V | |
| Powered by | BEC | |
| ESC Programing via | SET Button on ESC | Not Supported |
| LED Program Box | Not Supported | |
| LCD G2 Program Box | Supported | |
| LCD PRO | Supported | |
| OTA Programmer | Supported | |
| Program Port | Separate Program Port | |
| Data Recording | Extreme value | Supported |
| Real-time Data | Supported | |
| Historical data (Graph) | Supported | |
| Firmware | Firmware Upgrade | Supported |
| Size & Weight | Size | 37.7*37.2*19.6mm |
| Weight | 95.6g(w/Wires) | |
| Applications | Motors | Sensored brushless motors / Sensorless brushless motors |
| Vehicles | 1/10th Touring car & Buggy racing, 1/10th Drift,F1,Rally | |
| KV Rating/T Count | Touring Car: ≥4.5T Buggy: ≥5.5T |
- Manufacturer : Hobbywing
