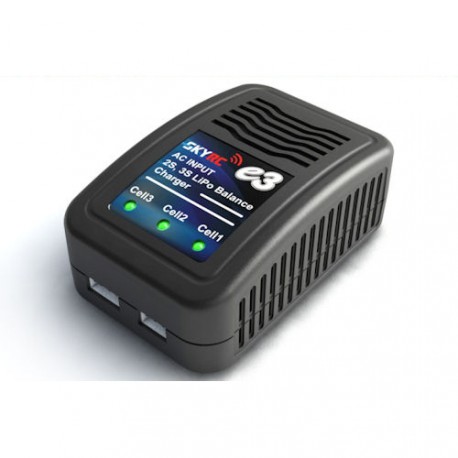

e3 AC Charger (LiPo 2-3S - 11W)

CHARGE PROCEDURES

SKYRC e3 comes with the built in power supply. You can connect the AC power cord to the AC socket (100-240V AC) directly.
Insert the AC power cord into the charger.

• Insert the AC cord into a wall socket (100-240V). All LEDs will light green and flash red to indicate the charger is ready to charge.
• Connect battery balance wire to balance port which is in front side of the charger, after 2 seconds, the charger detects the voltage of the battery and starts to charge.
• The charger starts charging. The LEDs will glow constant red. If the battery pack is 2-cell, Cell 1 and Cell 2 LEDs will glow constant red; if the battery pack is 3-cell, Cell 1, Cell 2 and Cell 3 LEDs will glow constant red.
• When a cell is completely charged, its corresponding LED will glow constant green. A 2-cell pack is fully charged when LEDs 1 and 2 are constant green. For 3-cell pack, all LEDs will glow constant green to indicate the pack is fully charged.
• Unplug the battery from the charger and the charge status LED will stay green and flash red which indicates the charger is ready to charge another battery.
