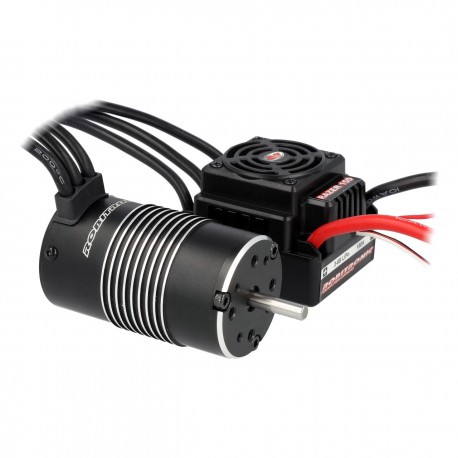

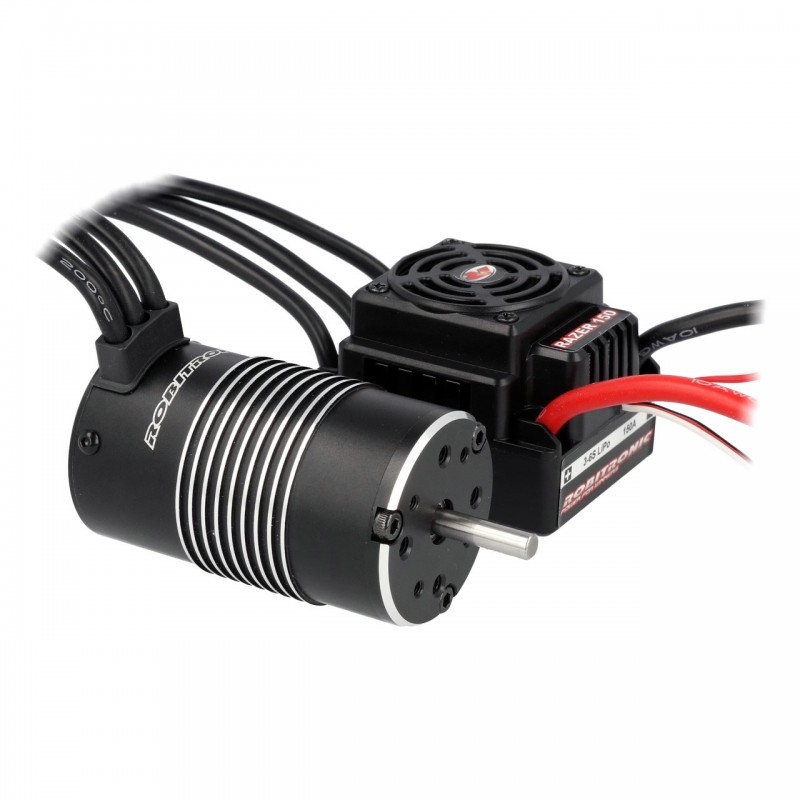

Razer eight Brushless Combo 150A 4268 1600kV View larger

Razer eight Brushless Combo 150A 4268 1600kV

ROBR01260

Robitronic

Robitronic Razer eight Brushless Combo 150A 4268 1600kV

More details

In stock, immediate delivery This product is in low stock

162,00 €


More info

Razer eight 150A ESC

  • Fully waterproof and dustproof
  • ON / OFF switch with setup button
  • S-BEC with 6V and 5A peak current
  • Plug and Play, battery and motor plug already soldered
  • Multiple protections: undervoltage shutdown, thermal protection and protection against signal loss.
  • Simple programming via set button
  • Separate programming port, easy connection of the LED program card (optional)


Razer eight 4268 1600Kv motor

  • 4-pole rotor design for high torque and fast response
  • CNC machined, high-strength aluminum housing for optimum heat dissipation
  • Motor winding made of pure, double insulated copper wire
  • Precision ball bearing for best running smoothness and service life
  • Highly flexible silicone connection cable with soldered 4mm plugs
  • High strength and polished 5mm rotor shaft made of steel

Specifications

ESC :

Max current constant/Peak : 150A / 950A
Type: Sensorless
Motor limit : 4s LiPo: Motor 4274, <=3000KV
6s LiPo: Motor 4274, <=2400KV
Internal resistance : 0.00035 Ohm
LiPo / NiMH cells: 3-6s LiPo / 8-18 éléments MiMH
S-BEC: 6V/5A
Programmation port : Yes
Dimensions : 59.5x48x42mm
Weight : 178g
Usage : 1/8 Onroad, Offroad

Motor :

  • Kv : 1600
  • LiPo cells : 2S-6S
  • Poles : 4
  • Shaft : 5x18mm
  • Ext. diameter : 42 mm
  • Length : 68 mm
  • Weight : 338 g
  • Usage : 1/8 Buggy, SCT, Truck, MT

Data sheet
  • Manufacturer : Robitronic
