> QuicRun Outer 3530SL-1700kV
Nieuw QuicRun Outer 3530SL-1700kV Bekijk groter

QuicRun Outer 3530SL-1700kV

HW30404851

Hobbywing

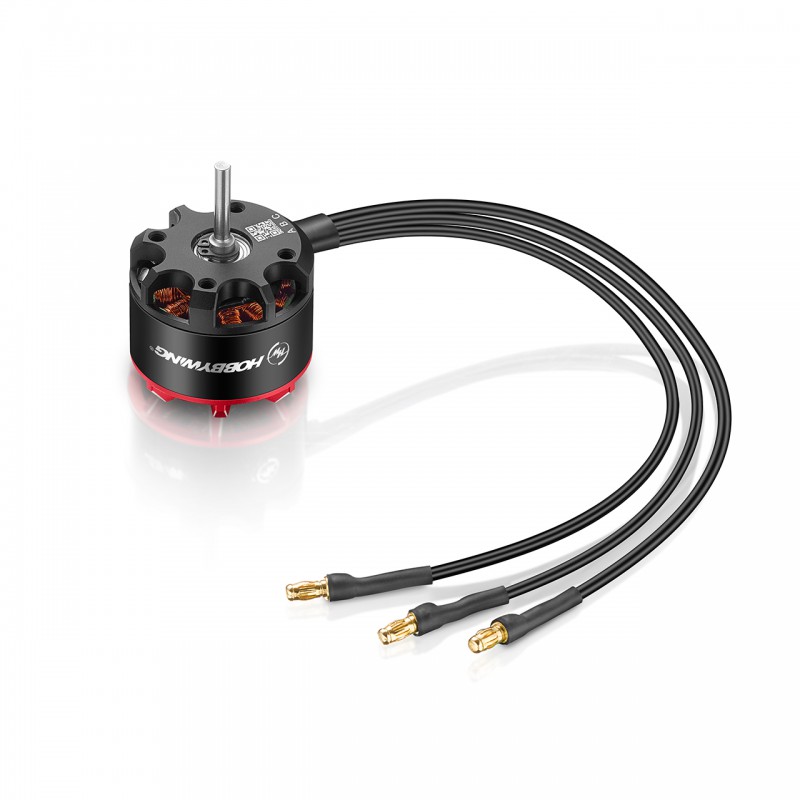

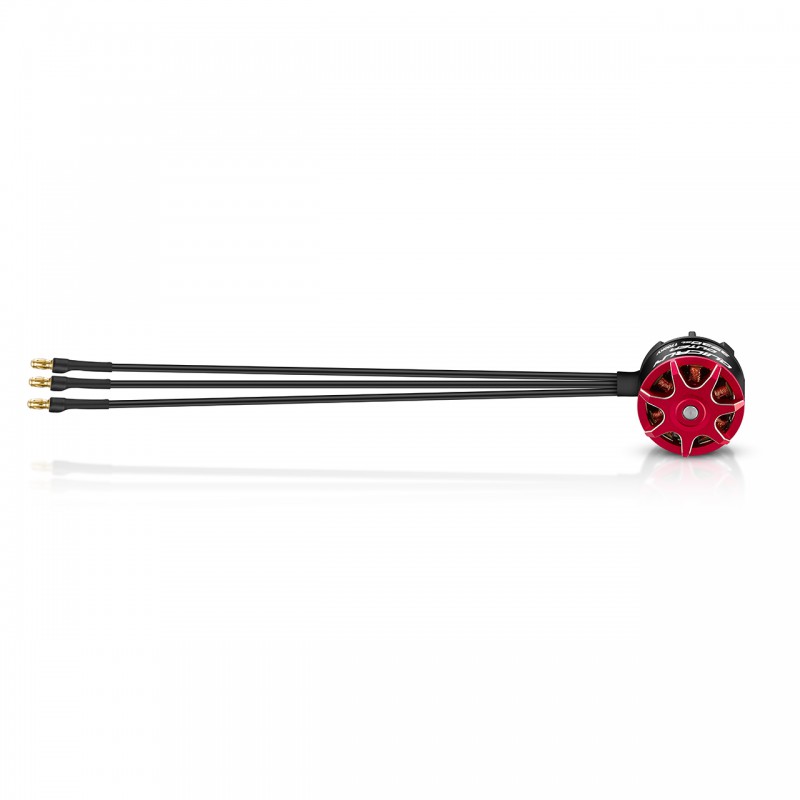

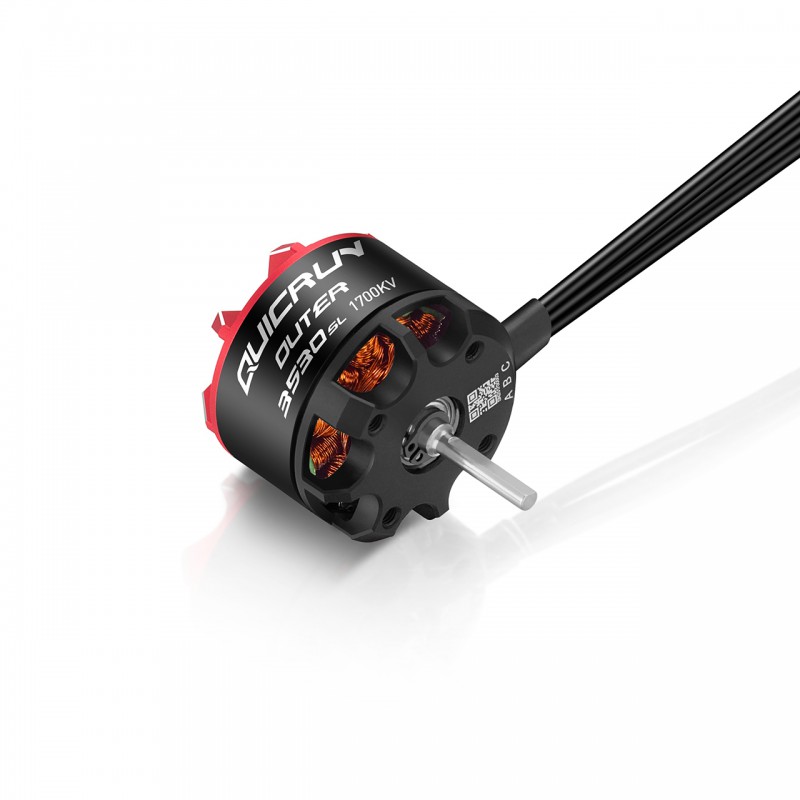

Hobbywing QuicRun Outer 3530SL-1700kV brushless motor

Meer details

Leverbaar binnen +/- 9 dagen Leverbaar binnen +/- 9 dagen

37,99 €


Meer informatie

The Hobbywing QuicRun 3530SL 1700kV is a waterproof and dustproof 1/12–1/10 crawler motor designed for smooth, quiet and highly efficient operation.

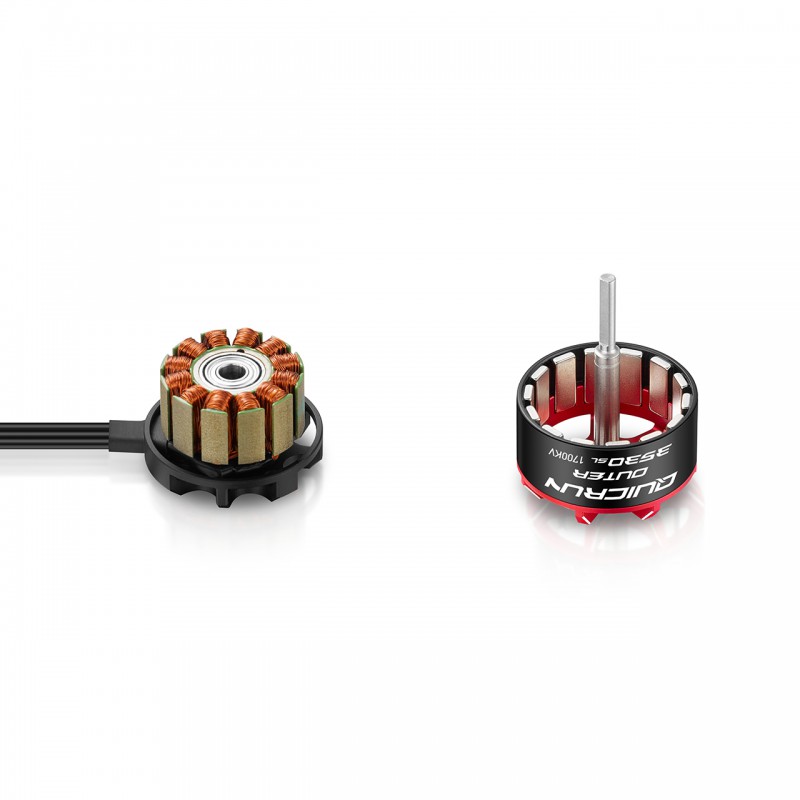

Its outer-rotor brushless design provides excellent torque, precise control and low temperatures, making it ideal for technical crawling and long trail sessions.

Compatible with 2S–4S LiPo and delivering up to 430 W of output, this motor pairs perfectly with ESCs such as the Hobbywing WP 10BL80.

Key features
  • Outer-rotor brushless motor for high torque and smooth throttle control.
  • Waterproof & dustproof – ready for harsh crawler environments.
  • Efficient, low heat, extended runtime and quiet operation.
  • Rated at 1700 kV – ideal for 1/10 and 1/12 crawlers.
  • Compatible with 2S–4S LiPo batteries.
Specifications
KV Rating 1700 kV
LiPo Compatibility 2S–4S
No-load Current Approx. 4 A
Max Output Power Approx. 430 W
Current at Max Power Approx. 34 A
Dimensions 35 × 30 mm
Shaft Size 3.175 × 15.5 mm
Poles 14
Weight Approx. 102 g
Recommended Application 1/10 & 1/12 Crawlers (ideal with WP 10BL80 ESC)
Datasheet
  • Manufacturer : Hobbywing
