> Servo Coreless HV High torque 32.0kg/0.15sec @7.4V
Nieuw Servo Coreless HV High torque 32.0kg/0.15sec @7.4V Bekijk groter

Servo Coreless HV High torque 32.0kg/0.15sec @7.4V

SRTCH635S

SRT

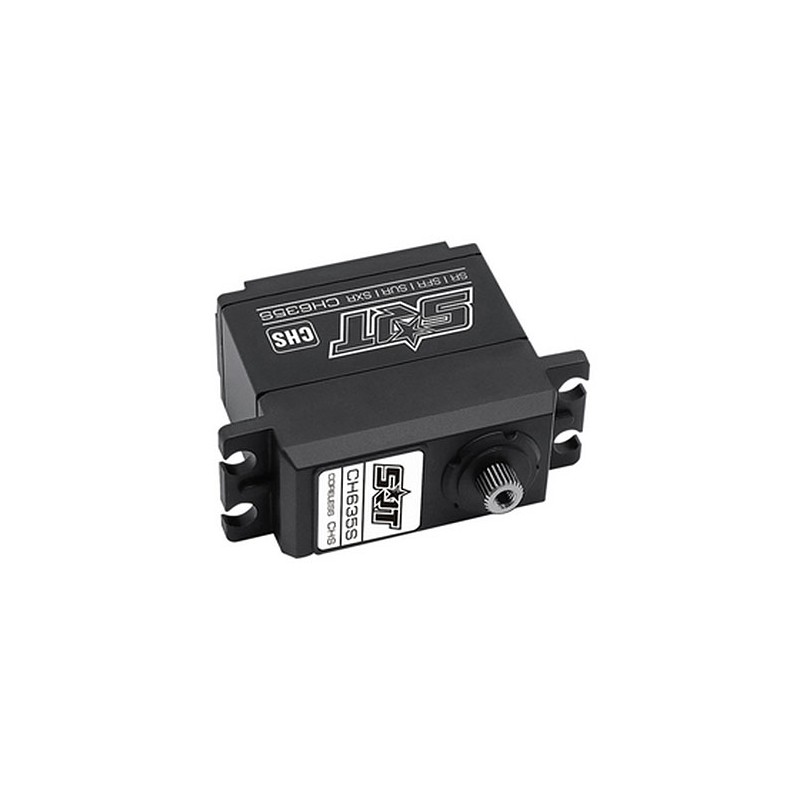

SRT CH635S Servo - HV - Coreless - 32 kg.cm

Meer details

En stock This product is in stock at our warehouse

57,99 €


Meer informatie

Servo for 1/10 Crawler

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Key features
  • Incredible efficiency and low power consumption
  • Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications
  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.16 sec/60 degrees at no load
  • operating speed (7.4v): 0.15 sec/60 degrees at no load
  • operating speed (8.4v): 0.14 sec/60 degrees at no load
  • stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
  • stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
  • stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
  • weight: 69.0g (2.43 oz)
  • connector wire length: jr 300 mm

Datasheet
  • Manufacturer : SRT
