V14 2,4GHz ELRS LBT Radio (Multimode - M2)

HR1024

HelloRadio

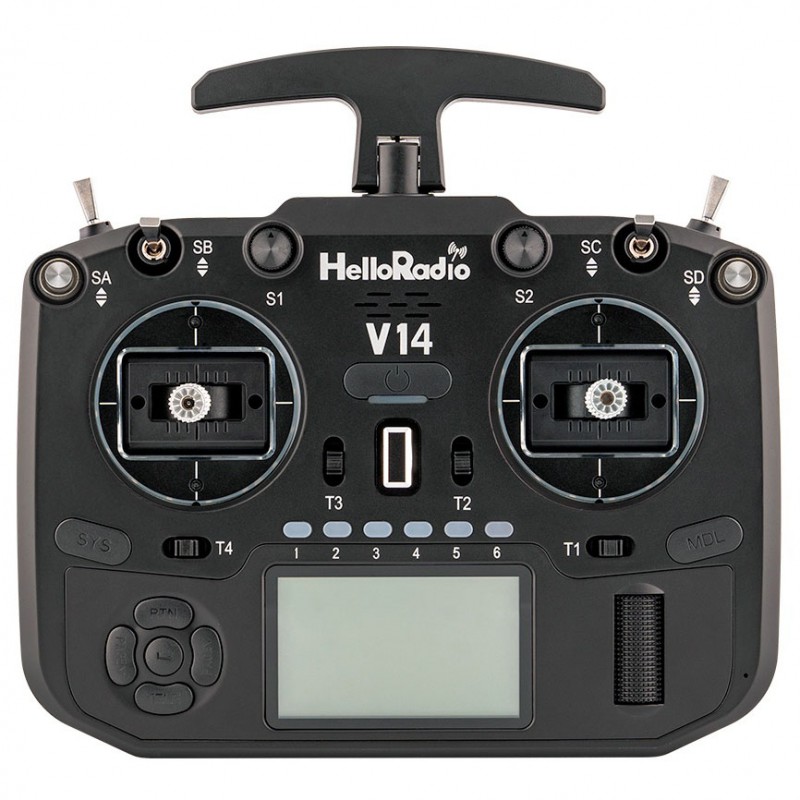

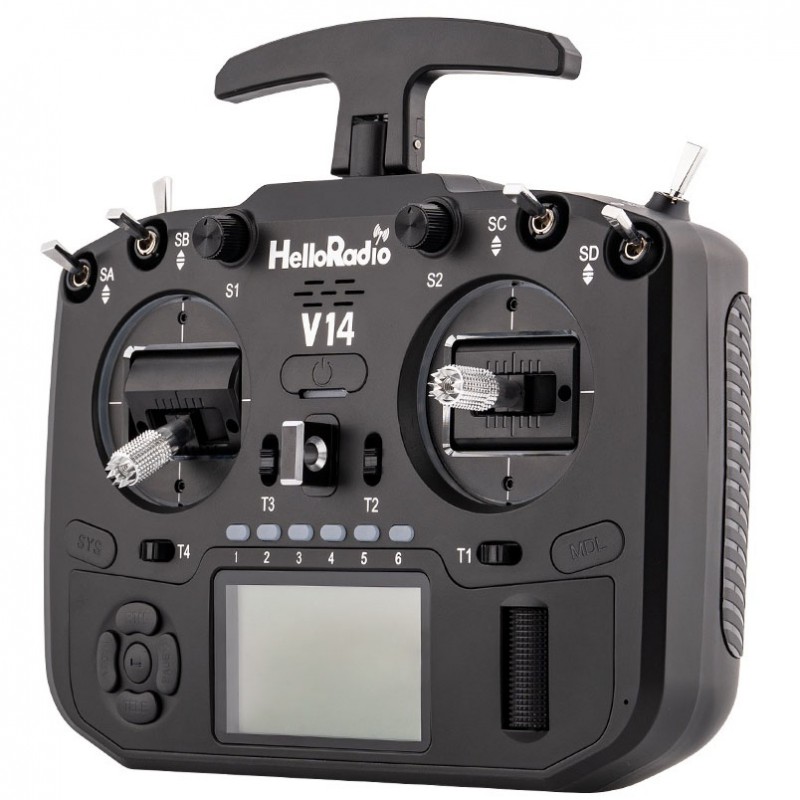

HelloRadio V14 2,4 GHz Transmitter - ELRS LBT - Mode 2

Meer details

En stock This product is in stock at our warehouse

129,00 €


Meer informatie

The HelloRadio V14 remote control combines cutting-edge technology with sophisticated design, giving you complete control. Equipped with the open-source EdgeTX system and an LED touchscreen, it opens up entirely new possibilities. Intelligent safety features, flexible module compatibility, and precise motion control ensure you maintain complete control at all times.

Open-Source System EdgeTX

The V14 comes pre-installed with the EdgeTX open-source firmware. EdgeTX is an open-source firmware for remote control transmitters used in RC applications such as model airplanes, drones, model ships, and model vehicles. It is highly customizable and allows users to configure their transmitters and adjust the settings to their individual preferences and specific needs.
EdgeTX supports a wide variety of RC protocols, making it a popular choice in the RC community. Its flexible and powerful features make it a versatile tool for advanced users looking to take their RC activities to the next level.


ELRS Radio System

The V14 is offered with an internal ELRS RF module. ExpressLRS (ELRS) is an open-source radio system that offers high update rates and low latency. It is ideal for all RC applications where fast response times are critical.


T-Antenna

The newly developed and patented T-antenna ensures excellent signal quality and increased range. The foldable T-antenna also serves as a carrying handle.

V14 versions table

Feature V14 V14 PRO V14 MAX V14 MAX R9
Sensors Hall Hall Hall RDC90
Stick unit material Plastic Plastic CNC Metal CNC Metal
Internal RF Module ELRS ELRS ELRS or 4N1 ELRS or 4N1
Internal RF Module Power max. 250 mW (LBT max. 100 mW) max. 1000 mW (LBT max. 100 mW) max. 1000 mW (LBT max. 100 mW) max. 1000 mW (LBT max. 100 mW)
Multicolor No No Yes Yes
Display LCD LCD OLED OLED
AI Voice control No Yes Yes Yes
Motion Control No Yes Yes Yes
Safety features No Yes Yes Yes
Programmable LED sticks No Yes Yes Yes
Key features
  • Open-source EdgeTX system
  • 2.4-inch LCD display
  • Foldable T-antenna for excellent signal quality and increased range.
  • Multimode control arrangement – ​​selection between Mode 1, 2, 3, or 4
  • Mode switches 1 to 6 can be configured as desired
  • Internal ELRS RF module
  • Compatible with external modules with a Micro-JR slot
  • Dual serial hardware port for communication with the external RF module
  • Reverse control circuitry supports multiple types of external RF modules
  • Charging circuit automatically stops charging if an overvoltage is detected in the battery cells
  • Protection circuit to prevent damage from reversed power supply connection
  • USB-C port for connecting to the PC
  • 3.5 mm jack for connecting a teacher/student cable
  • 3.5 mm jack for connecting headphones
  • USB-C port for connecting a charging cable
  • SD card slot with a 512 MB Micro SD card
Specifications
  • Dimensions: 182 x 132 x 54 mm
  • Weight: 470 g (without battery)
  • Transmission frequency: 2.400 GHz-2.480 GHz
  • Internal RF options: ExpressLRS
  • Transmission power: LBT max. 100 mW
  • Supported protocols: Module dependent
  • Operating current: 260 mA
  • Operating voltage: 6.6-8.4 V DC
  • Radio firmware: EdgeTX
  • Channels: 14 channels
  • Display: Black and white LCD 128 x 64 pixels
  • Sensors: Hall
  • Module bay: Compatible with the following micro JR modules: Multi-protocol modules, Ex-pressLRS, Ghost, TBS Crossfire, TBS Tracer, etc.
  • Update method: Supports USB-C for online updates / SD card for offline updates
  • Battery bay: Standard 18650 batteries (2 batteries) or HelloRadio TX battery pack

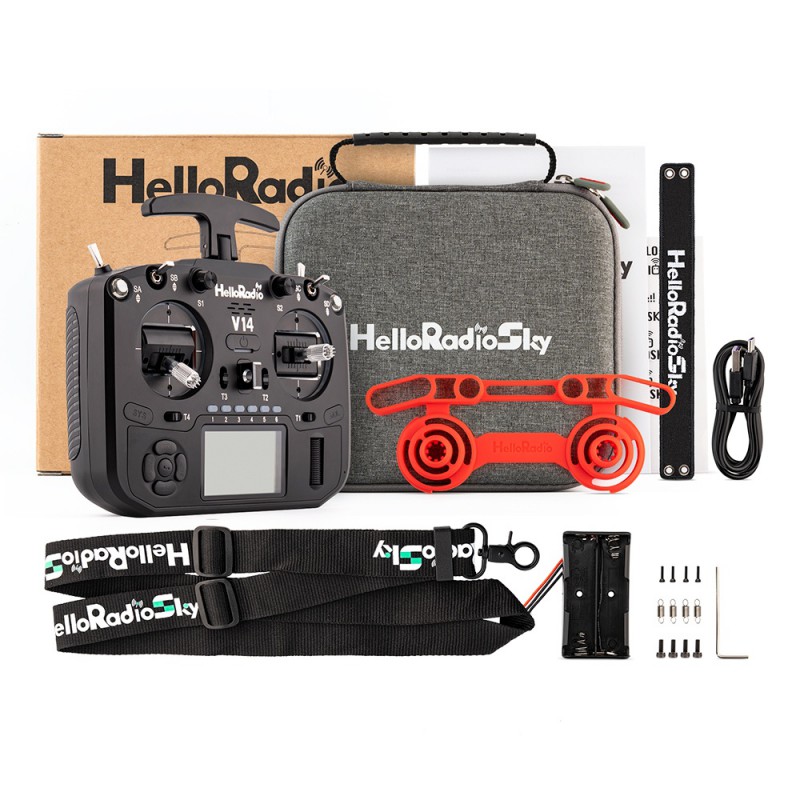

Composition Kit
  • 1x V14
  • 1x Carrying Case
  • 1x Gimble Protector
  • 1x Hand Grip
  • 1x Transmitter Strap
  • 1x USB-C Cable
  • 1x 1.5 mm Allen Wrench
  • 1x 18650 Battery Case
  • 1x Screen Protector
  • 4x Low-Tension Springs
  • 1x Quick Start Guide
  • 1x Sticker
Datasheet
  • Manufacturer : HelloRadio
