Platinum Motor 60x94 8mm 5230SL 380kV 6-8s Lipo

Model: HW30416202

Manufacturer: Hobbywing

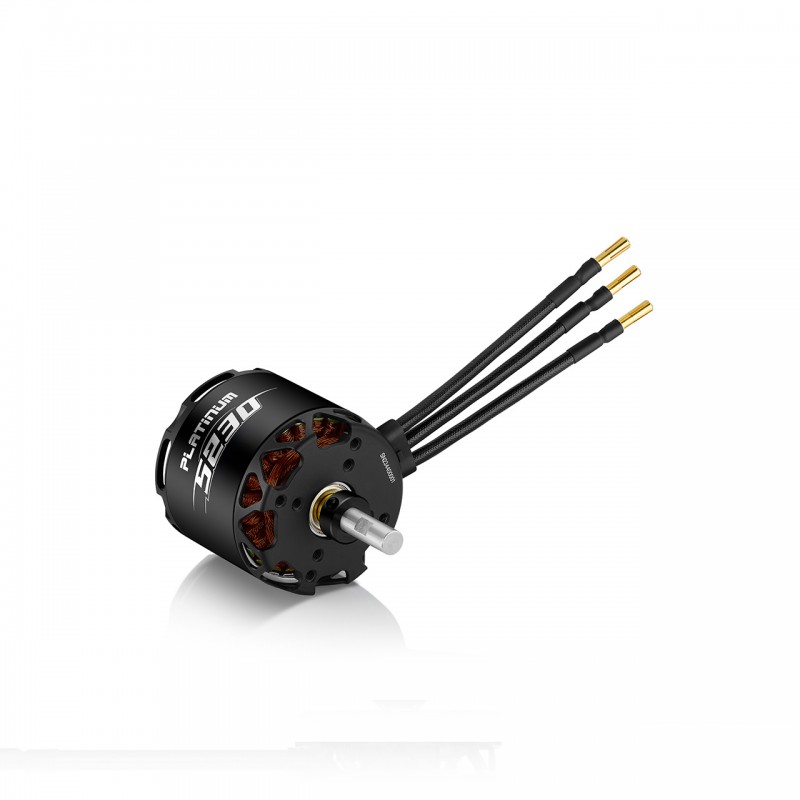

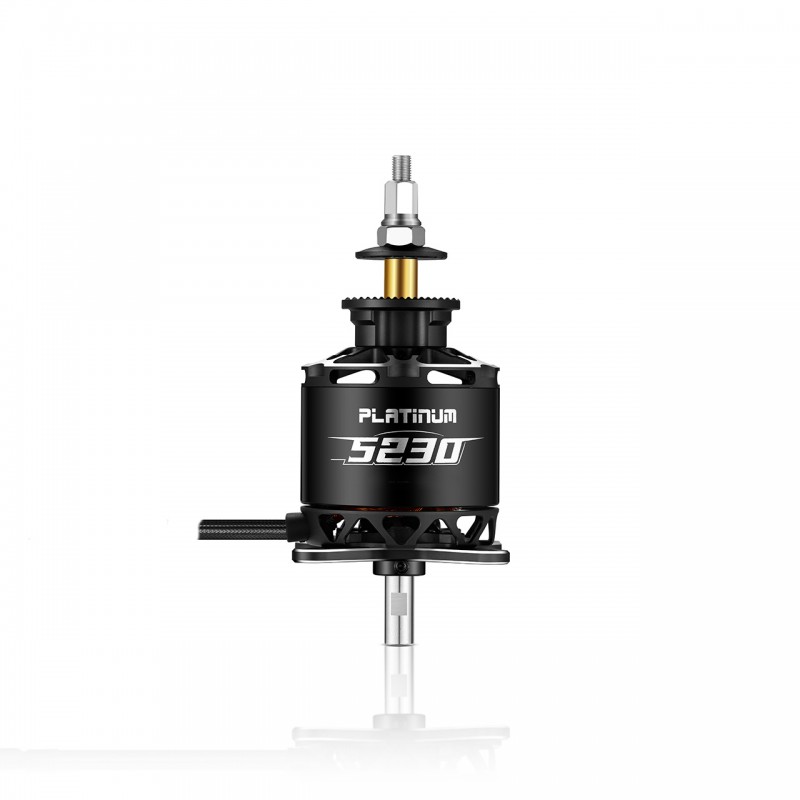

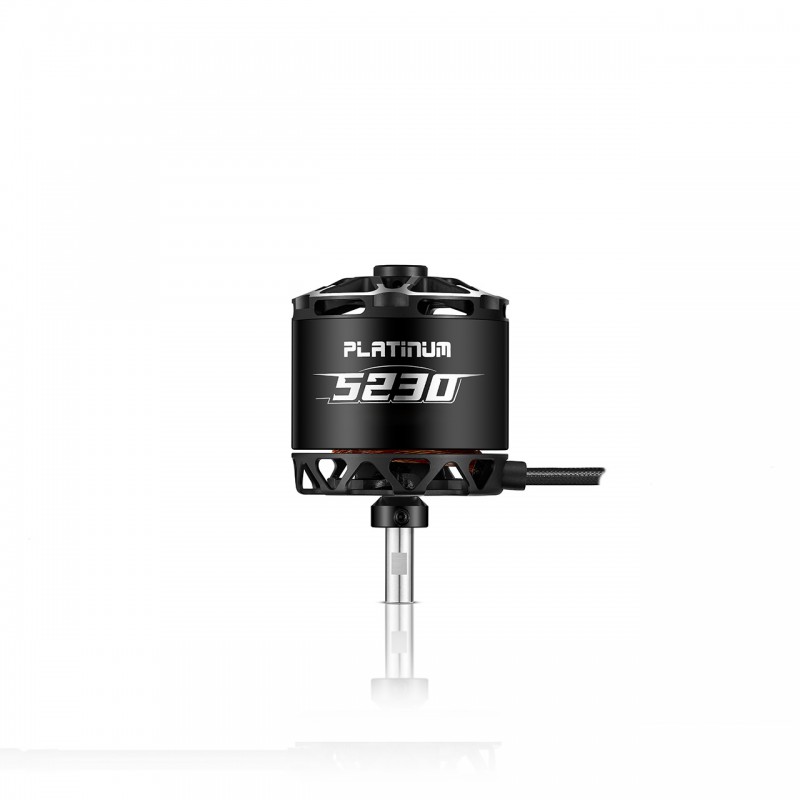

Hobbywing brushless Platinum Motor 60x94 8mm 5230SL 380kV 6-8s Lipo

Beschikbaarheid: Dit artikel is niet op voorraad. Toevoeging aan de backorder mogelijk.

153,99 €

(Aangeraden verkoopprijs incl. BTW)

Vind uw dichtstbijzijnde Beez2b dealer.

Hobbywing 52 Series brushless motor for fixed wing aircraft

Specifications

Model		Platinum 5230SL 380KV
Specifications	Product Number	30416202
	Motor Size	Φ60.2 *93.5mm
	Stator Size	Φ51.7*t30
	Stator process	High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
	Enamelled wire	200℃
	Fiber Screw Thread	Φ22mm-3*M4
	Screw Diameter/Thread	Φ30mm-4M4;Φ44mm-4M4
	Slot& Pole	24N28P
	Dynamic balance	≤10mg
	Bearing	1560ZZ，698ZZ
	Motor axle diameter	8mm
	Isolation test	500V AC high voltage resistance test
	KV	380
	Battery(LiPo)	LiPo-6~8S
	No-load current	4.0A/22.2V
	Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	162A/1min22s
	Max power	4790W/1min22s
	Max thrust	11.49kg
	Resistance	7.8mΩ
	Wire Size	Enamelled Wire Output
	Wire length	100mm
	Weight（With wire）	590g
Recommended Props/ESCs	Recommended ESC	PLATINUM 120A V4 PLATINUM 150A V5
	Recommended ESC	PLATINUM 120A V4 PLATINUM 150A V5	Propeller	6S：19x10E，20x10E，22x10E 8S：17x10E，18x10E，18x12E

Datasheet
