Platinum Motor 50x57 6mm 4130SL 230kV 12s Lipo

Model: HW30416100

Manufacturer: Hobbywing

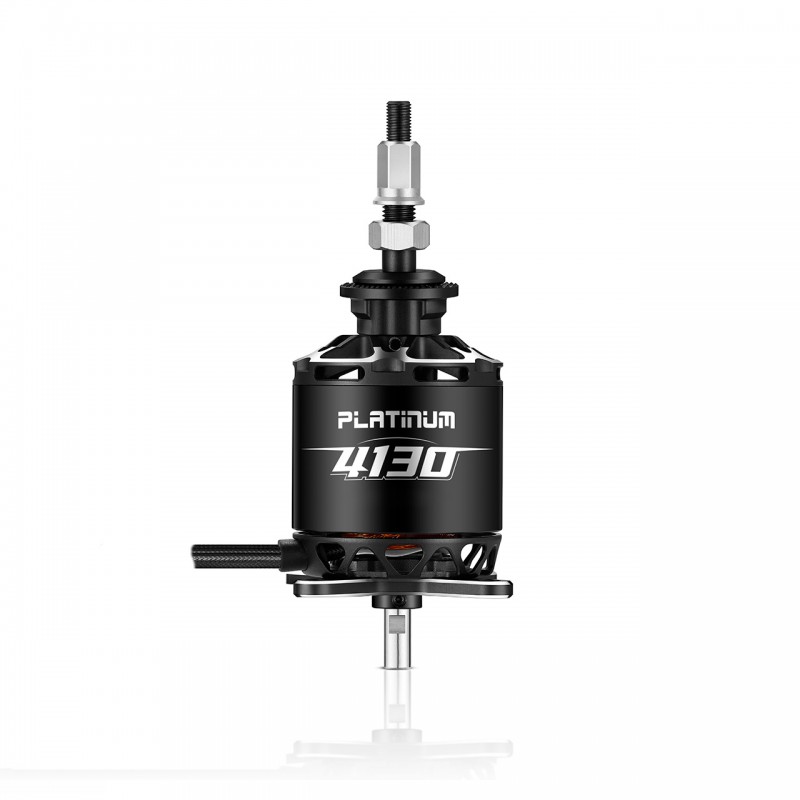

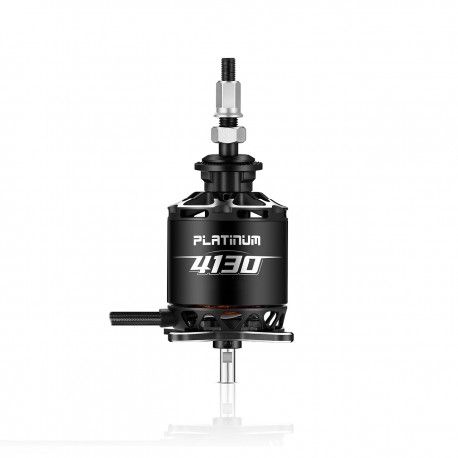

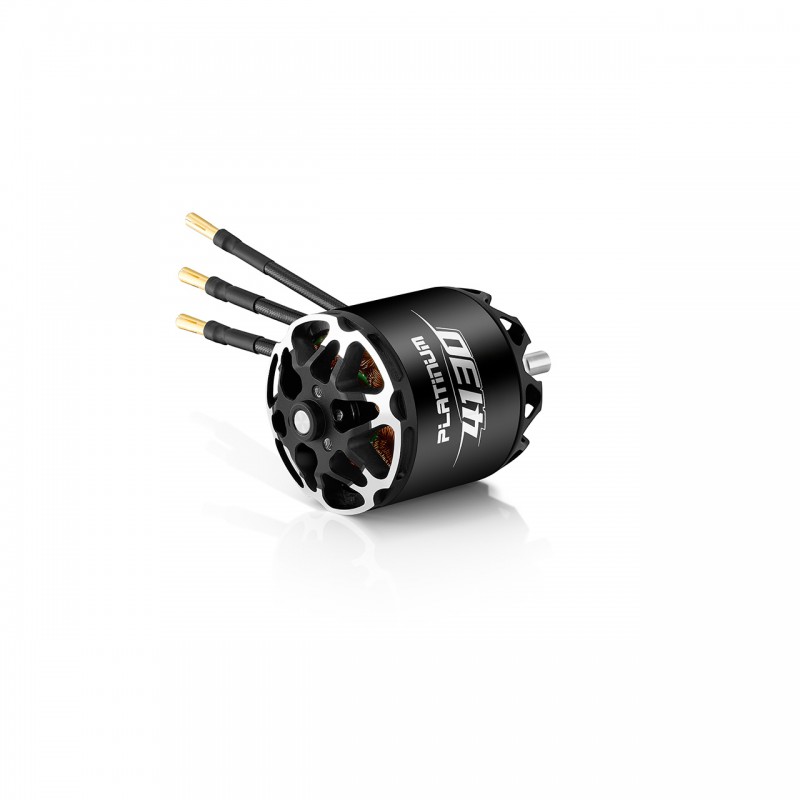

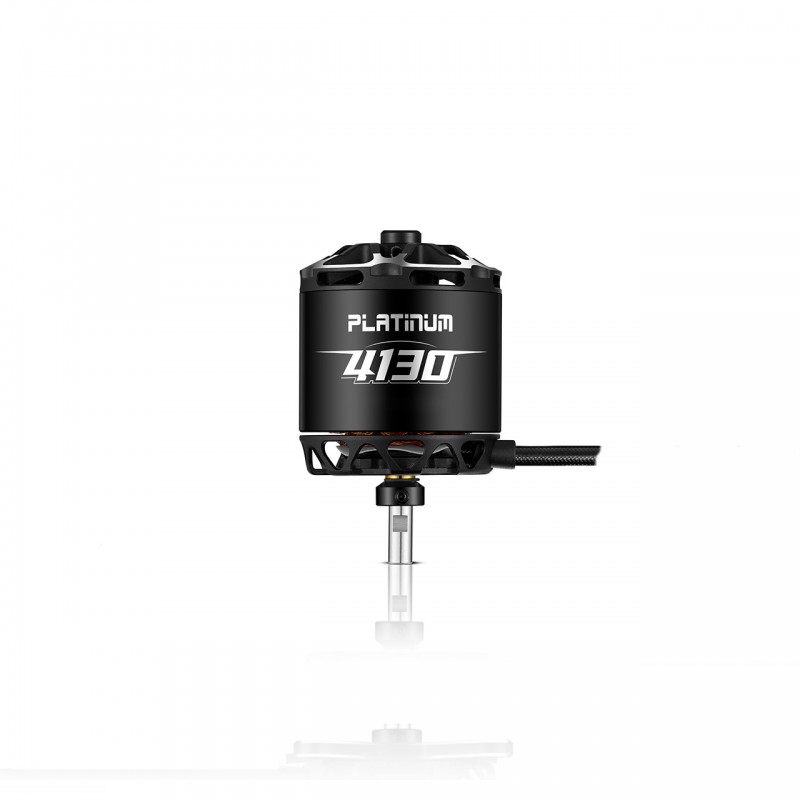

Hobbywing brushless Platinum Motor 50x57 6mm 4130SL 230kV 12s Lipo

Beschikbaarheid: Dit artikel is niet op voorraad. Toevoeging aan de backorder mogelijk.

103,99 €

(Aangeraden verkoopprijs incl. BTW)

Vind uw dichtstbijzijnde Beez2b dealer.

Hobbywing 41 Series brushless motor for fixed wing aircraft

Specifications

Model	-	Platinum 4130SL 230KV
Specifications	Product Number	30416100
	Motor Size	Φ49.5 *82.3mm
	Stator Size	Φ40.6*30mm
	Stator process	High standard silicon steel sheet,180℃ high temperature resistance paint-coat
	Enamelled wire	200℃
	Props mounting dimensions	Φ15mm-3*M3
	Motor mounting dimensions	Φ30mm-4*M4
	Slot& Pole	12N14P
	Dynamic balance	≤10mg
	Bearing	696ZZ
	Motor axle diameter	Φ6mm
	Isolation test	500V AC high voltage resistance test
Specification	KV	230
	Battery(LiPo)	LiPo-12S
	No-load current	1.4A/44.4V
	Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	60.4A/1min2s
	Max power	2678W/1min2s
	Max thrust	9.06kg
	Resistance	43mΩ
	Wire Size	Enamelled Wire Output
	Wire length	90mm
	Weight（With wire）	412g
Recommended Props/ESCs	Recommended ESC	PLATINUM 130A V4
	Recommended ESC	PLATINUM 180A V5
	Propeller	12S：16X6E，16X8E，
	Propeller	17X6E，17X8E，
