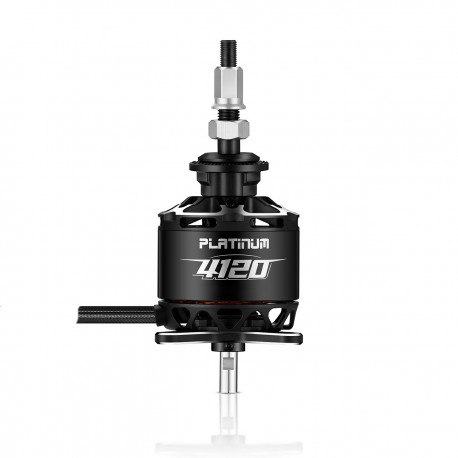

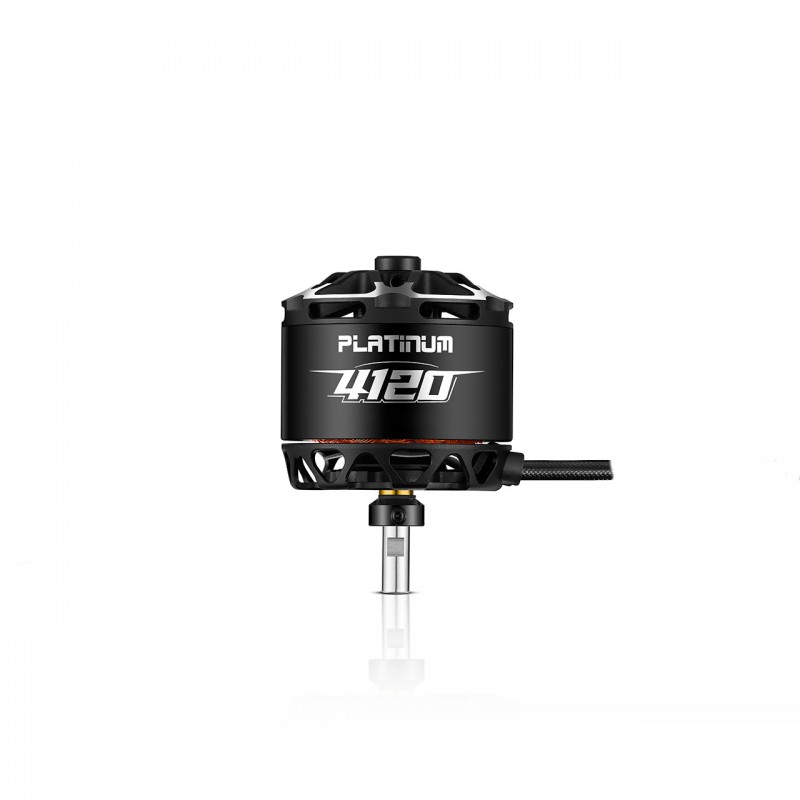

Platinum Motor 50x47 6mm 4120SL 500kV 6s Lipo

Model: HW30416001

Manufacturer: Hobbywing

Hobbywing brushless Platinum Motor 50x47 6mm 4120SL 500kV 6s Lipo

Beschikbaarheid: This product is in stock at our warehouse

96,99 €

(Aangeraden verkoopprijs incl. BTW)

Vind uw dichtstbijzijnde Beez2b dealer.

Hobbywing 41 Series brushless motor for fixed wing aircraft

Specifications

Model	-	Platinum 4120SL 500KV
Specifications	Product Number	30416001
	Motor Size	Φ49.5 *72.3mm
	Stator Size	Φ40.6*20mm
	Stator process	High standard silicon steel sheet,180℃ high temperature resistance paint-coat
	Enamelled wire	200℃
	Props mounting dimensions	Φ15mm-3*M3
	Motor mounting dimensions	Φ30mm-4*M4
	Slot& Pole	12N14P
	Dynamic balance	≤10mg
	Bearing	696ZZ
	Motor axle diameter	Φ6mm
	Isolation test	500V AC high voltage resistance test
Specification	KV	500
	Battery(LiPo)	LiPo-6S
	No-load current	2.6A/22.2V
	Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	102.7A/42s
	Max power	2276W/42s
	Max thrust	7.41kg
	Resistance	17mΩ
	Wire Size	Enamelled Wire Output
	Wire length	90mm
	Weight（With wire）	310g
Recommended Props/ESCs	Recommended ESC	PLATINUM 120A V4
	Recommended ESC	PLATINUM 150A V5
	Propeller	6S：15X6E，15X8E
	Propeller	16X6E，16X8E

Datasheet
