Platinum Pro 150A Regler V5.1 3-8s, 10 A BEC

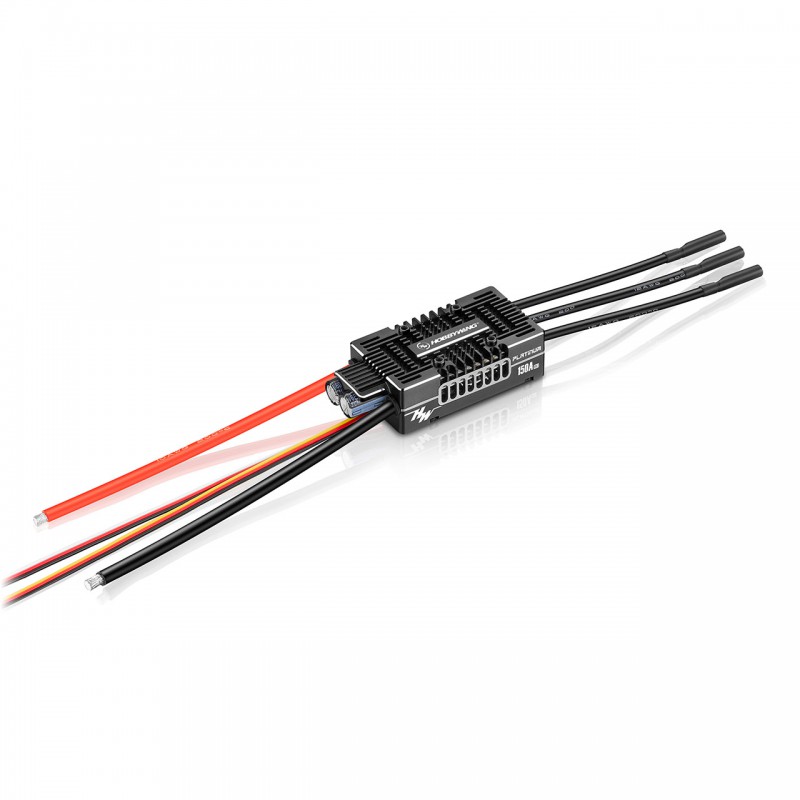

PLATINUM 150A V5.1

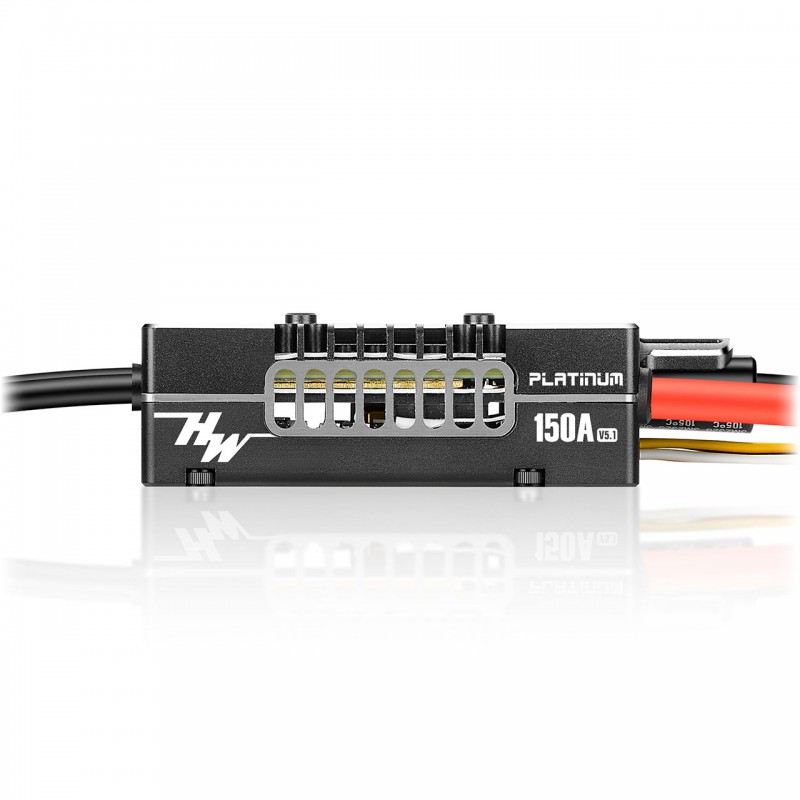

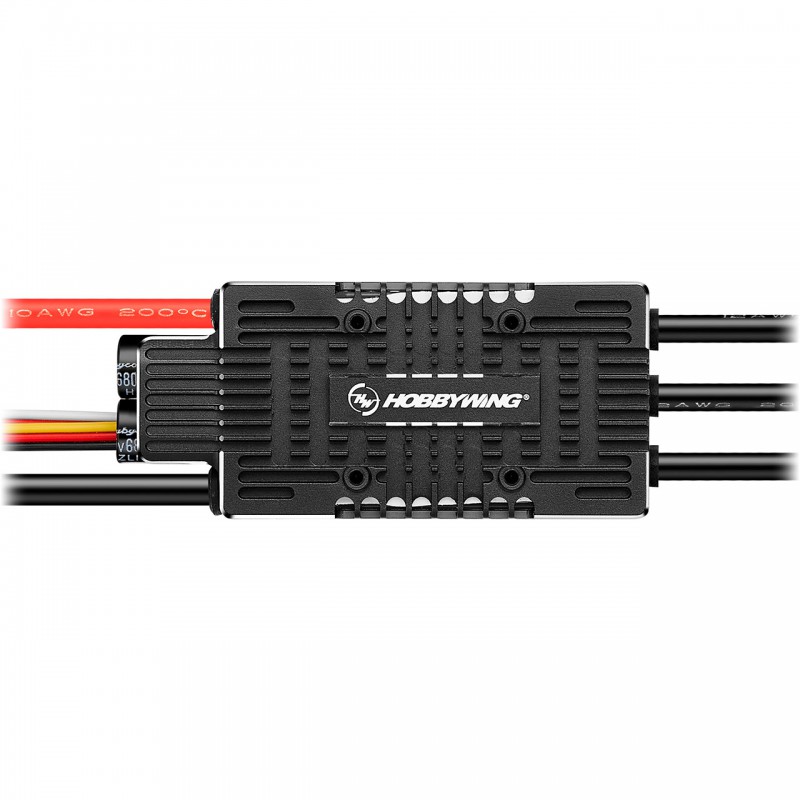

Compact size with efficient heat sink design
Continue to use the heat-dissipation structure of PLATINUM V5,
The ESC is redesigned with a double-sided hollow heat dissipation structure as well as an addition side "window" design.
The air is able to quickly pass through the inside of the ESC and take away the heat generated by the internal circuit board.

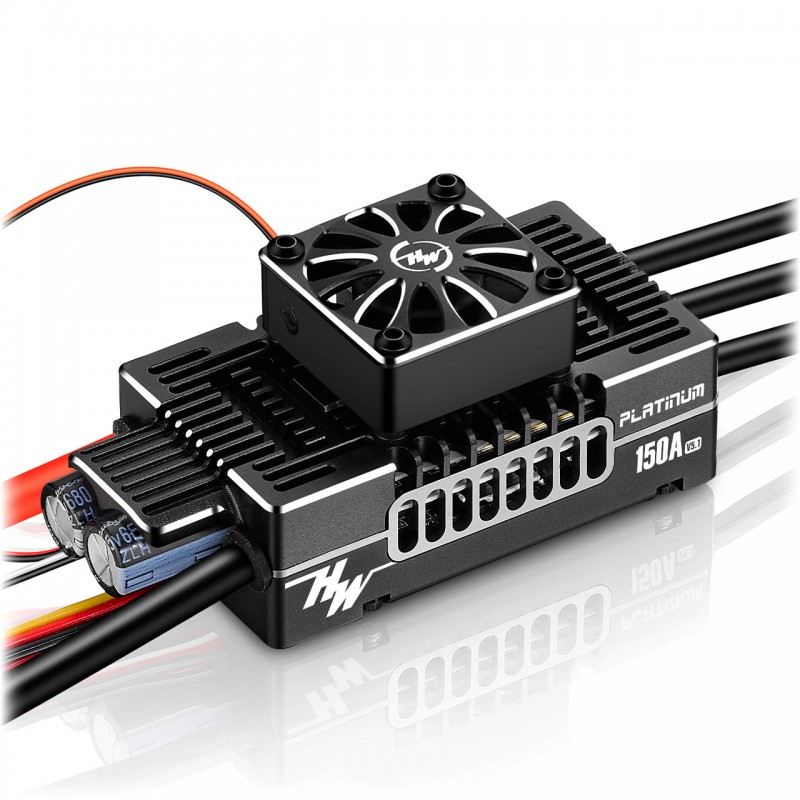

This innovative air duct design is able to generate strong airflow on the entire ESC from the cooling fan.
Overall, significantly improving the capability of heat dissipation.

Built-in 12V Switch BEC for greater output capability
The high-power BEC has added an anti-reverse circuit to use parallel with external batteries at the same time to provide double protection.

Constant speed performance upgrade, Ultimate flight experience
The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and more consistent, maximizing the RPM accuracy to enhance overall performance.
Compared with the previous ESC,The RPM accuracy algorithm makes the ESC more powerful and more consistent.The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits them personally!

Support multiple protocols,versatile
SUPPORT : Mikado VBar System，Futaba S.BUS2 and other devices' data return protocols.
Users are able to adjust parameters on the remote-control device (VBar protocol support) or check the working status of the ESC at any time.

Synchronous rectification technology multiple advantages
The ESC has synchronous rectification driving efficiency optimization technology
DEO — DRIVING EFFICIENCY OPTIMIZATION

Multiple protection, double security
It has multiple protection functions, to effectively prolonging the lifespan of the ESC.

• Start-up protection
• Current protection
• Temperature protection
• Overload protection
• Throttle signal loss protection
• Input voltage abnormality protection
