Ezrun MAX4 HV Combo 70125 560kV

Model: HW38020369

Manufacturer: Hobbywing

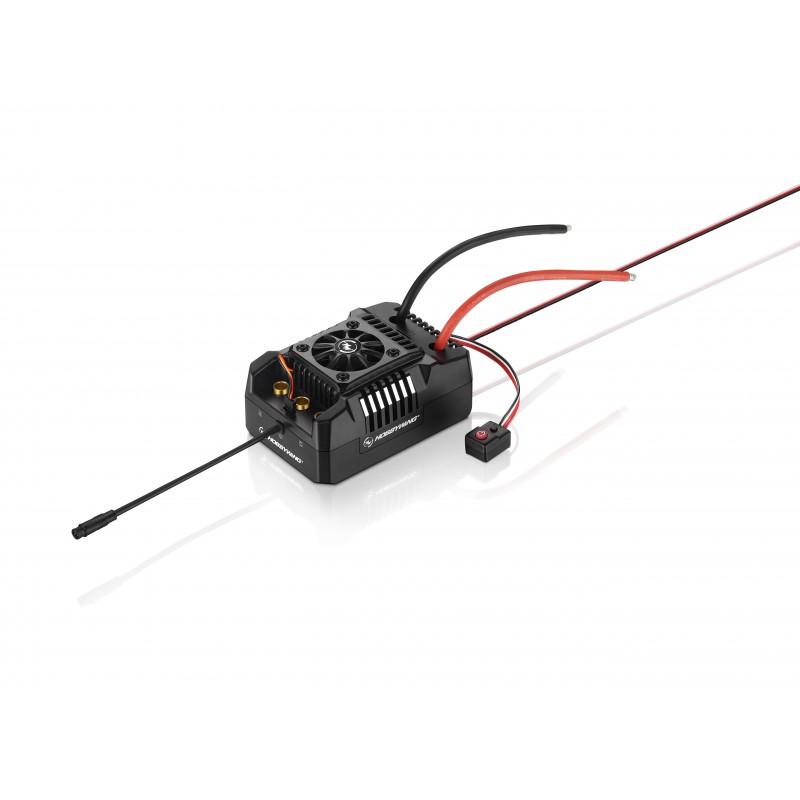

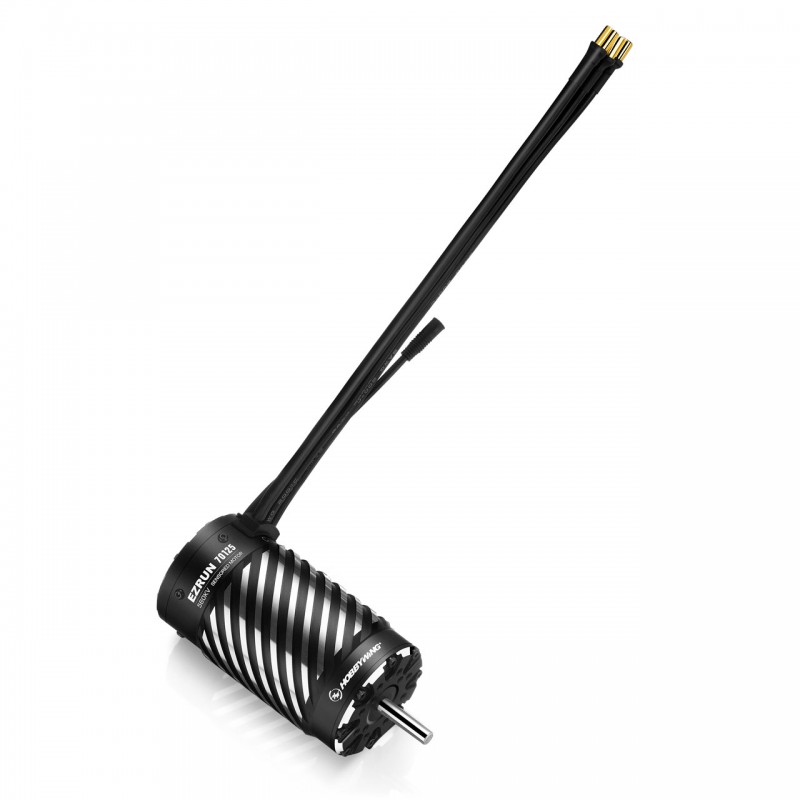

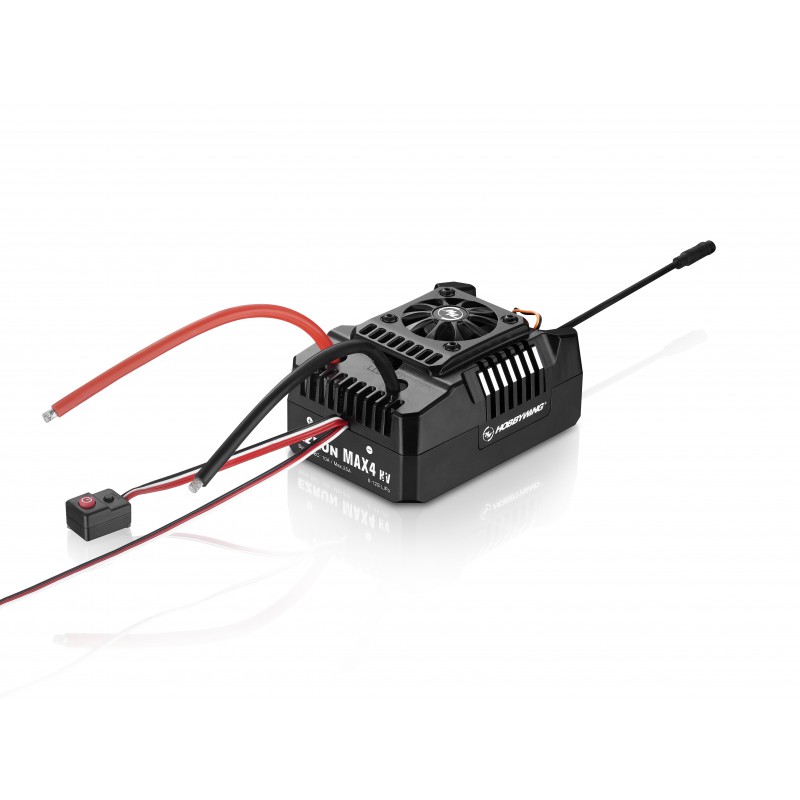

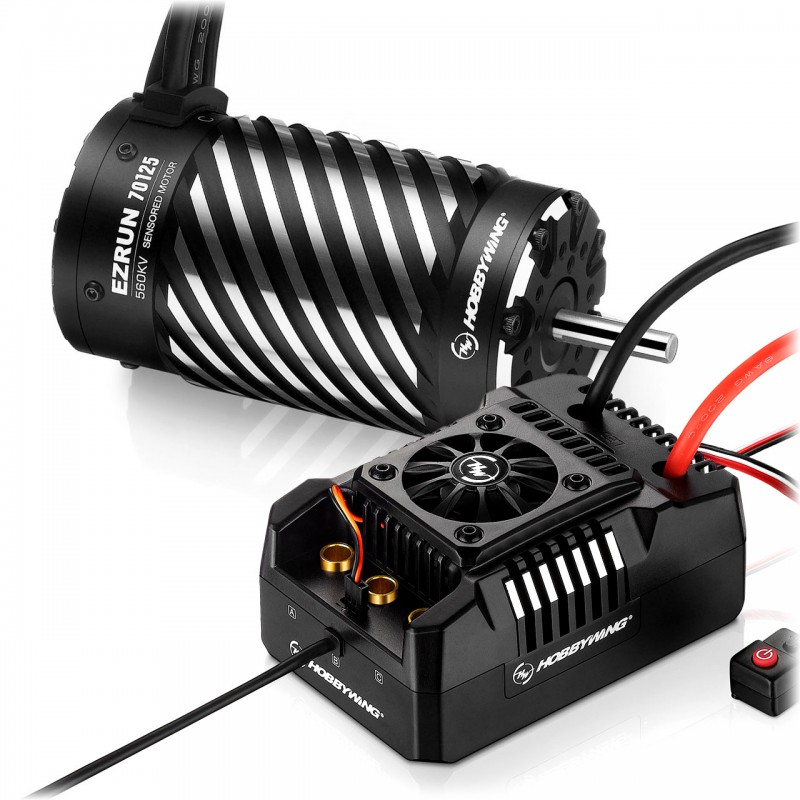

Hobbywing Ezrun MAX4 HV Brushless Combo 70125 560kV

Beschikbaarheid: This product is in stock at our warehouse

644,99 €

(Aangeraden verkoopprijs incl. BTW)

Vind uw dichtstbijzijnde Beez2b dealer.

Specifications

Product Name		EzRun Max4 HV
Product Number		30104002
Type	Scale	1/5^th
	Brushed/Brushless	BL
	Sensored/Sensorless	SD
	Waterproof	WP
Specifications	Cont./Peak Current	300A/2000A
	Input Voltage	6-12S Lipo
	BEC Output	6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Wires & Connectors	Input Wires	Red-8AWG-200mm1/Black-8AWG-200mm1
	Output Wires
	Input Connectors	No
	Output Connectors	8.0mm Gold (female)
ESC Programing via	SET Button on ESC	Not Supported
	LED Program Box	Supported
	LCD Program Box	Supported
	WiFi Module	Supported
	OTA Programmer	Supported
	Program Port	FAN/Program Port
Fan	Size	50x50x15mm
	Voltage Range	6-8.4V
	Powered by	Powered by BEC
Data Recording	Extreme value	Supported
	Real-time Data	Supported
	Historical data (Graph)	Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size	125mmx85mmx61.7mm
Size & Weight	Weight	775.4g
Applications	Motors	Sensored brushless motors / Sensorless brushless motors
	Vehicles	1/5^th off-road, trucks (heavy loads)
	KV Rating/T Count	12S LiPo: KV ≤ 600KV(70125 Size Motors)

Motor :

Datasheet
