> Servo Coreless HV for 1/12 CNC aluminium case 8.0kg/0.065sec
Servo Coreless HV for 1/12 CNC aluminium case 8.0kg/0.065sec Bekijk groter

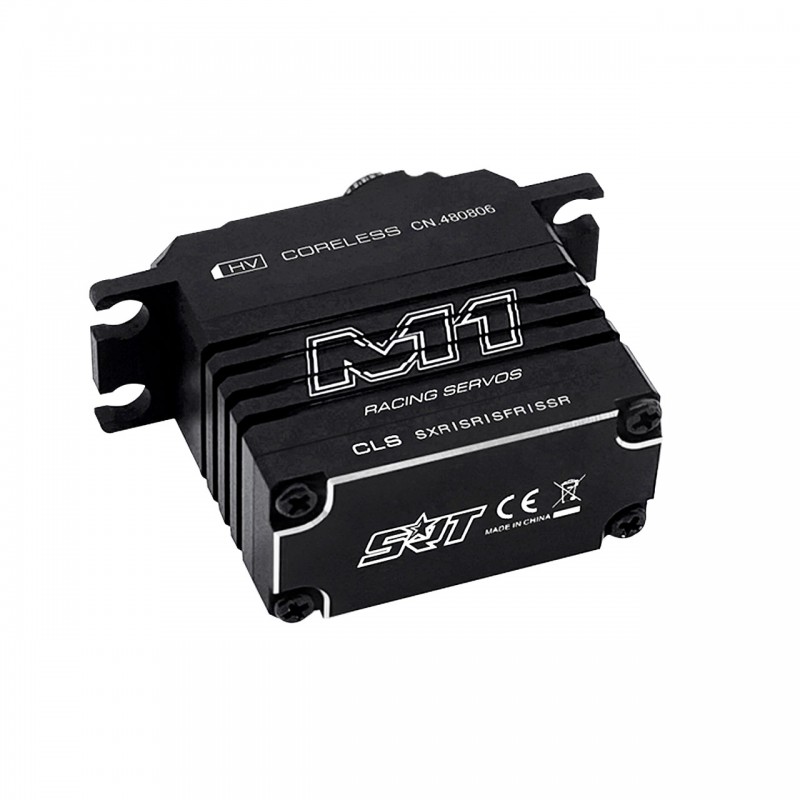

Servo Coreless HV for 1/12 CNC aluminium case 8.0kg/0.065sec

SRTM11

SRT

SRT M11 for 1/12 Pan Car - Coreless, 8kg.cm

Meer details

En stock, envoi immediat This product is in low stock at our warehouse

80,99 €


Meer informatie

Usage : 1/12 Pan Car

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.


All of SRT servos  are available to be customized for easy installation by OEM order.

Key features
  • Special 1/12 pancar servo
  • Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
  • Incredible efficiency and low power consumption
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 333hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.07 sec/60 degrees at no load
  • operating speed (7.4v): 0.065 sec/60 degrees at no load
  • operating speed (8.4v): 0.055 sec/60 degrees at no load
  • stall torque (6.0v): 7.0kg.cm (97.2 oz/in)
  • stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
  • stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
  • weight: 28.0g (1.0 oz)
  • connector wire length: jr 170 mm
Datasheet
  • Manufacturer : SRT
