> DISC.. Explorer bee FPV wing Advanced Kit (w/ servos, esc, motor & p
DISC.. Explorer bee FPV wing Advanced Kit (w/ servos, esc, motor & p Bekijk groter

DISC.. Explorer bee FPV wing Advanced Kit (w/ servos, esc, motor & p

WINW900A

Windrider

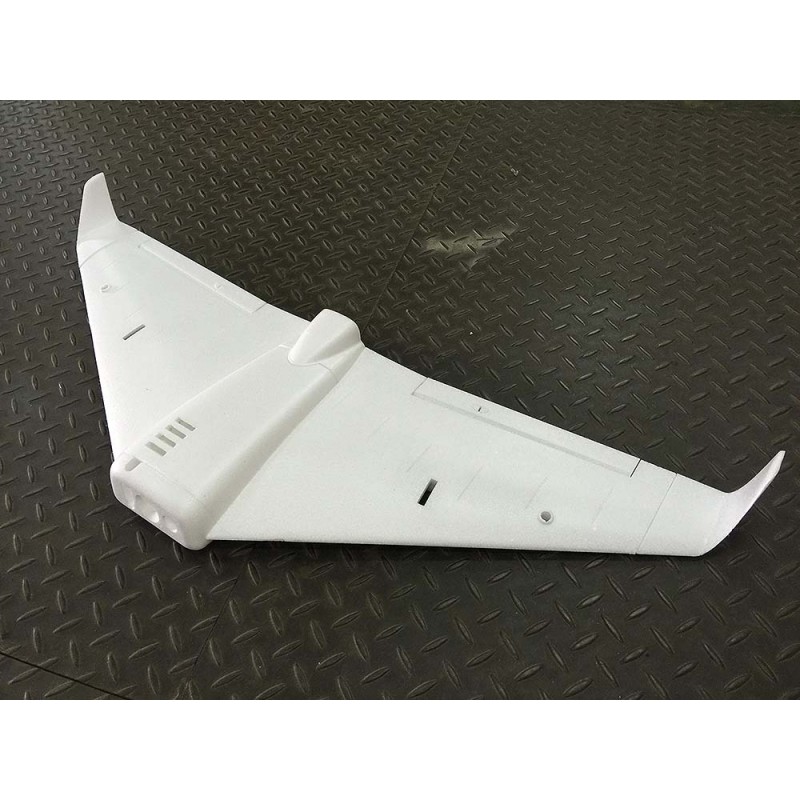

Explorer Bee is the brand new Windrider flying wing, specially designed for FPV. This is advanced kit with servos, motor and ESC.

Meer details

Niet meer gedrukt Niet meer gedrukt

179,62 €


Meer informatie

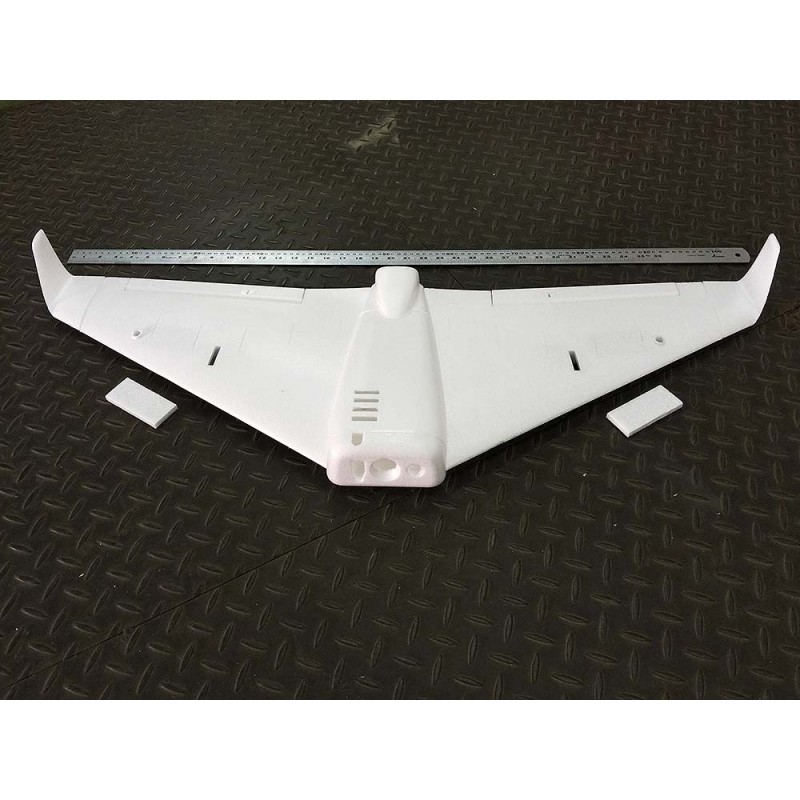

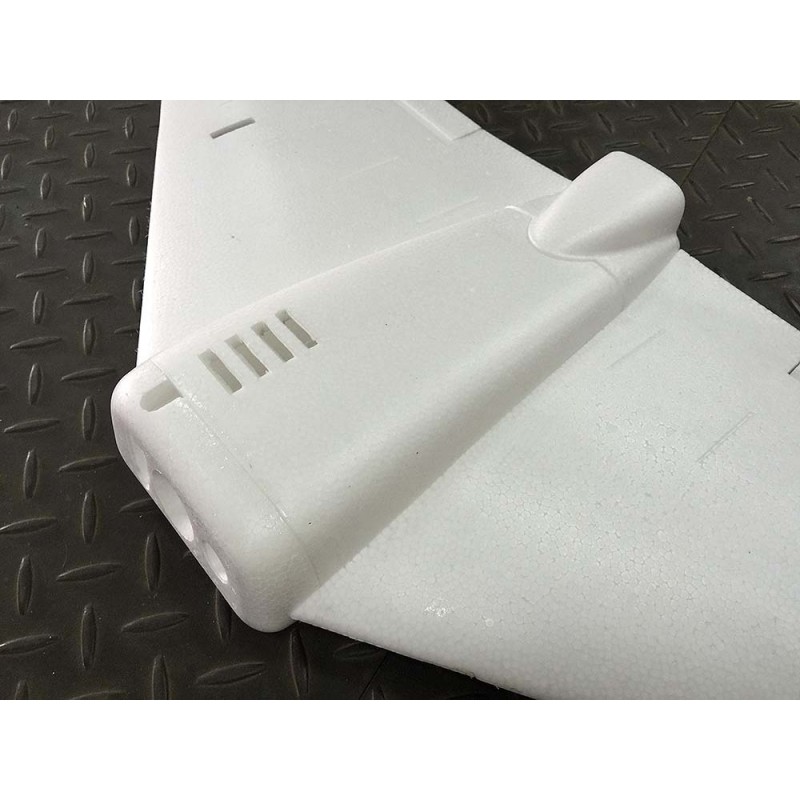

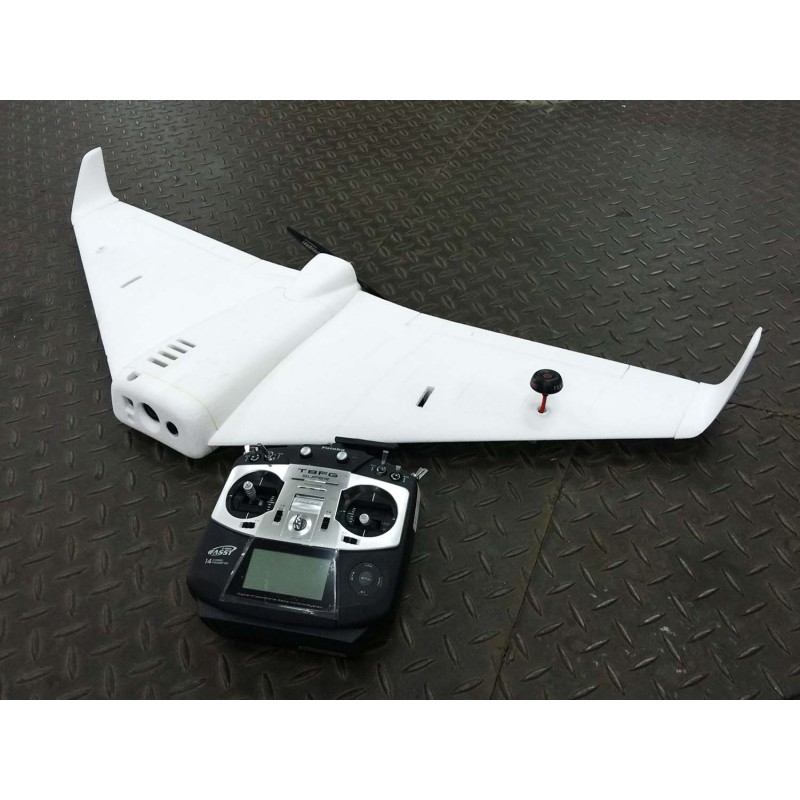

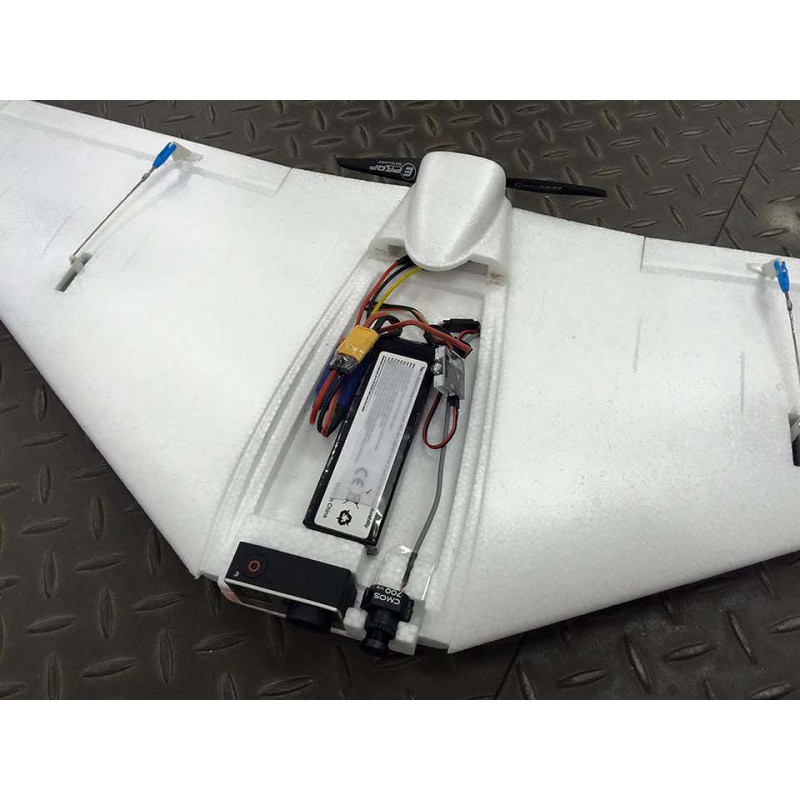

With a wingspan of 1020 mm, the Explorer Bee is designed to receive a FPV camera to send the live video to your screen or headset, and a HD camera to record high quality footages. Both camera are in the nose of the model.

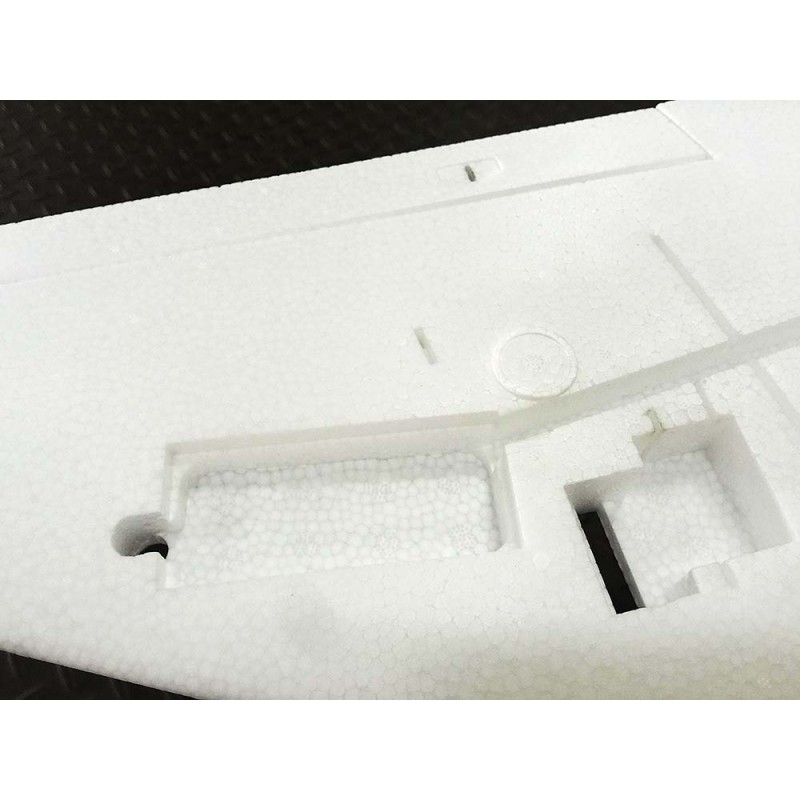

The video transmitter antenna is fitted on the left wing, and the receiver and his antennas are in the right wing, so the VTx and the Rx are as far as possible one of each other.

Specifications
  • Wingspan : 1020 mm
  • AUW (including GoPro 1 battery) : 870 g
  • Airfoil : RSB 22
  • Radio : 3 channels with elevon mixing
  • Servos : 2 x servos 9 g
  • Battery : Max : LiPo 3S 3600 mAh
  • ESC : Minimum 30A
  • Motor : Kv 1200 à 1600
  • Propeller : Max : 9 x 5"
  • Material : EPO
  • FPV camera : GoPro or similar size action cam (not included)

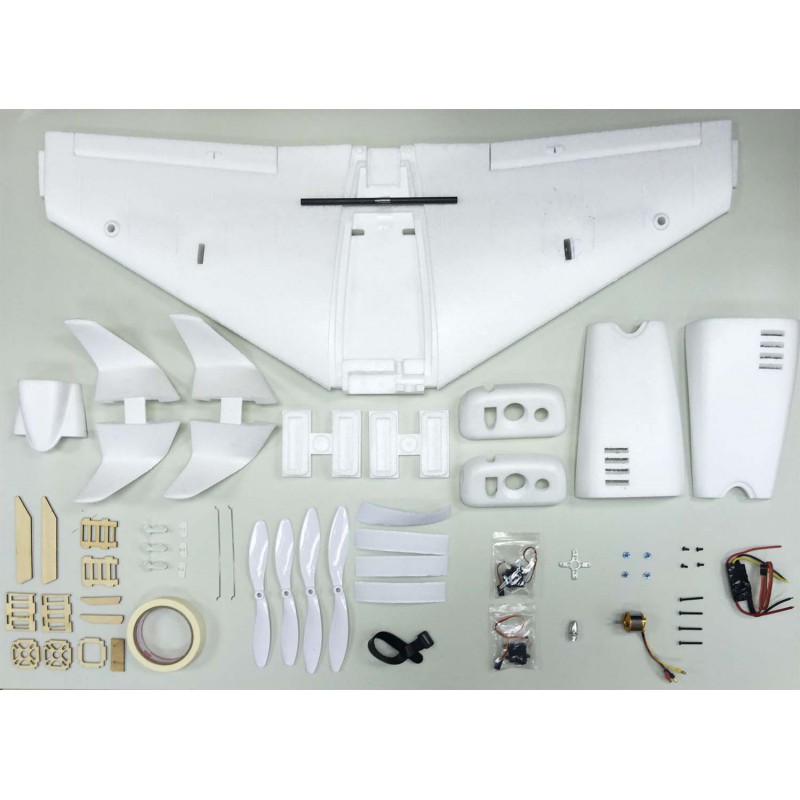

Composition Kit
  • EPO molded parts
  • Wood parts
  • Linkages
  • 2 x 8" propellers
  • 2 x 9" propellers

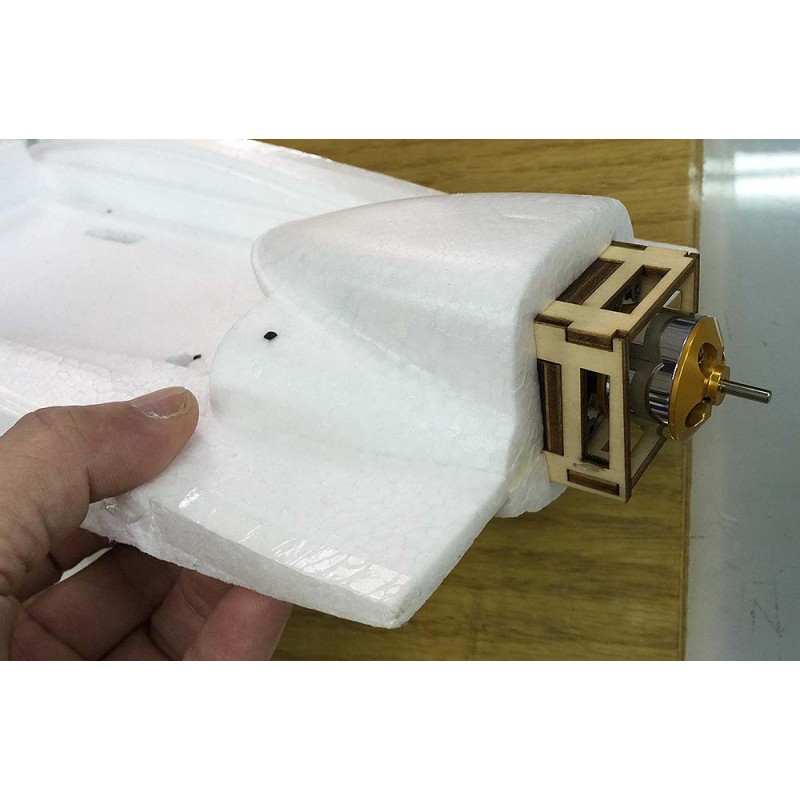

  • Brushless motor Kv 1200
  • 25 A ESC
  • 2 x servos
Datasheet
Downloaden
WINW900x - Handleiding in het Frans en Engels (FR - EN) (1.1M)
