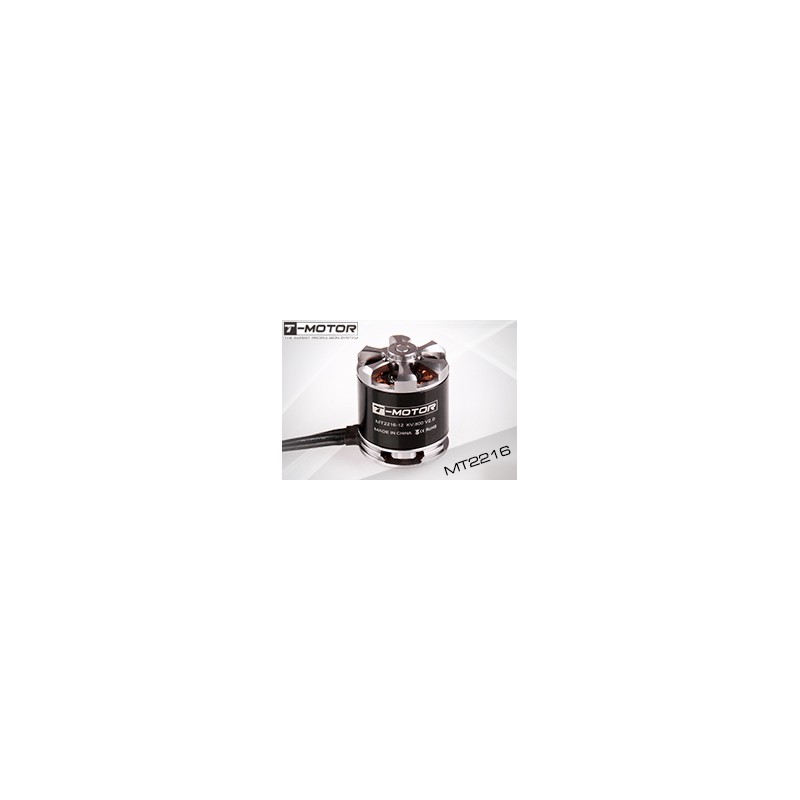

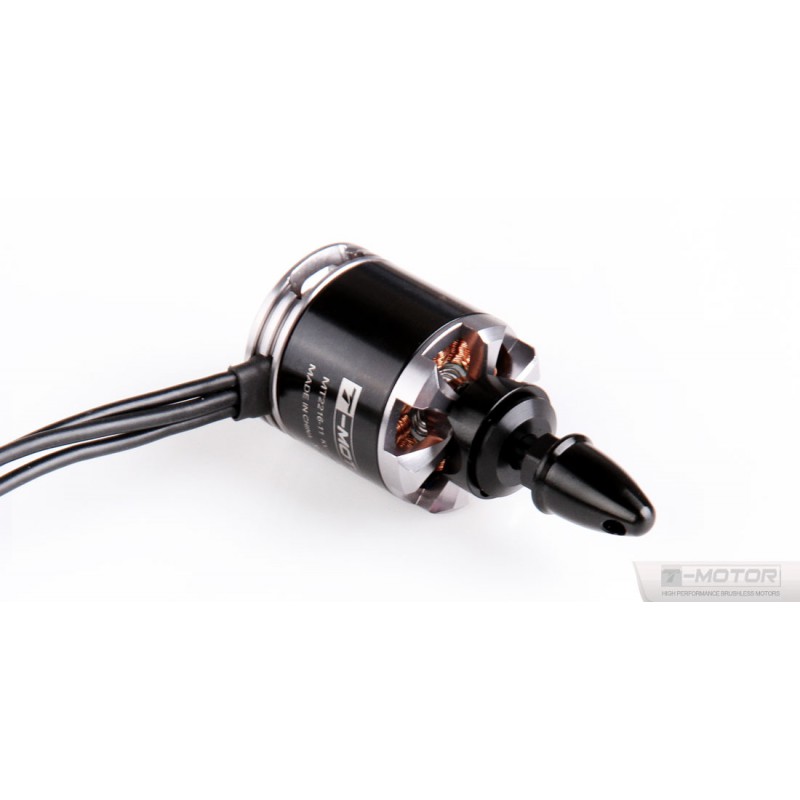

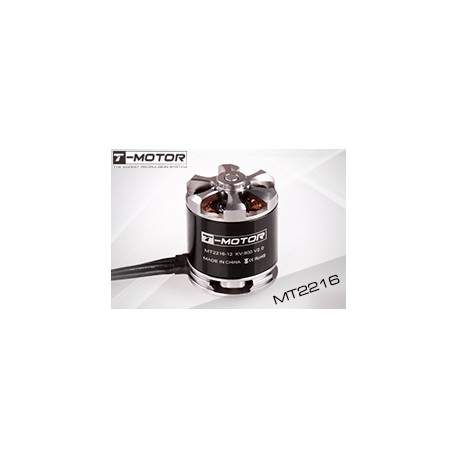

> DISC.. Brushless Motor MT2216-12 (V2) - 800KV
DISC.. Brushless Motor MT2216-12 (V2) - 800KV Bekijk groter

DISC.. Brushless Motor MT2216-12 (V2) - 800KV

TMOMT2216-12

T-Motor

Best choice for upgrading your F450 F550 original motor. Promoting extra payload. Protect your flight safety.

Meer details

Niet in voorraad Dit artikel is niet op voorraad. Toevoeging aan de backorder mogelijk.

45,58 €


Meer informatie

The motors come with higher level EZO bearing to improve life time.

The tight and orderly winding is professional by hand. Compared with the loose winding motor, the instant current would be lower 15%, and the load current would be lower 15%, have higher efficiency and more torque.

X mount, M5 prop adapter and harware included.

Specifications
  • KV : 1100
  • Configuration : 12N14P
  • Stator Diameter : 22 mm
  • Stator Length : 16 mm
  • Shaft Diameter : 4 mm

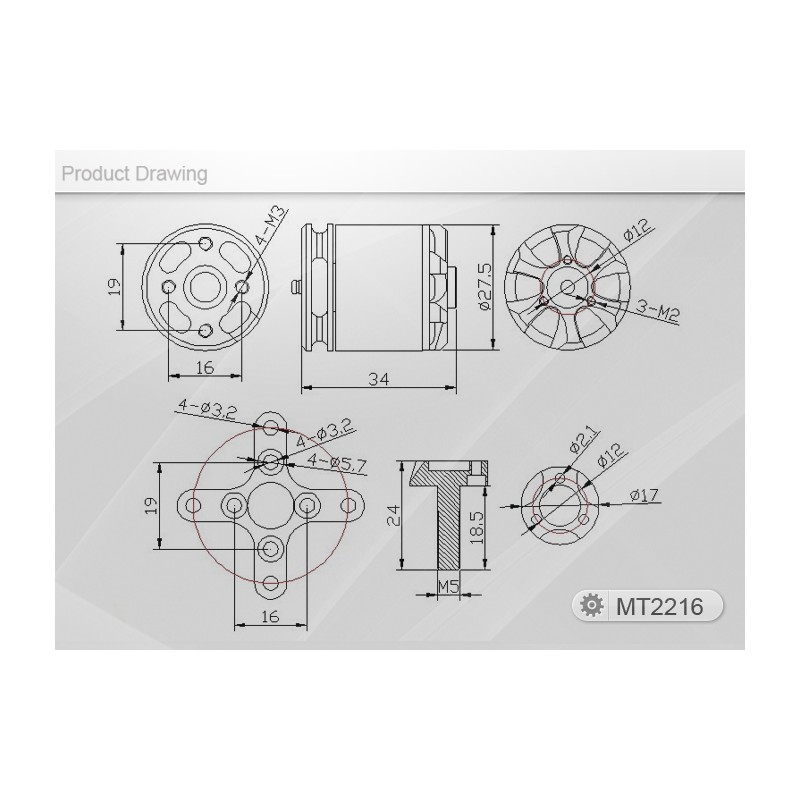

  • Motor Dimensions (Dia.*Len) : Φ27.5 x 34 mm
  • Weight (g) : 75 g
  • ldle current(10)@10v(A) : 0.3 A
  • No.of Cells(Lipo) : 3-4S
  • Max Continuous current(A)180S : 18 A
  • Max Continuous Power(W)180S : 260 W
  • Max. efficiency current : (5-15A)>80%
  • Internal resistance : 175 mΩ

Composition Kit
  • Motor
  • Prop adapter M5
  • X mount
  • Screws
What you need to complete
  • ESC
  • Propeller
  • Battery
Datasheet
  • Manufacturer : T-Motor
