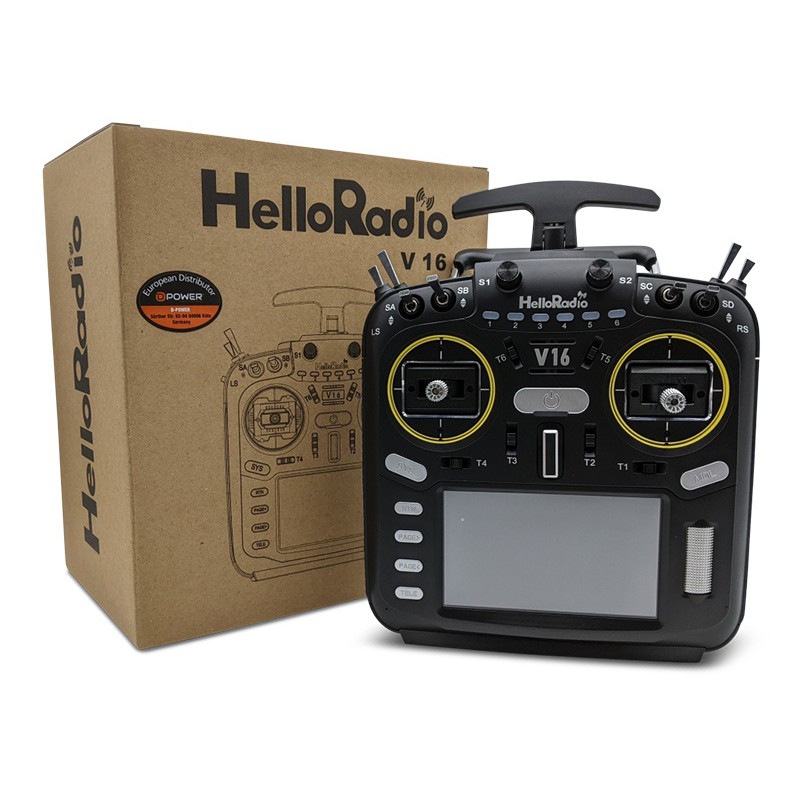

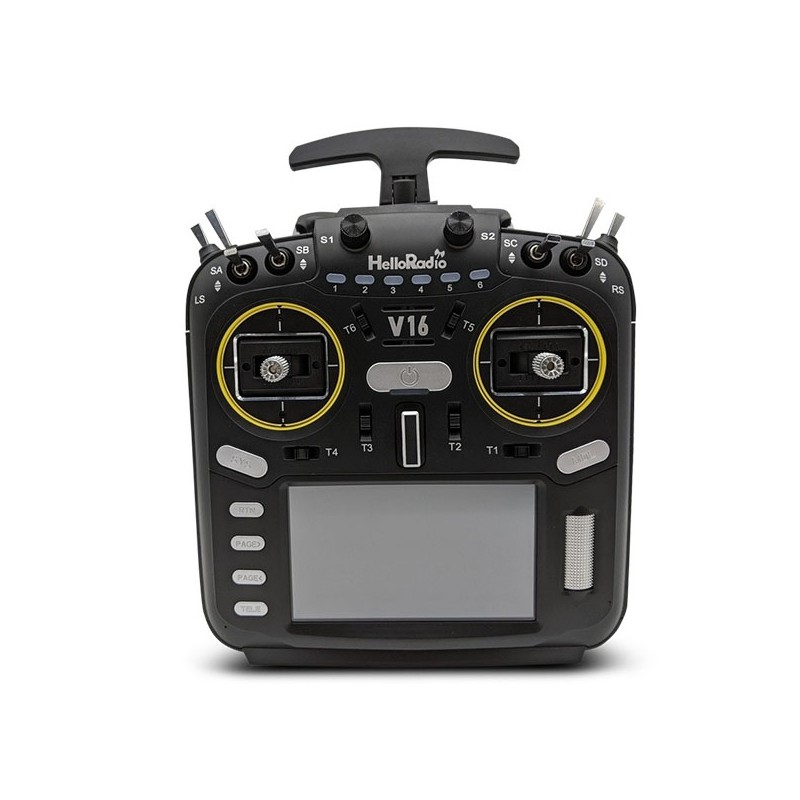

V16 2,4GHz ELRS LBT Radio (Multimode - M2)

Model: HR1000

Manufacturer: HelloRadio

HelloRadio V16 2,4 GHz Transmitter - ELRS LBT - Mode 2

Meer details

Beschikbaarheid: This product is in stock at our warehouse

229,00 €

(Aangeraden verkoopprijs incl. BTW)

Vind uw dichtstbijzijnde Beez2b dealer.

Meer informatie

The state-of-the-art HelloRadio V16 remote control combines sophisticated design with full control functionality. With the EdgeTX open-source system and an LED touch display, it opens up a whole new world of possibilities. Intelligent safety functions, flexible module compatibility and precise motion control ensure you always have full control.

EdgeTX open source system

The V16 has the EdgeTX open source firmware pre-installed. EdgeTX is open-source firmware for remote control transmitters used in radio-controlled (RC) applications such as model aeroplanes, drones, model ships and model vehicles. It is highly customisable, allowing users to configure their transmitters and adjust the settings according to their individual preferences and specific needs.

EdgeTX supports a variety of RC protocols, making it a popular choice in the RC community. Its flexible and powerful features make it a versatile tool for advanced users looking to take their RC activities to the next level.

ELRS radio system

The V16 is available with an integrated ELRS RF module. ExpressLRS (ELRS) is an open-source radio system offering a high update rate and low latency. It is ideal for all RC applications where fast response times are crucial.

T-Antenna:

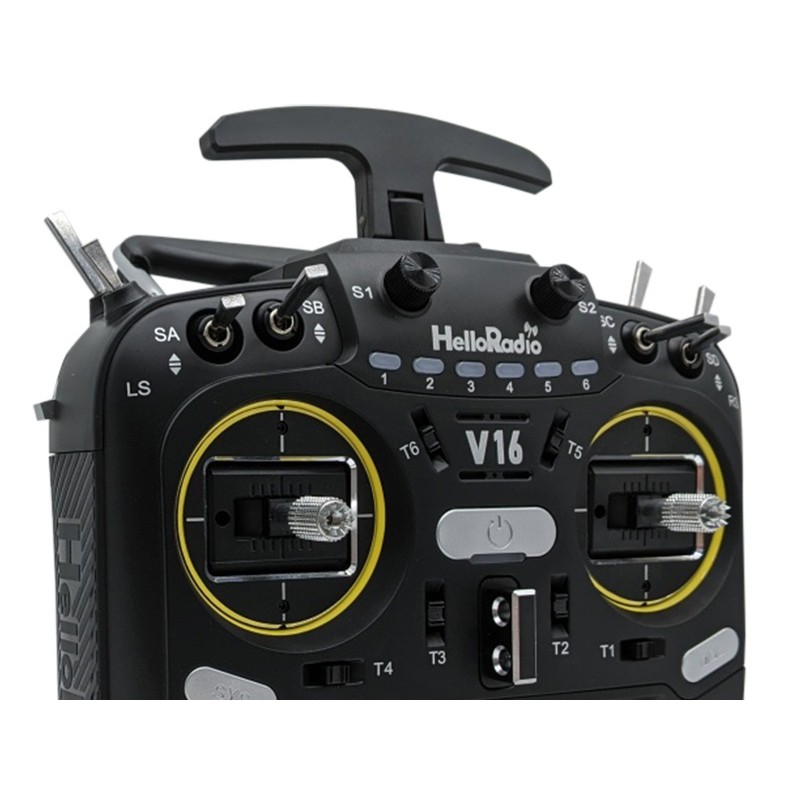

This newly developed, patented design ensures excellent signal quality and increased range. It can also be folded out to serve as a carrying handle.

V16 Versions :

Features	V16	V16 PRO	V16 MAX
Sensor	Hall	Hall	Hall
Gimbals material	Plastic	Plastic	CNC Metal
Internal RF module :	ELRS or 4N1	ELRS or 4N1	ELRS or 4N1
Internal RF module power:	max. 250 mW (LBT max. 100 mW)	max. 1000 mW (LBT max. 100 mW)	max. 1000 mW (LBT max. 100 mW)
Display:	Touchscreen	Touchscreen	Touchscreen
AI Voice Control :	No	Yes	Yes
Movement control :	No	Yes	Yes
Safety features :	No	Yes	Yes
Programmable Stick LEDs	No	Yes	Yes

Key features

EdgeTX open source system

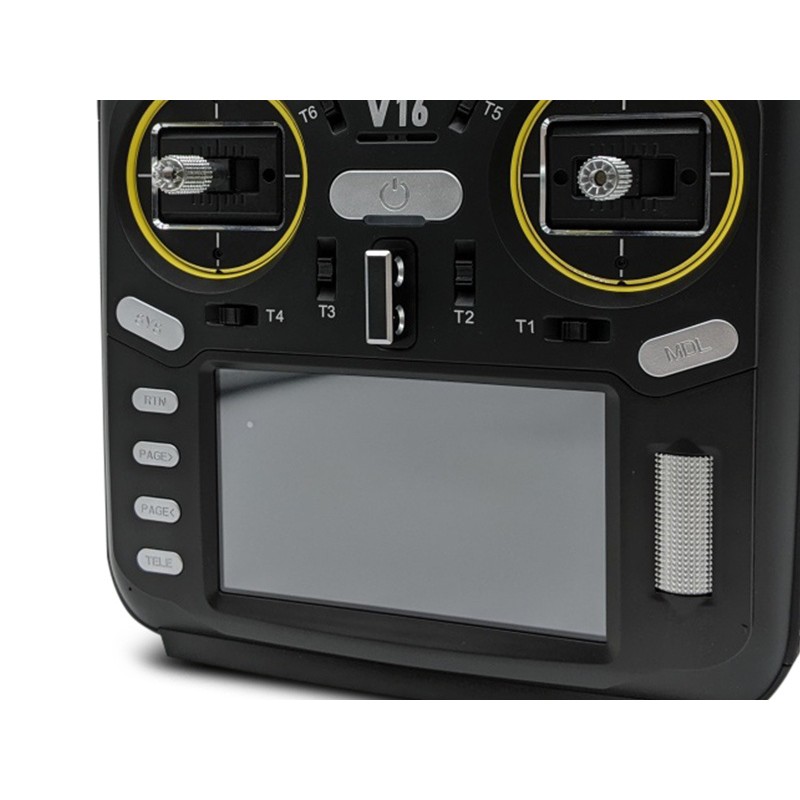

Convenient 4.3 inch IPS touch display
Multimode sticks arrangement - selection between Mode1, 2, 3 or 4
Foldable T-antenna for excellent signal quality
Mode switches 1 to 6 can be defined as required
Internal ELRS HF module
Compatible with external modules with micro JR slot
Dual serial hardware port for communication with the external RF module
Optimized LCD circuit design that frees up memory and CPU resources
Supports ESP32-C3-MINI and XIAO ESP32-C3 Bluetooth modules - offering more possibilities for future applications
Reverse control circuit to support multiple types of external RF modules
Charging circuit automatically stops charging when overvoltage is detected in the battery cells
Protection circuit to prevent damage caused by reverse polarity connection of the power supply
USB-C port for connection to the PC
3.5mm socket for connecting a teacher/student cable
3.5mm socket for connecting headphones
USB-C port for connection to a charging cable
SD card slot with 512MB micro SD card
Serial interfaces for flashing the firmware

Specifications

Dimensions: 286*128*182 mm
Weight: 755g (without battery)
Transmission frequency: 2.400 GHz-2.480 GHz
Internal RF options: ExpressLRS
Transmission power: LBT max. 100 mW
Supported protocols: Module-dependent
Operating current: 450mA
Operating voltage: 6.6-8.4 V DC
Radio firmware: EdgeTX
Channels: 16 channels
Display: 4.3-inch IPS full-color touch panel with a resolution of 480 x 272 pixels
Sensors: Hall
Module slot: Compatible with the following micro JR modules: Multi-protocol modules, Ex-pressLRS, Ghost, TBS Crossfire, TBS Tracer etc.
Update method: Supports USB-C for online update / SD card for offline update
Battery slot: Standard 18650 battery (2 pieces) or HelloRadio TX battery pack
