Platinum 2604SL Motor 1500kV Bekijk groter

Platinum 2604SL Motor 1500kV

HW30416252

Hobbywing

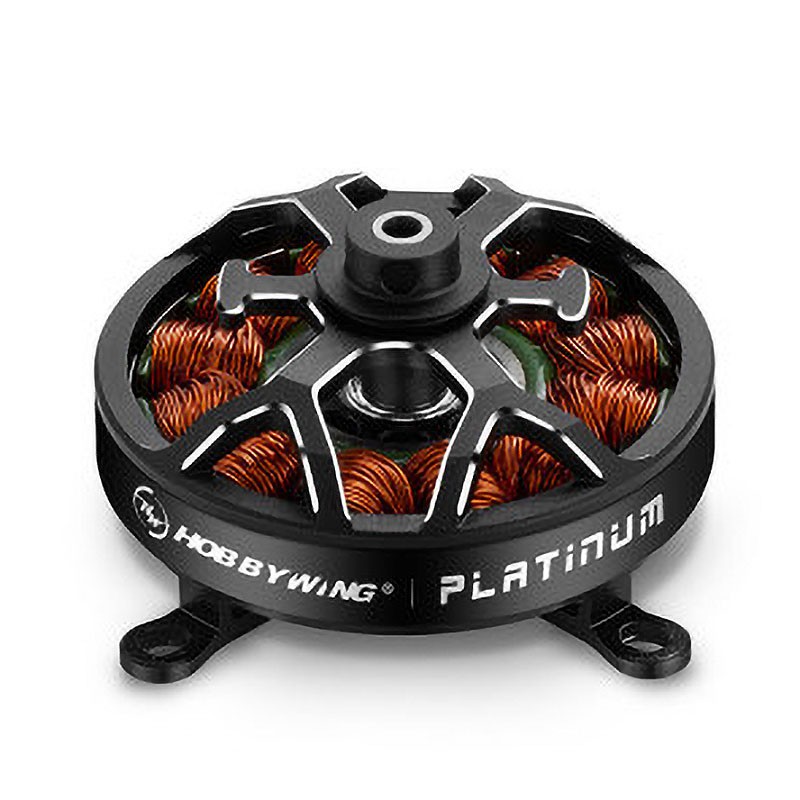

Hobbywing Platinum 2604SL Brushless Motor 1500kV for indoor flying

Meer details

Leverbaar binnen +/- 9 dagen Leverbaar binnen +/- 9 dagen

26,99 €


Meer informatie

The Hobbywing Platinum 2603/2604 is a high-performance brushless motor specifically developed for use in ultra-light F3P and indoor 3D aircraft.

Key features
  • Ultra-light & compact: Optimized for use in F3P and 3D indoor models where every gram counts.
  • High performance: When combined with the Platinum 18A V5 ESC, the motor delivers up to 870?g of thrust, providing an impressive power-to-weight ratio for precise maneuvers.
  • Precise control: Ensures linear power delivery and quick throttle response, which is especially beneficial for demanding flight maneuvers.
Specifications
  • RPM:1500kV
  • No-load current:0.6A/12V
  • Max. current:19A/10s
  • Max. power:229W/10s
  • Max. thrust:877g
  • Resistance:132m?
  • Battery:3S LiPo
  • Dimensions:
    • Motor: D30×H17.2mm
    • Stator: ?26×H3.6mm
  • Mounting:4×D2.1@D33
  • Propeller:TP8038
  • Slots & Poles:12N14P
  • Weight:21.5g
  • ESC:Platinum 18A V5 F3P
Datasheet
  • Manufacturer : Hobbywing
