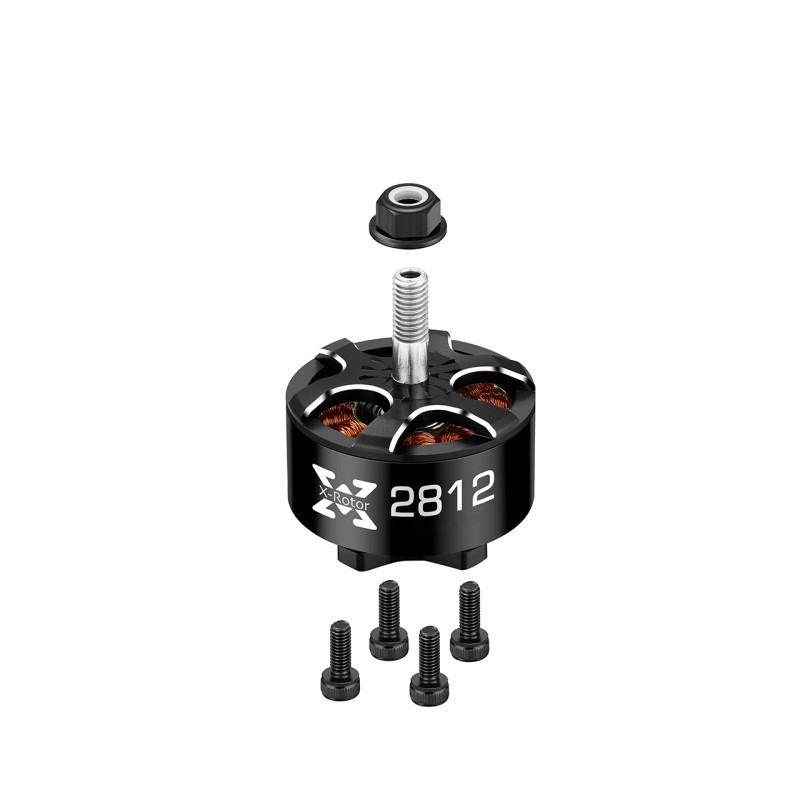

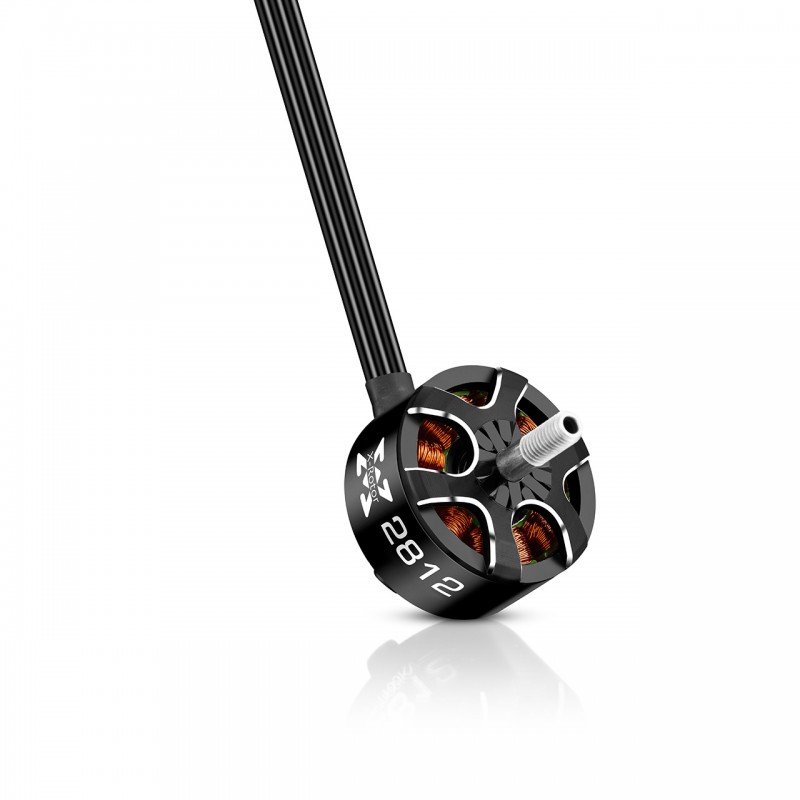

XRotor 2812 D34x25 D5 900kV 6s Lipo

Model: HW30418003

Manufacturer: Hobbywing

Hobbywing brushless motor XRotor 2812 D34x25 D5 900kV 6s Lipo

Beschikbaarheid: Leverbaar binnen +/- 9 dagen

24,99 €

(Aangeraden verkoopprijs incl. BTW)

Vind uw dichtstbijzijnde Beez2b dealer.

FPV Motor

Specifications

Model		XRotor 2812 900KV
Specifications	Product Number	30418003
	KV Rating	900KV
	LiPo Cells（LiPo）	4-6S
	No-Load Current	1.5A/24V
	Maximum Continuous Current	49.6A/9s
	Maximum Continuous Rating	1191W/9s
	Maximum Thrust	3355g
	Motor Weight	83.4g
	Motor Size	Φ34 *25.5mm
	Slot/Pole	12N14P
	Wire Size	18AWG
	Wire Length	250mm
	Enamelled Wire Insulation Class	180℃ High temperature Resistant, F Class insulation
	Internal Resistance	63.9mΩ
	Shaft Diameter	D5+M5
	Shaft Length	15mm
	Screw Diameter / Thread	Φ19mm-4*M3
Recommended	Recommended ESC	Xrotor FPV G2 65A 4in1 ESC
Props/ESCs	Propeller	4-6S:HQ8x4.5x3;
		HQ9x5x3
