> Combo WP16BL30 2435SL-6500KV-G3
Combo WP16BL30 2435SL-6500KV-G3 Bekijk groter

Combo WP16BL30 2435SL-6500KV-G3

HW38030001

Hobbywing

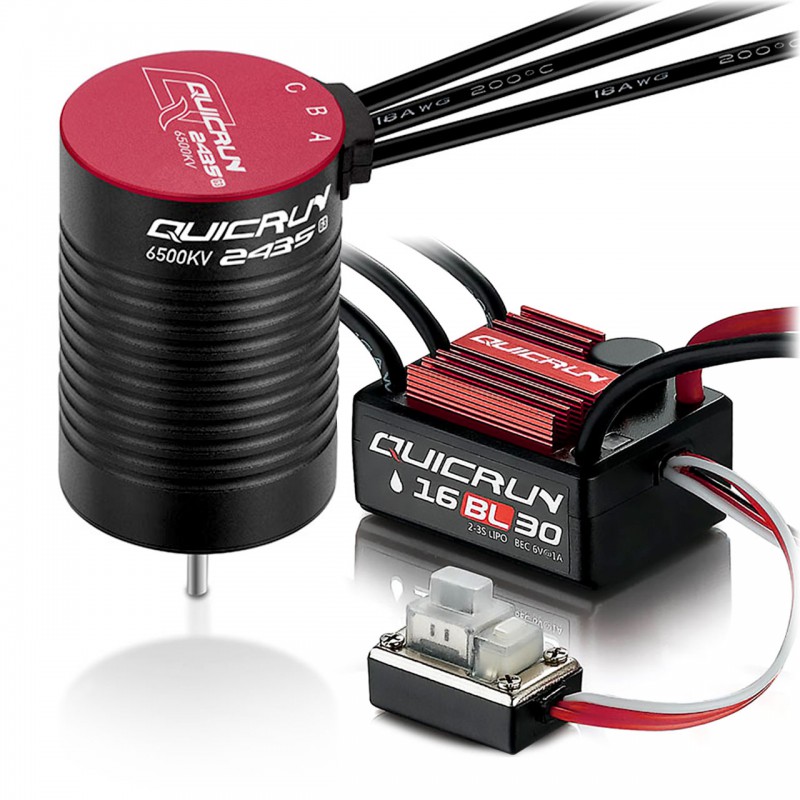

Hobbywing brushless combo WP16BL30 ESC & 2435SL-6500KV-G3 motor

Meer details

En stock, envoi immediat This product is in low stock at our warehouse

60,99 €


Meer informatie

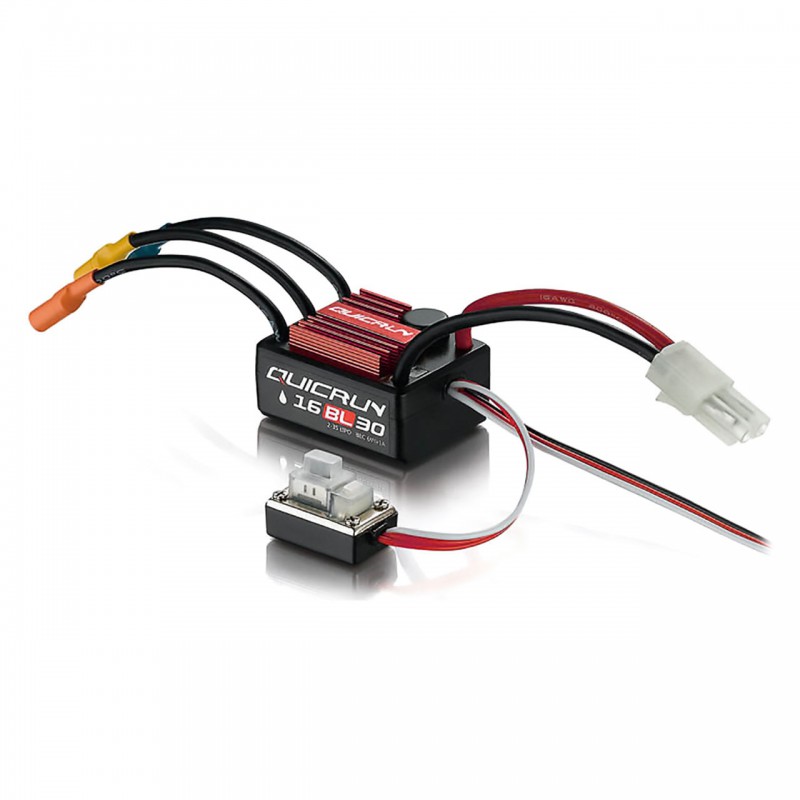

About the WP16BL30 ESC

Easy Operation

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-16BL30 to be used in all weather conditions without any issue of damage  caused to the ESC from water or dust.

High Reliability & Durability

Reliable hardware combined with advanced software technology allows the QUICRUN WP- 16BL30 to not only provide high power output but also overload protection of the ESC circuit.

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Wide Application

This ESC is applicable to all-weather sport of 1/18th, 1/16th scale  touring cars, buggies, trucks, and monster trucks.

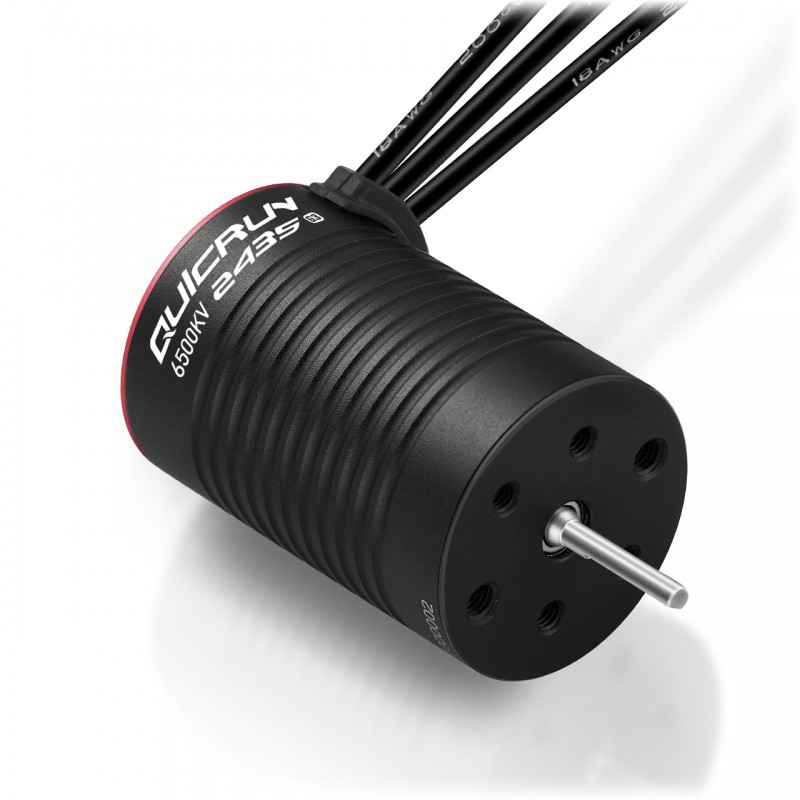

About the QuicRun 2435 SL G3 motor

Stronger power, upgraded to 4-pole rotor
The G3 motor adopts a four-pole rotor design with stronger torque and stronger explosive power.
Better performance
Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.
Upgraded materials, durable
0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant enameled wire, and first-line brand high-precision and high-quality bearings make the motor durable.
Excellentprotection
The output of the motor is sealed with a silicone  rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without having to worry in harsh operating environments such as outdoor sand, stones, and dust
Plug and play, flexible play
The motor output line has been welded with high-quality gold-plated plugs. Plug and play without worrying about soldering.
One "machine" with multiple functions, compatible with a wide range of models
The product is applicable to 1:16 and 1:18 vehicles, from on-road to buggy, short course truck, and monster truck.


Key features
  • QuicRun 2435SL-6500KV-G3 motor
  • WP16BL30 ESC
Specifications

WP16BL30 ESC

Type Scale 1/16th,1/18th
Brushed/Brushless BL
Sensored/Sensorless SL
Waterproof WP
Specifications Cont./Peak Current 30A/180A
Input 2-3S LiPo/6-9 Cells NiMH
BEC Output Linear Mode:6V/1A
Wires & Connectors Input Wires Red-16AWG-75mm*1/Black-16AWG-75mm*1
Output Wires Black-16AWG-75mm*3
Input Connectors Small-sized TAMIYA Connector
3.5 Gold Connector (Female)
ESC Programing via SET Button on ESC Supported
LED Program Box Supported
LCD Program Box Not Supported
WiFi Module Not Supported
OTA Programmer Not Supported
Program Port Program/Throttle Wire
Fan Size No
Voltage Range No
Powered by No
Firmware Firmware Upgrade Not Supported
Size & Weight Size 36.0x28.0x18.0mm
Weight 38g
Applications Motors SL BL Motors/SD BL Motors(only in SL mode)
Vehicles 1/16th,1/18th Touring Cars/Buggies/Trucks/Monster Trucks
KV Rating/T Count 2S LiPo: 1/10th Touring Cars KV≤8000, 1/10th Buggies KV≤5000
3S LiPo: 1/10th Touring Cars KV≤5500, 1/10th Buggies KV≤3500
(2435 Motors)

QuicRun 2435SL KV 6500 G3 motor

Type Scale 1/16th ,1/18th
Brushed/Brushless BL
Sensored/Sensorless SL
Pole Count 4
Relevant Parameters KV Rating 6500
LiPo Cells 2S
No-load Current(A) 3.4
Size & Weight O.D.(mm) 24
Length (mm) 36
Shaft Diameter (mm) 2
Connectors (mm) 3.5(male)
Weight (g) 61.2g
Other Parameters Front Bearing D8*D3*t4
Rear Bearing D8*D3*t4
Applications 1/16th ,1/18th On-road,Off-road
Datasheet
  • Manufacturer : Hobbywing
