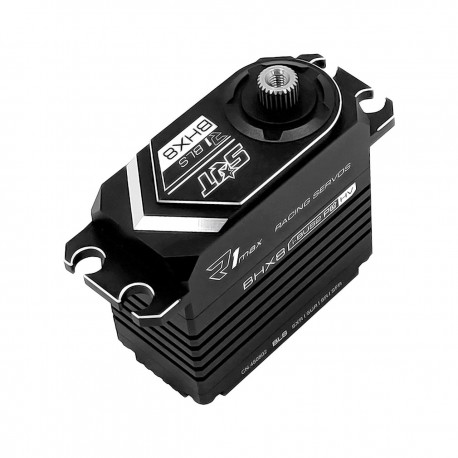

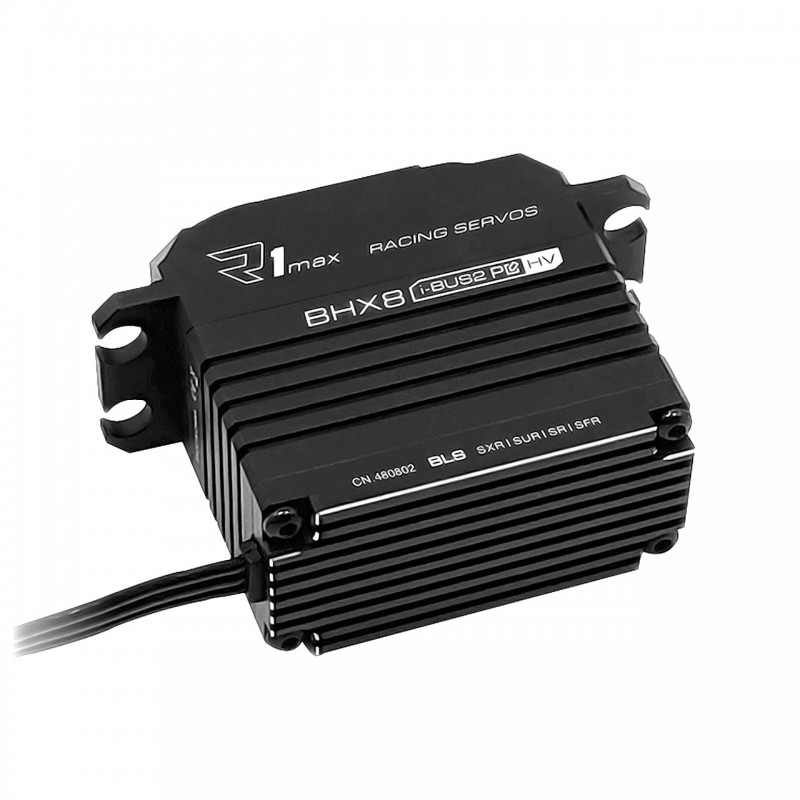

> Servo Brushless HV - High torque i-BUS2 60.0kg/0.07sec @8,4V
Servo Brushless HV - High torque i-BUS2 60.0kg/0.07sec @8,4V Bekijk groter

Servo Brushless HV - High torque i-BUS2 60.0kg/0.07sec @8,4V

SRTBHX8

SRT

BHX8 SRT servo - HV - i-BUS2

Meer details

En stock This product is in stock at our warehouse

131,99 €


Meer informatie

Usage : 1/10 Crawler, 1/8 Nitro Buggy, 1/8 Electric Buggy, 1/8 Crawler, 1/5 Nitro Touring, 1/5 Nitro Buggy

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.


All of SRT servos  are available to be customized for easy installation by OEM order.

Key features
  • Superior Holding Torque
  • Incredible efficiency and low power consumption
  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • Programmable High torque Brushless servo
  • Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
  • 25T output shaft
  • 2 μsec Dead Band
  • 1-Year Limited Warranty
Specifications

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.11 sec/60 degrees at no load
  • operating speed (7.4v): 0.078 sec/60 degrees at no load
  • operating speed (8.4v): 0.07 sec/60 degrees at no load
  • stall torque (6.0v): 50.0kg.cm (694.4 oz/in)
  • stall torque (7.4v): 55.0kg.cm (763.8 oz/in)
  • stall torque (8.4v): 60.0kg.cm (833.2 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
  • weight: 82.0g (2.89 oz)
  • connector wire length: jr 300 mm
Datasheet
  • Manufacturer : SRT
