Platinum F3P 2D Combo 2604SL 1500kV Bekijk groter

Platinum F3P 2D Combo 2604SL 1500kV

HW38060002

Hobbywing

Hobbywing Platinum F3P 2D Combo 2604SL 1500kV for 3D/F3P Indoor aircrafts

Meer details

Niet in voorraad Dit artikel is niet op voorraad. Toevoeging aan de backorder mogelijk.

53,99 €


Meer informatie

Hobbywing 2604 1500 Kv Motor

The Hobbywing Platinum 2604 is a high-performance brushless motor specially designed for ultra-light F3P aircraft and indoor 3D aircraft.

  • Ultra-light and compact: Optimized for F3P and indoor 3D models where every gram counts.
  • High performance: Combined with the Platinum 18A V5 electronic controller, the motor delivers up to 870 g of thrust, offering an impressive power-to-weight ratio for precise maneuvers.
  • Precise control: Ensures linear power output and fast throttle response, particularly advantageous for demanding flight maneuvers.

Platinum 18A V5 F3P Controller

The Hobbywing Platinum 18A V5 F3P is an ultra-compact, high-performance controller designed specifically for indoor F3P and 3D models. Weighing less than 4 g, it offers exceptional performance in a compact package.

  • Weight less than 4 g
  • 32-bit microcontroller with proprietary algorithm, delivering 18 A continuous current and 30 A peak current
  • Easy switching between 3D and 4D modes by programming the transmitter stick
  • Perfectly suited for Platinum 2603 and 2604 motors
Specifications

Hobbywing 2604 1500 Kv Motor

  • Kv: 1500 kV
  • No-load current: 0.6 A/12 V
  • Max. current: 19 A/10 s
  • Max. power: 229 W/10 s
  • Max. thrust: 877 g
  • Resistance: 132 ohms
  • Battery: LiPo 3S
  • Dimensions:
    • Motor: 30 × H 17.2 mm
    • Stator: 26 × H 3.6 mm
  • Mounting: 4 × 2.1 to D33
  • Propeller: 8 x 3.8"
  • Winding: 12N14P
  • Weight: 21.5 g

Platinum 18A V5 F3P ESC

  • Type: Brushless
  • Current (continuous/peak): 18 A/30 A
  • Number of cells: LiPo 3-4 S
  • BEC: 5.5 V / 4 A/6 A (switching mode)
  • Cables:
    • Input: Red - 18 AWG - 100 mm *1 / Black - 18 AWG - 100 mm *1
    • Output: Black - 20 AWG - 100 mm *3
  • Output connector: 2.0 mm gold-plated connector (female)
  • Programming: LCD, OTA
  • Firmware update: Yes
  • Dimensions: 24.6 x 12.8 x 7.5 mm
  • Weight (including cables): 11.9 g
  • Application: 120 to 320 g F3P aircraft

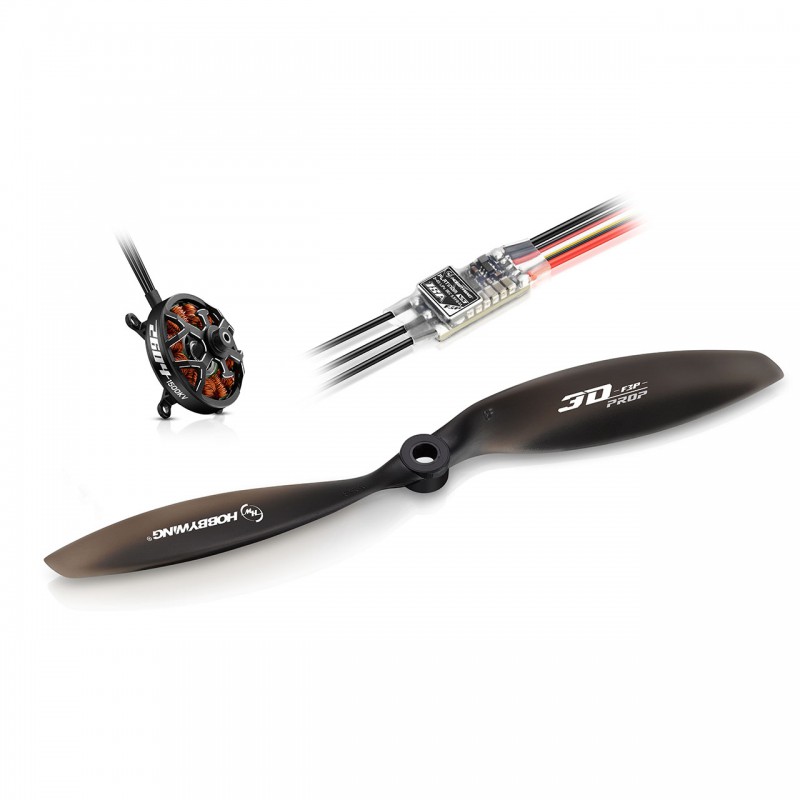

Composition Kit
  • 1 x 2604SL 1500Kv motor
  • 1 x Platinum 18A V5 F3P ESC
  • 3 x 2 mm PK plugs
  • 4 x screws
  • 1 x TP8038-PC propeller
  • Prop saver rubber bands
Datasheet
  • Manufacturer : Hobbywing
